Sprinter Side Wall Mounting Plate & L-Track Kit
Couldn't load pickup availability
Sprinter side wall mounting plate & L-Track kit that converts the wall panels into a structural foundation of load bearing anchor points for beds, overhead cabinetry, and wall mounted gear.
Key Features:
- Structural foundation system for 2019+ Mercedes Sprinter High Roof interior builds
- Converts factory sheet metal into reinforced, load bearing anchor points
- Built to support beds, overhead cabinets and other wall mounted components

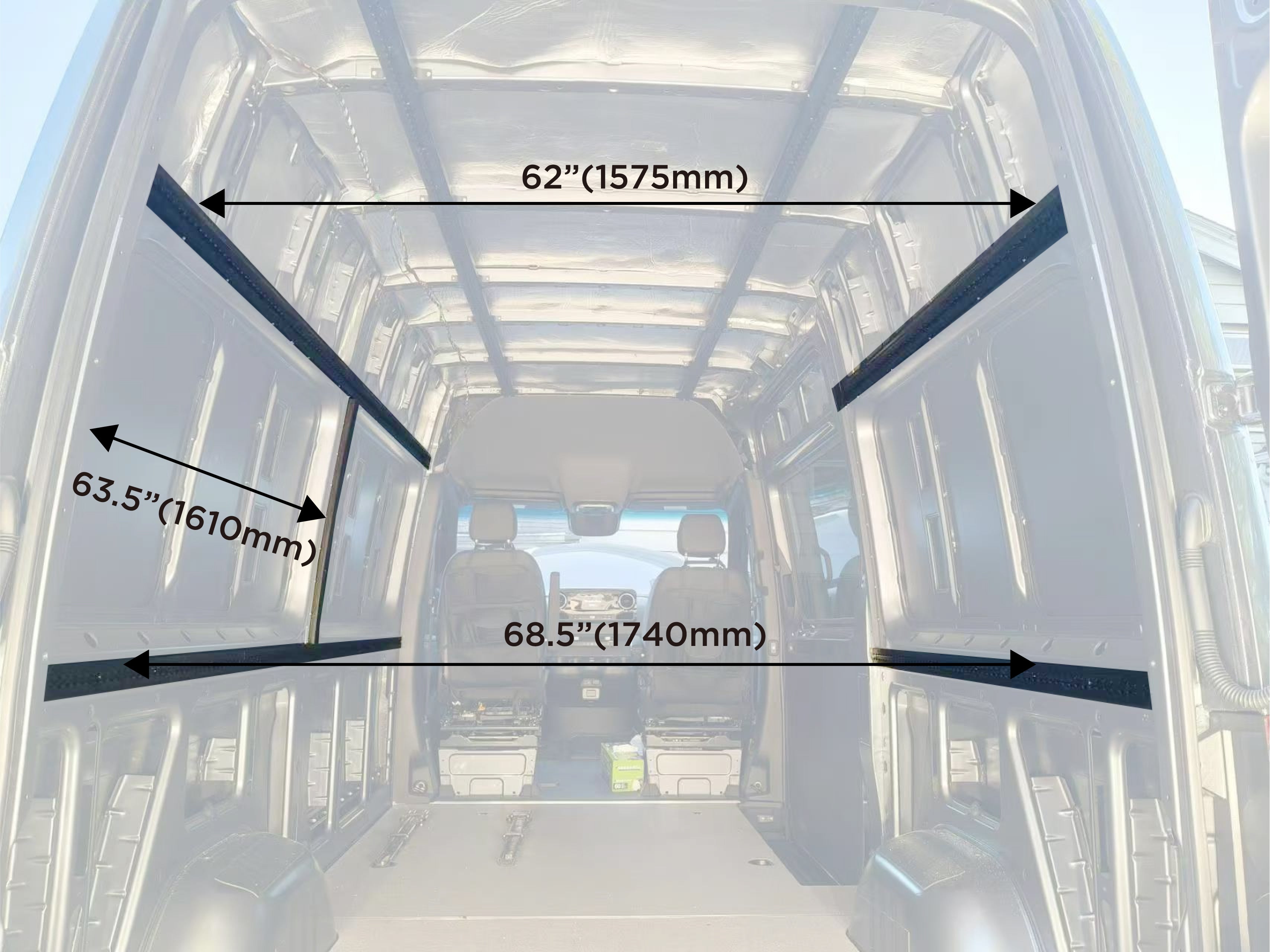

- Full length kit coverage for continuous mounting points across the van interior
- Standardized structural mounting zones for consistent, repeatable builds
- Streamlined design for easy solo installation
- Rated for up to 77 lb (35 kg) at a single mounting point and up to 441 lb (200 kg) distributed across the full plate
- Load spreading mounting plates reduce panel flex and pull through
- Mounting plates labeled in install sequence for optimal workflow
- Pre drilled mounting plates eliminate layout guesswork and misaligned installs
- Integrated rivnuts provide fixed threads and prevent spin jam issues for faster assembly
- 6061-T6 aluminum L-Track for heavy duty mounting applications
- Premium anodized surface finish for superior corrosion resistance
- Universal L-Track profile compatible with standard single double stud fittings and accessories
Description:
This side wall mounting plate & L-Track kit is a structural foundation system built specifically for 2019+ High Roof Sprinter interiors. It converts factory sheet metal into reinforced, load bearing anchor points for secure mounting of heavy components. The result is a rigid backbone for wall systems and overhead cabinetry, with full length coverage and continuous mounting points across the van interior. Standardized structural mounting zones support consistent, repeatable installs across multiple builds.
Load spreading mounting plates reduce panel flex and pull through under real road loads. Each mounting plate is pre drilled to eliminate layout guesswork and misaligned installs, and labeled in install sequence to keep workflow fast and predictable. Integrated rivnuts provide fixed threads that prevent spin jam issues and speed up assembly.
The system comes with 6061-T16 aluminum L-Tracks that provide great rigidity and tensile strength. Their universal L-Track profile is compatible with standard single and double stud fittings and accessories, providing a modular mounting platform for a wide range of conversion hardware.
FAQ:
1. Is the kit compatible with Standard Roof models or Passenger Van Sprinters?
No. This kit is designed exclusively for 2019+ Mercedes-Benz Sprinter Cargo Vans with the High Roof configuration.
2. Can L-tracks be installed on the vertical frames?
L-tracks can be installed on the vertical frames but we do not recommend it. The vertical frames already have multiple mounting points that allow you to bolt accessories directly to them, so adding L-track provides very little additional benefit.
It can also affect the overall appearance. Since the L-track sits higher than the mounting plates, the transition where the horizontal plates meet the vertical frames will no longer sit flush and may look uneven.
