Roof
Systems
for Sprinter
A complete roof platform for 2007+ Mercedes-Benz Sprinter high roof vans. Modular roof rack, direct fit roof rails, low profile roof fan, and a full set of roof bars and accessories — built around the same hardware standard.
Roof Rack,
Rails, Fan,
and Bars
Pick the parts that fit the build. Rails for a clean factory mount. The modular rack for a full size platform. The three piece bar set when a smaller carry is enough, or the brushless vent fan when summer makes airflow non negotiable.
One Platform,
Many Loadouts

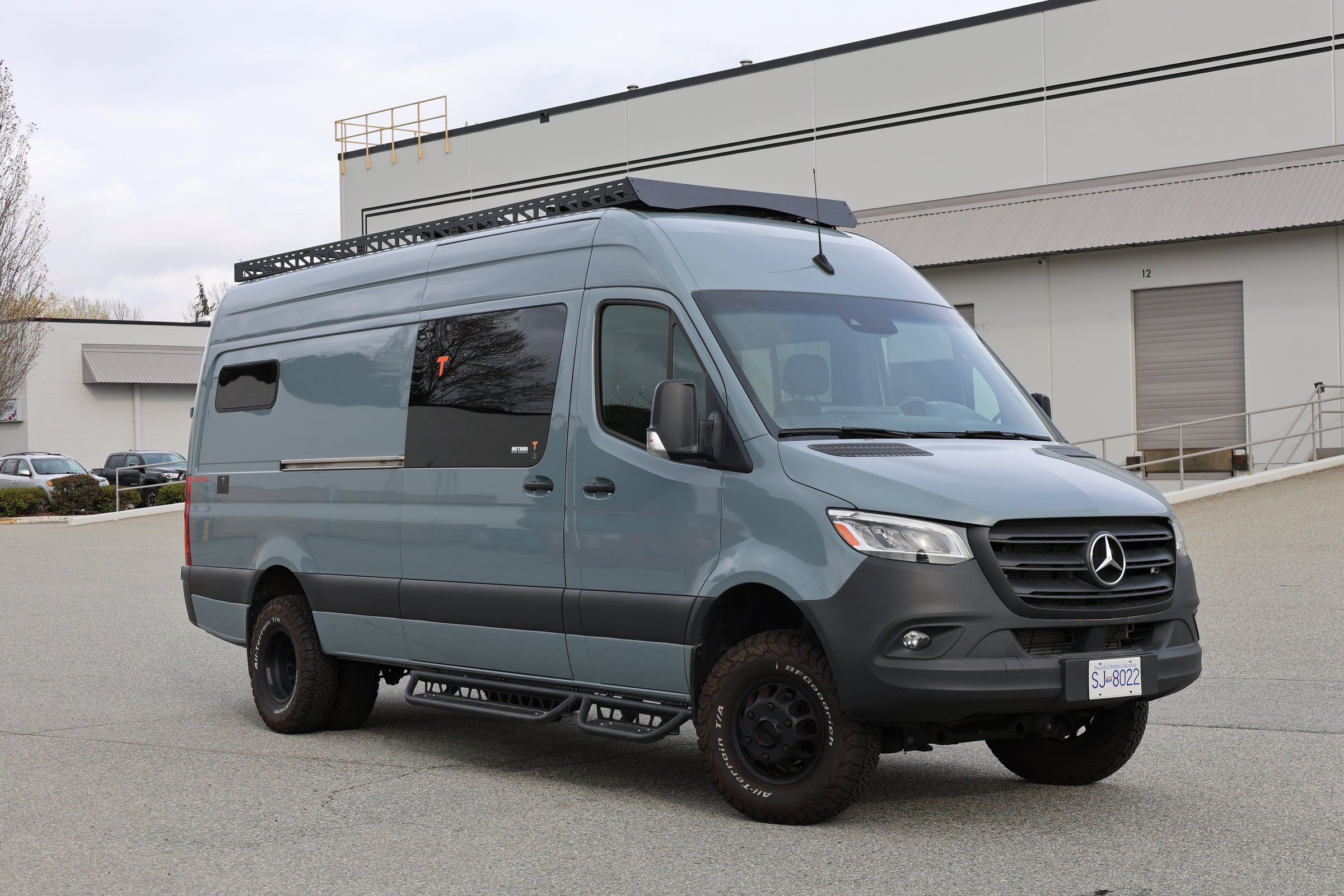

Sprinter Modular Roof Rack
Heavy duty molded aluminum roof platform with repositionable crossbars. Aerodynamic front fairing, laser cut sidewalls, double thickness corners. Compatible with decking, solar panels, and Fiamma awnings. Requires factory or Tec Vanlife roof rails (sold separately).
- SKUE-RR-T-SP-144
- MaterialMolded aluminum
- 144″ Length132.25″ (3,360 mm) · 56 lb
- 170″ Length173″ (4,400 mm) · 72 lb
- Outside Width53.34″ (1,355 mm)
- Crossbar52.95″ (1,345 mm) · 8020 extrusion
- Load Rating Per Bar100 lb (45 kg)
- Compatibility2007+ Sprinter 144″ / 170″ High Roof
| Material | Pressure molded aluminum · single piece side profiles |
| 144″ Frame Length | 132.25″ (3,360 mm) · 56 lb (25.4 kg) |
| 170″ Frame Length | 173″ (4,400 mm) · 72 lb (32.6 kg) |
| Rail Profile Height | 5″ (128 mm) |
| Outside Width | 53.34″ (1,355 mm) |
| Crossbar Length | 52.95″ (1,345 mm) |
| Internal Solar Width | 51.77″ (1,315 mm) |
| Load Rating Per Bar | 100 lb (45 kg) |
| Install | ~2 hr, single person, hex wrenches & 13 mm wrench |
| Compatibility | 2007+ Mercedes-Benz Sprinter 144″ / 170″ High Roof |
| Accessory Compatible | Decking, Fiamma F45 awnings, and solar mounts |
No drilling.
Direct fit aluminum extrusion rails for the Sprinter roof. The mounting base for roof rack, roof bars, and any aftermarket equipment.
Sprinter
Roof Rails
Heavy duty aluminum extrusion mounting system for 2007+ Sprinter vans. Direct fit kit that mounts to factory roof holes — no drilling required. The rigid base for roof racks, solar panels, lighting, and rooftop accessories. Available in 144″, 170″, and 170″ Extended; anodized black or satin silver.
Sprinter Roof Rails
Direct fit aluminum extrusion roof rails for 2007+ Sprinter vans. Mount to factory roof holes, no drilling required. The mounting base for the Modular Roof Rack, Roof Bar Set, and aftermarket rooftop equipment.
- SKUE-LB-T-RR-144
- MaterialAluminum extrusion
- Width1.26″ (32 mm)
- 144″ Length114.6″ (2,910 mm)
- 170″ Length152.0″ (3,860 mm)
- FinishesAnodized Black, Satin Silver
- Install~30 min, two people, no drilling
- Compatibility2007+ Mercedes-Benz Sprinter 144″ / 170″
| Material | Heavy duty aluminum extrusion |
| Profile Width | 1.26″ (32 mm) |
| 144″ Rail Length | 114.6″ (2,910 mm) |
| 170″ Rail Length | 152.0″ (3,860 mm) |
| Size Options | 144″, 170″, 170″ Extended |
| Finish Options | Anodized Black, Satin Silver |
| Mounting | Factory roof holes — no drilling |
| Hardware Included | Bolts, washers, weather strips |
| Install | ~30 min, two people, standard tools |
| Compatibility | 2007+ Mercedes-Benz Sprinter 144″ / 170″ |
29 dB at Low Speed.
Brushless DC roof fan for standard 14″ openings. Reversible airflow, 10 speed levels, integrated thermostat and remote control.
PLUS Brushless Roof Fan with Remote Control
Efficient brushless DC roof fan that drops into a standard 14″ × 14″ opening. ~3000 m³/h ventilation capacity, 10 reversible speeds, automatic temperature mode, blackout blind, insect screen, and dual LED interior lights. Touchscreen plus wireless remote.
- SKUE-HW-Z-PBF-BL
- Voltage12 V DC
- MotorBrushless DC
- Airflow~3000 m³/h
- NoiseFrom 29 dB
- Speeds10 levels · reversible
- Opening14″ × 14″ (355 mm) standard
- ControlTouchscreen · wireless remote
| Voltage | 12 V DC |
| Motor Type | Brushless DC |
| Airflow Capacity | ~3000 m³/h |
| Noise Level | From 29 dB |
| Speed Levels | 10, reversible |
| Auto Mode | Integrated thermostat |
| Lighting | Dual 2 W LED interior lights |
| Opening Size | 14″ × 14″ (355 mm) standard |
| Includes | Wireless remote, insect screen, blackout blind |
| Control | Touchscreen interface · wireless remote |
one T slot.
Three piece bar set that clamps to existing roof rails. 1.5″ T slot extrusion accepts solar mounts, awning brackets, and accessory hardware.
Tec Vanlife
Sprinter
Roof Bar Set
Three piece roof bar set for 2007+ Mercedes Sprinter High Roof vans with roof rails. High strength extruded aluminum with a textured black powder coat finish. Standard 1.5″ T slot profile. Drill free clamp install.
Tec Vanlife Sprinter Roof Bar Set (3pc)
Three piece roof bar set that bridges existing roof rails on 2007+ Sprinter High Roof vans. High strength extruded aluminum with reinforced corner brackets. Textured black powder coat. 1.5″ T slot profile for solar mounts, Fiamma awnings, and accessories.
- SKUE-RR-T-RB-S
- MaterialExtruded aluminum · powder coat
- Useable Width52″ (1,325 mm)
- Frame Height5 1/8″ (130 mm)
- Under Bar Clearance2 3/8″ (60 mm)
- Profile1.5″ × 1.5″ T slot (38 mm)
- Load Rating Per Bar100 lb (45 kg)
- Compatibility2007+ Sprinter 144″ / 170″ with roof rails
| Material | High strength extruded aluminum |
| Finish | Textured black powder coat |
| Useable Width | 52″ (1,325 mm) |
| Frame Height | 5 1/8″ (130 mm) |
| Under Bar Clearance | 2 3/8″ (60 mm) |
| Cross Bar Profile | 1.5″ × 1.5″ (38 mm) T slot |
| Load Rating Per Bar | 100 lb (45 kg) |
| Set | 3 piece roof bar set |
| Mounting | Clamps to roof rails — no drilling |
| Compatibility | 2007+ Mercedes-Benz Sprinter 144″ / 170″ High Roof with roof rails |
| Awning Compatible | Fiamma F45 |
the rack.
Decking panels, solar panel brackets, and a Starlink Mini mount — designed to drop straight into the rack’s 8020 crossbars and the Roof Bar T slot.
Decking,
Solar, and
Starlink
Addons that share the same hardware standard as the rack and bars. Drop the decking panels in for a flat work surface, mount solar panels on universal aluminum brackets, or secure a Starlink above the cab.
Decking System For Modular Roof Racks
3/16″ aluminum decking panels with a black powder coat finish. CNC laser cut slots double as drainage and tie down anchors. Modular — run a single panel for a fan platform or several side by side for a full work deck. Mounting hardware included.
- SKUE-RR-T-MR-DS-2PC
- Panel Size27″ × 17″ (686 × 432 mm)
- Thickness3/16″ (4.8 mm)
- Weight8.5 lb per panel
- MaterialHigh strength aluminum · powder coat
- FitmentTec Vanlife Modular Roof Rack
- HardwareMounting hardware included
Roof Rack / Rail Solar Panel Mounting Bracket (Set of 4)
Four piece bracket set for securing solar panels to roof racks or roof rails. 1/4″ powder coated aluminum with slotted holes for adjustment. Three step install with T nuts and the included bolt hardware. Universal to standard rack channels and rail profiles.
- SKUE-HW-Z-SPB
- Material1/4″ powder coated aluminum
- Quantity4 brackets per set
- Hardware8 × M6 × 16 bolts · 8 × 3030 T nuts
- FitmentRoof racks · roof rails (universal)
Starlink Mini Mount
Powder coated stainless steel mount that drops the Starlink Mini onto a van roof or roof rack. Adjustable angle for signal and drainage. Dual locking mechanism. Versatile mounting legs fit different roof rack types. Designed for the original kickstand — 2024+ Starlink Mini may need additional drilling.
- SKUE-HW-T-STAR-MM
- MaterialPowder coated stainless steel
- Dimensions17.5″ × 12.5″
- LockingDual locking mechanism
- CompatibilityOriginal Starlink Mini kickstand
- MountingRoof or roof rack · multiple rack types
