Sprinter Exterior Mounting Systems

Exterior
System
for Sprinter

Rear door and roof access systems for 2019+ Mercedes-Benz Sprinter vans with 180° rear door hinges. Aluminum tire ladder carriers, no drill gear racks, and weather sealed storage boxes for skis, snowboards, and oversized gear.

No Drill
Install Options
180°
Rear Door Hinges
2019+
Sprinter Compatible

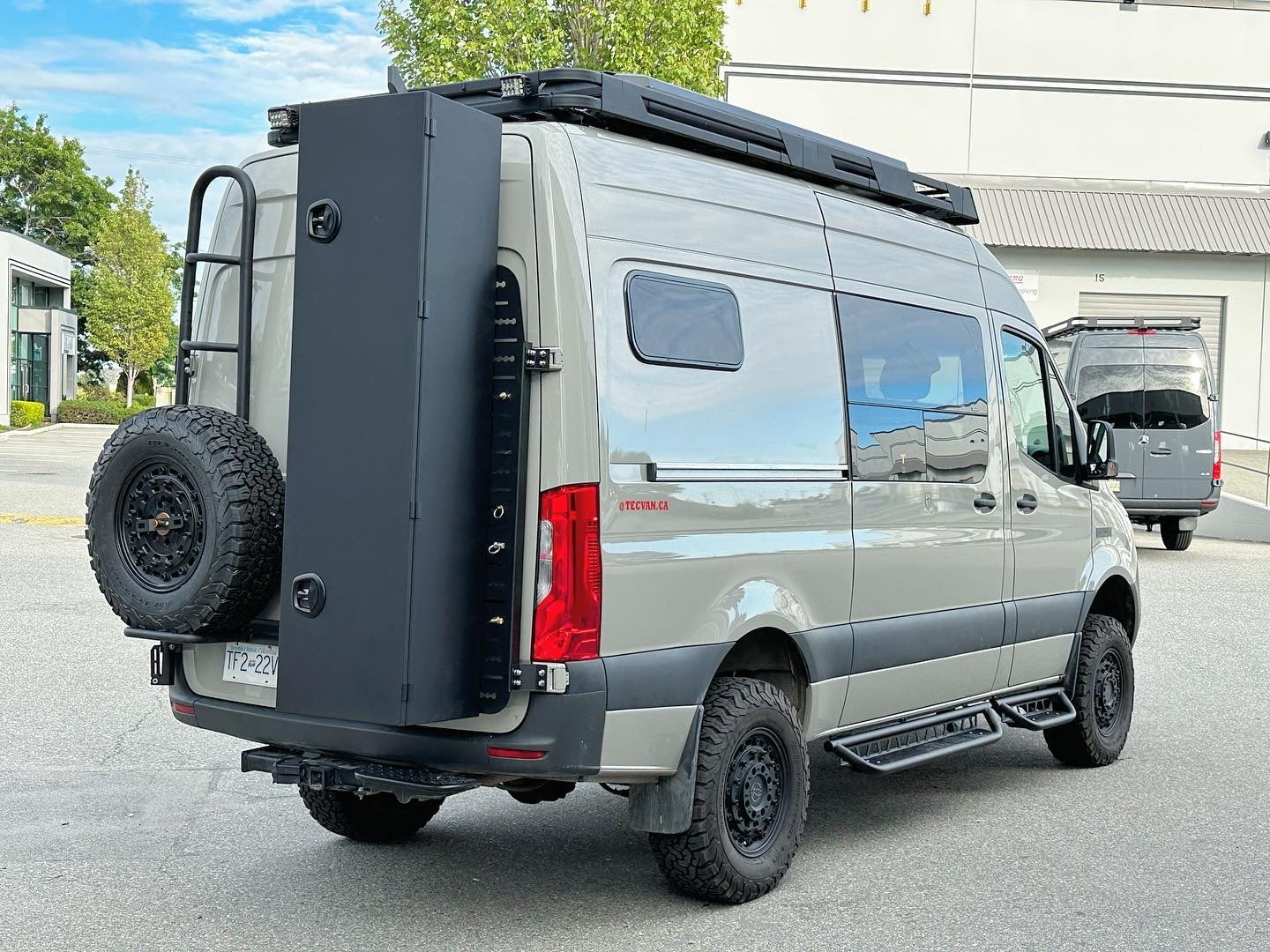

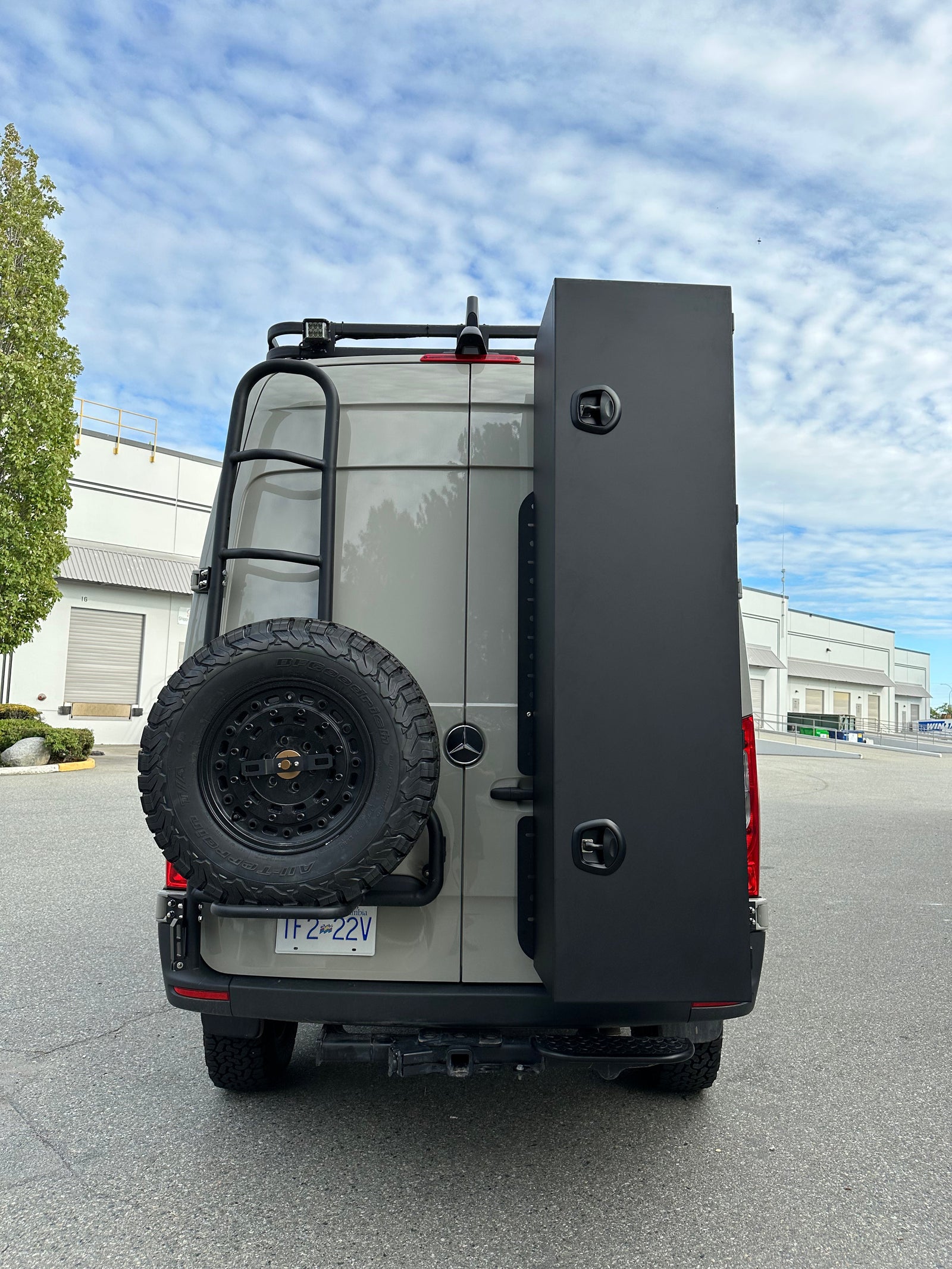

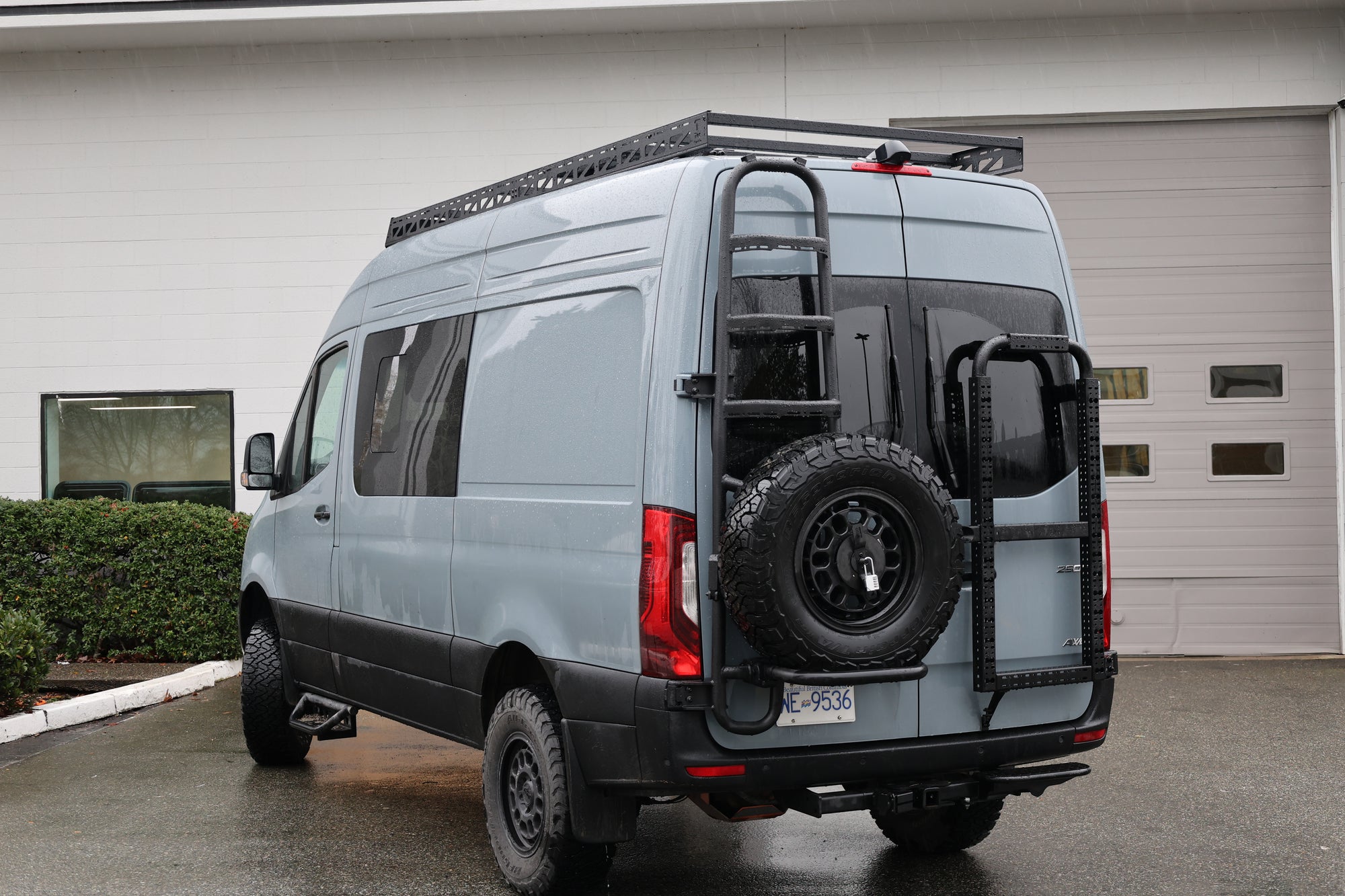

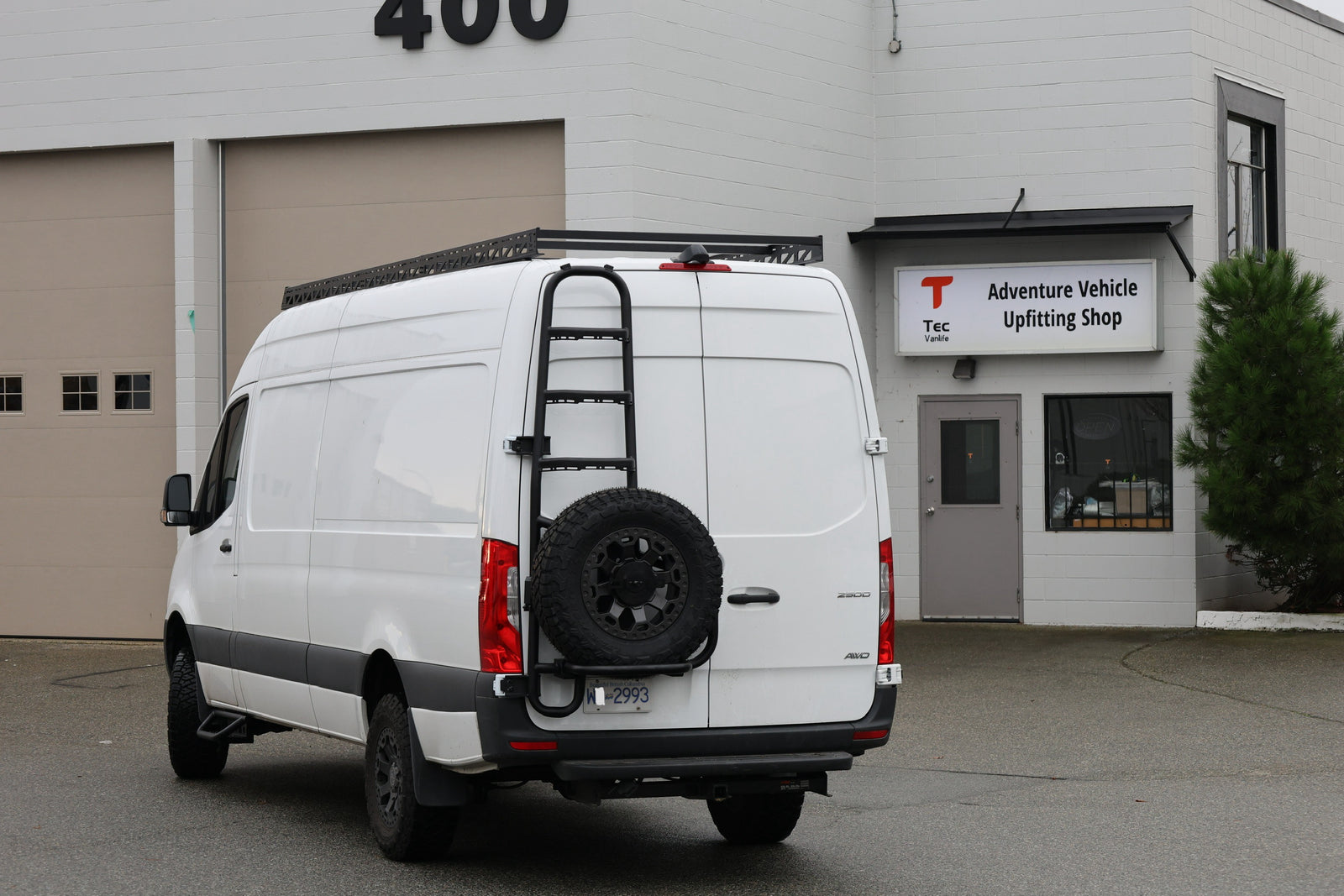

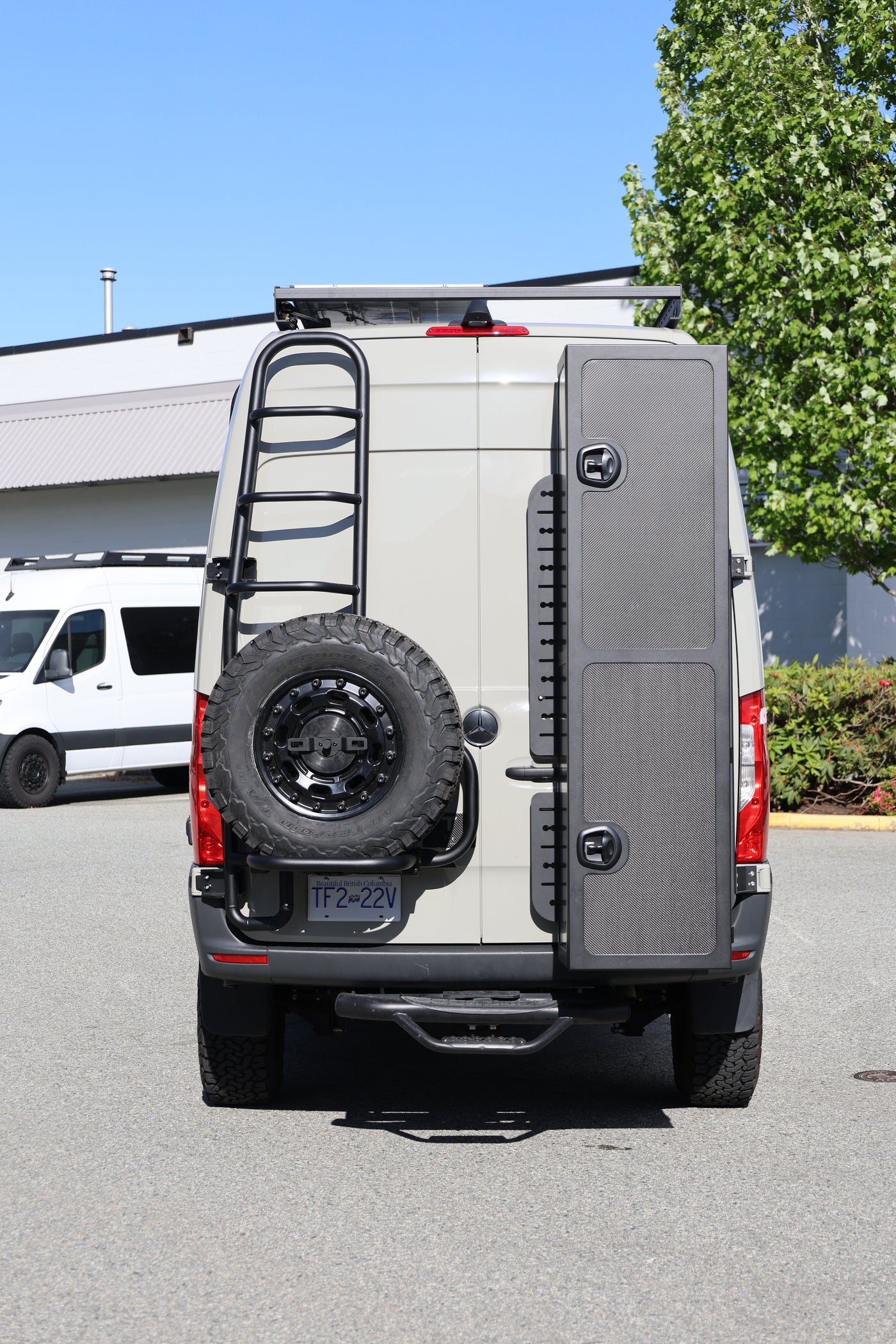

Sprinter Two-in-One Tire Ladder Carrier — installed
Four Core Components

Tire Carrier,
Gear Rack,
and Storage

A complete kit for 2019+ Sprinter rear doors. Roof access and a full size spare carrier in one unit, an aluminum gear rack base for the passenger side, and two storage boxes built for the rack — aluminum or carbon fiber.

Two-in-One Tire Ladder Carrier
01 — Tire Ladder

Two-in-One
Tire Ladder Carrier

Rear door ladder and full size spare tire carrier in a single aluminum unit. Reinforced with stainless steel.

No Drill Gear Rack
02 — Gear Rack

Rear Door
Aluminum Gear Rack

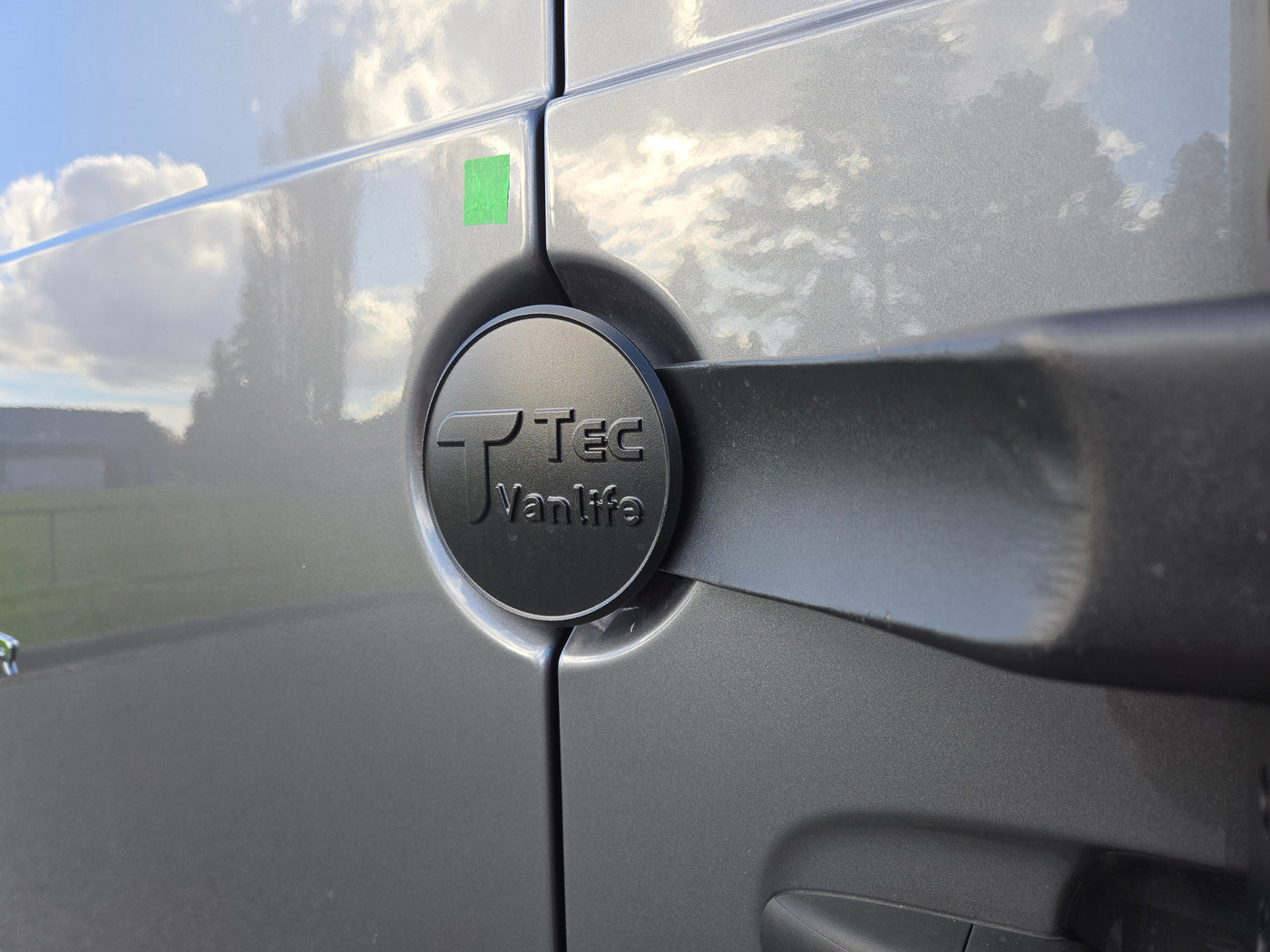

No drill rear door rack. Mounts to factory hinges and OEM badge openings.

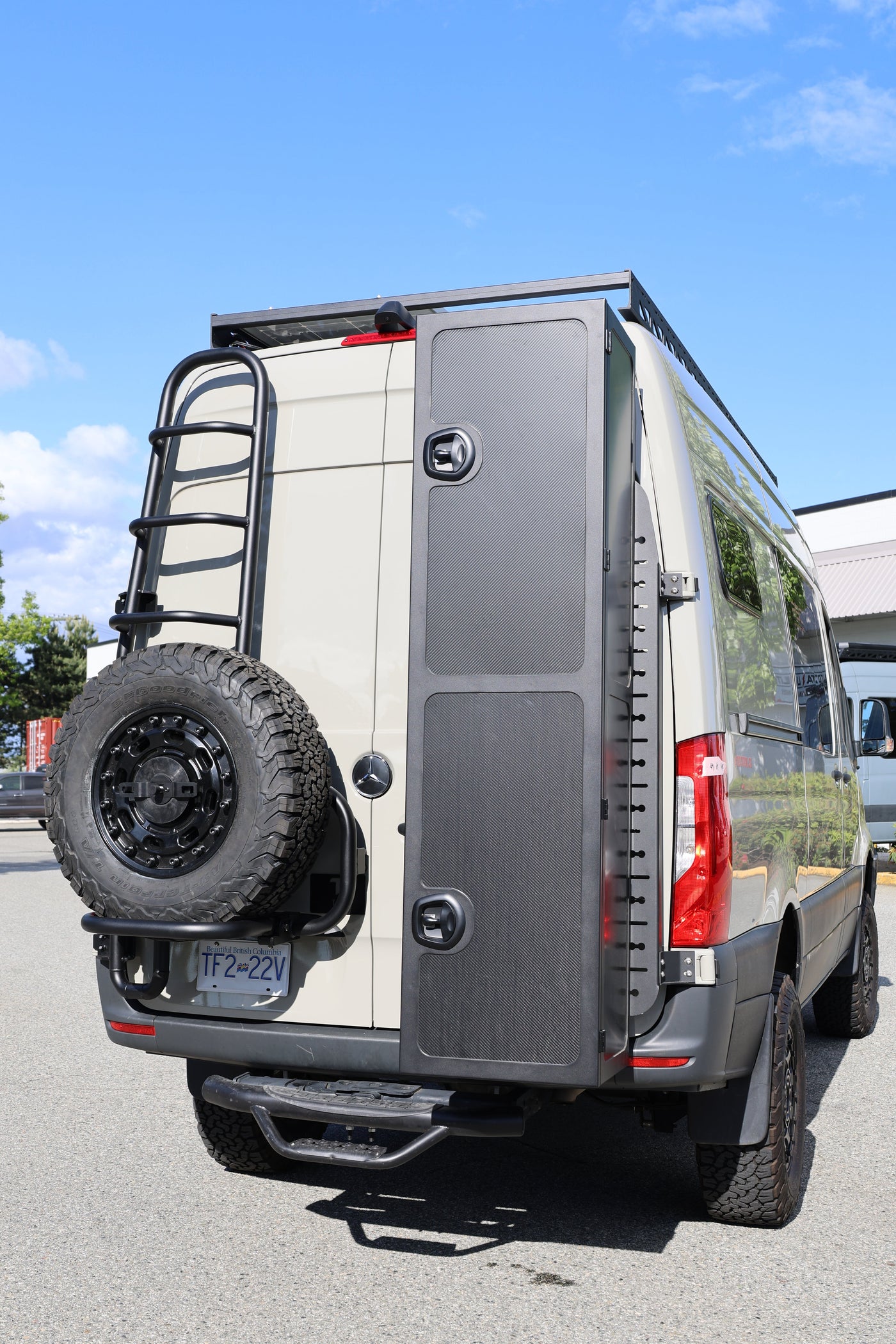

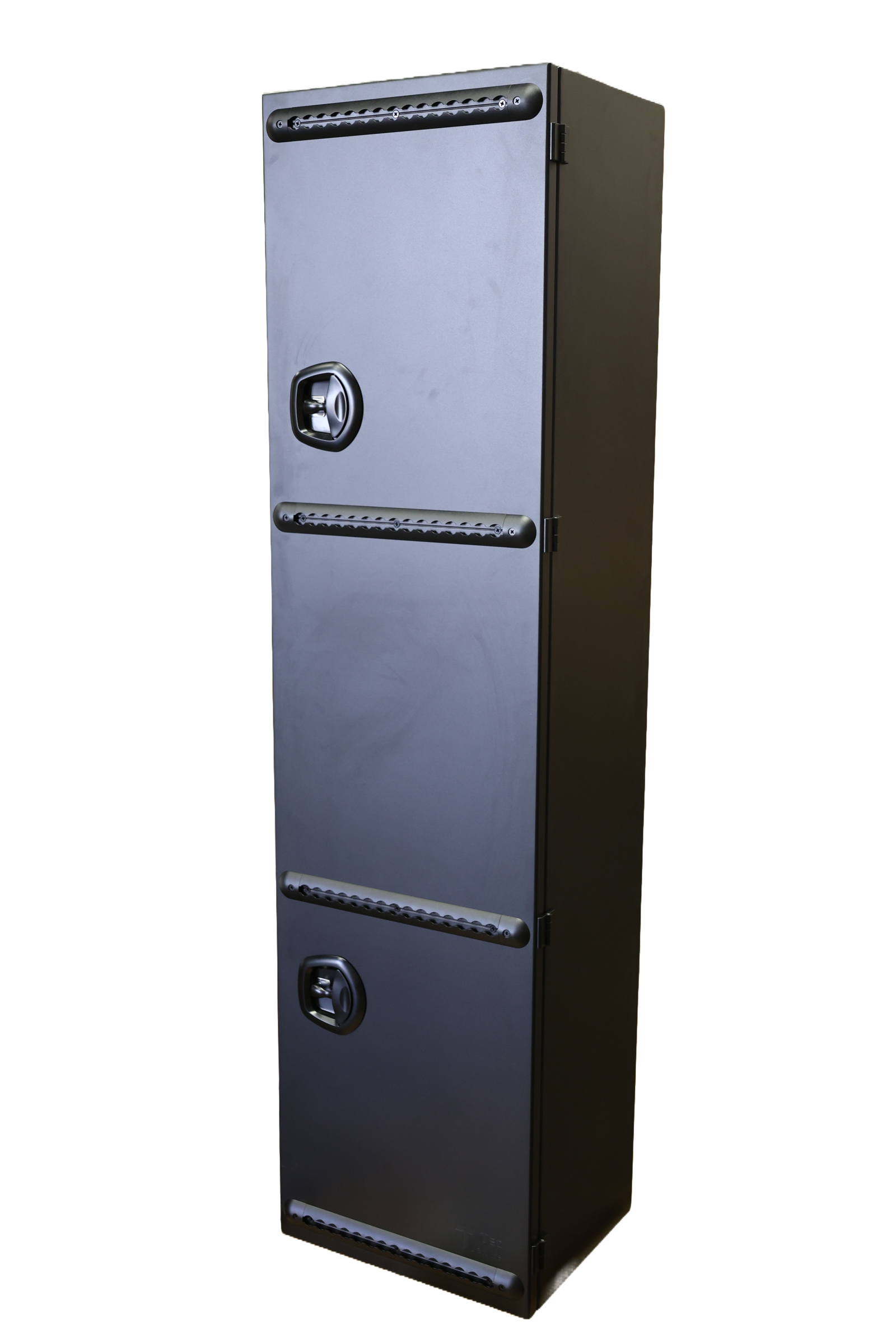

Trenta Aluminum Storage Box
03 — Trenta Aluminum

Trenta Aluminum
Storage Box

19.7" W x 15.7" D x 75.6" H heavy duty all aluminum storage box designed for the Sprinter rear door gear rack.

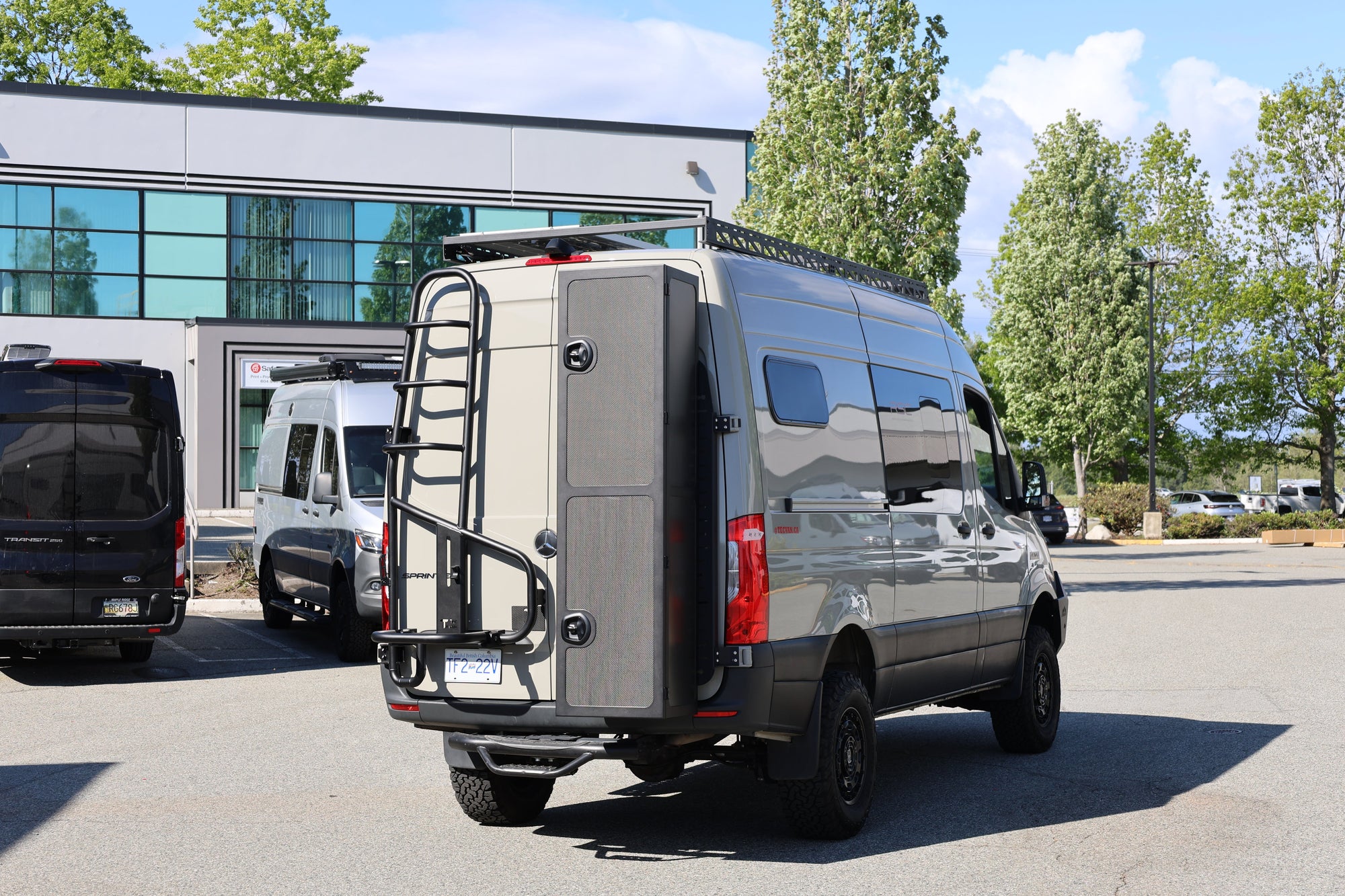

Trenta Carbon Fiber Storage Box
04 — Trenta Carbon

Trenta Carbon Fiber
Storage Box

Lightweight carbon fiber and aluminum storage box designed for the Sprinter rear door gear rack. 49 lb — half the weight of the aluminum box.

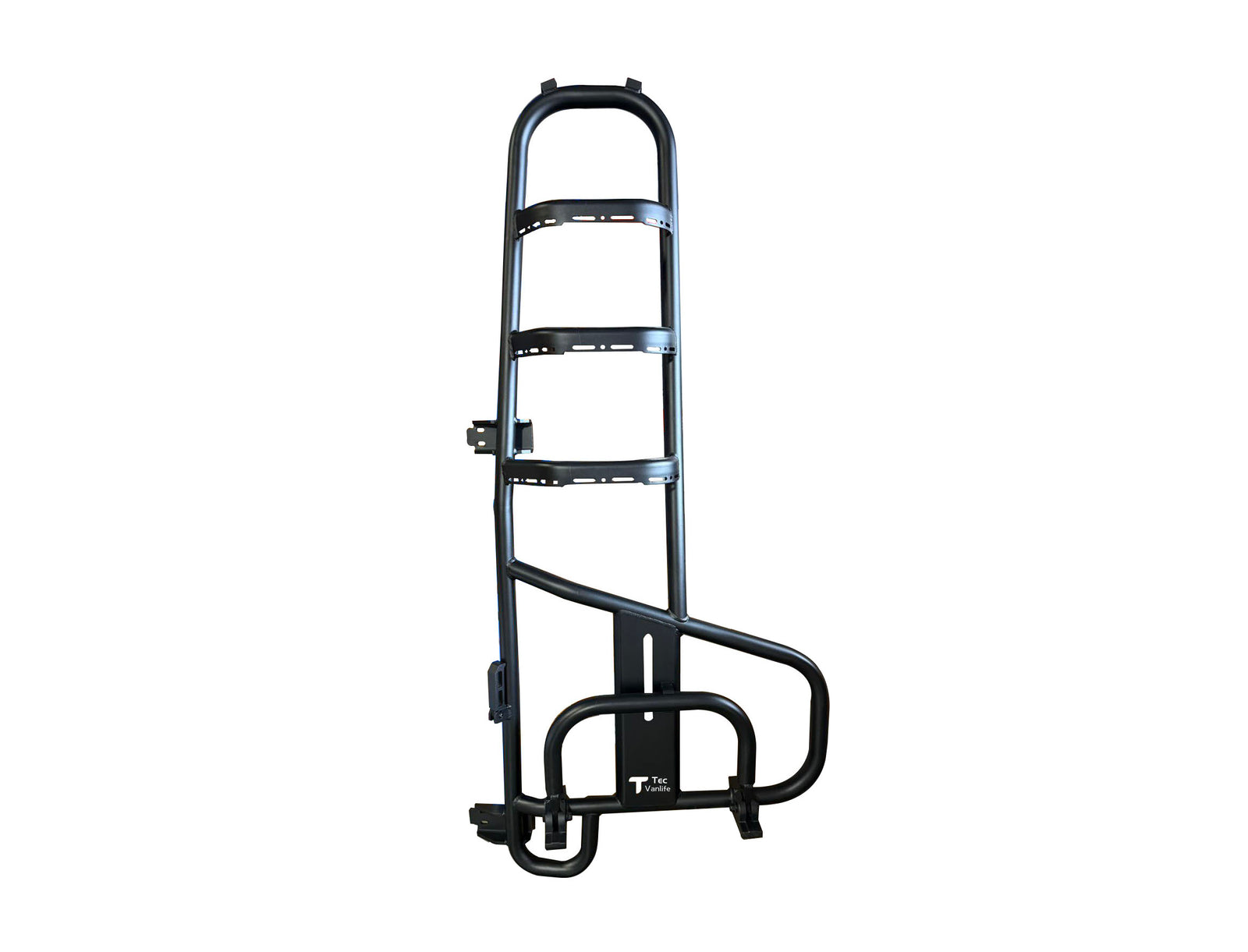

01 — Tire Ladder Carrier

Sprinter
Two-in-One
Tire Ladder Carrier

A rear door mounted aluminum unit that combines a roof access ladder with a full size spare tire carrier. Stainless steel reinforced frame, curved full foot steps with integrated tread, folding tire arm, and a three piece bolted design for easier handling. Frees the OEM underbody spare location for undermount water tanks.

33.8 lb
Unit Weight
305
Max Tire Width
$1,549
Full Price
01

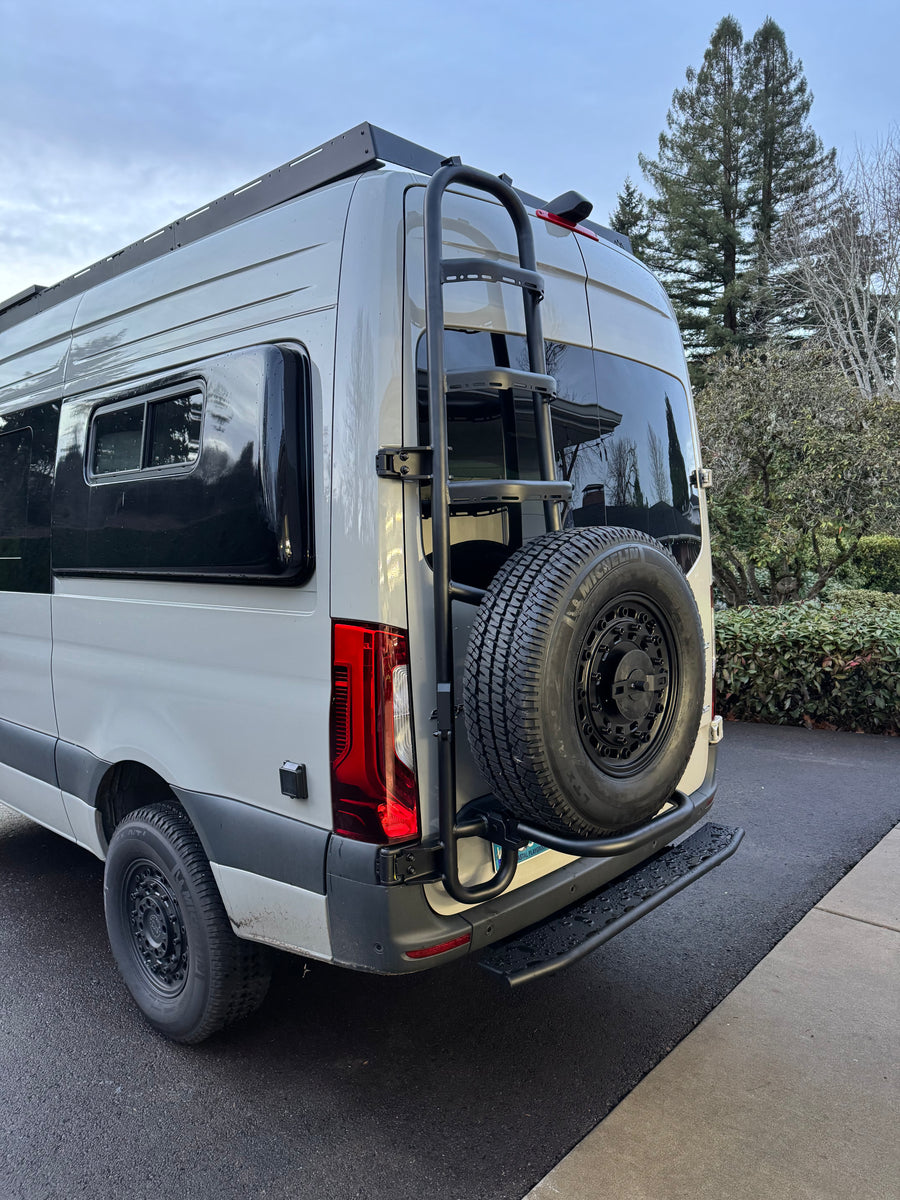

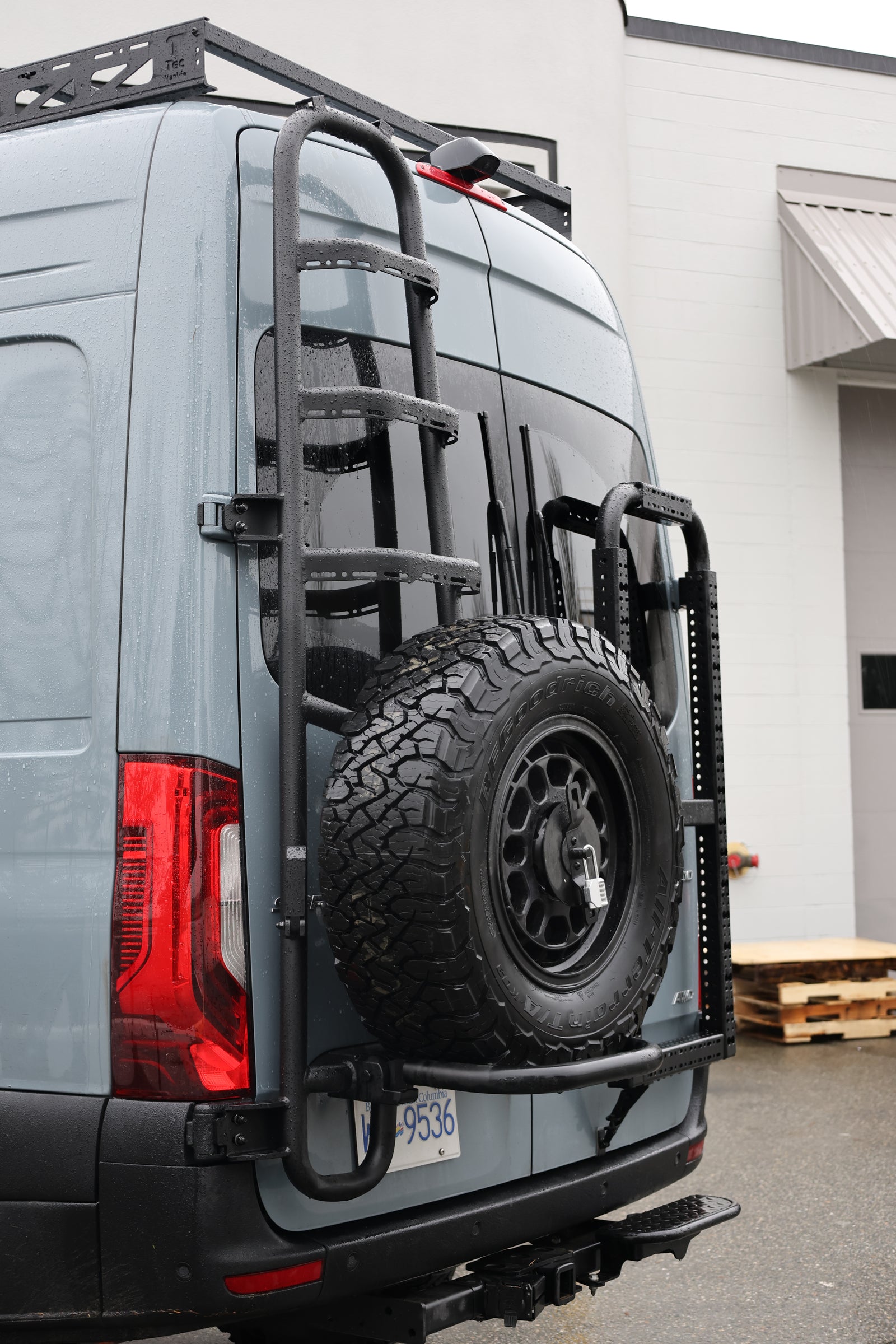

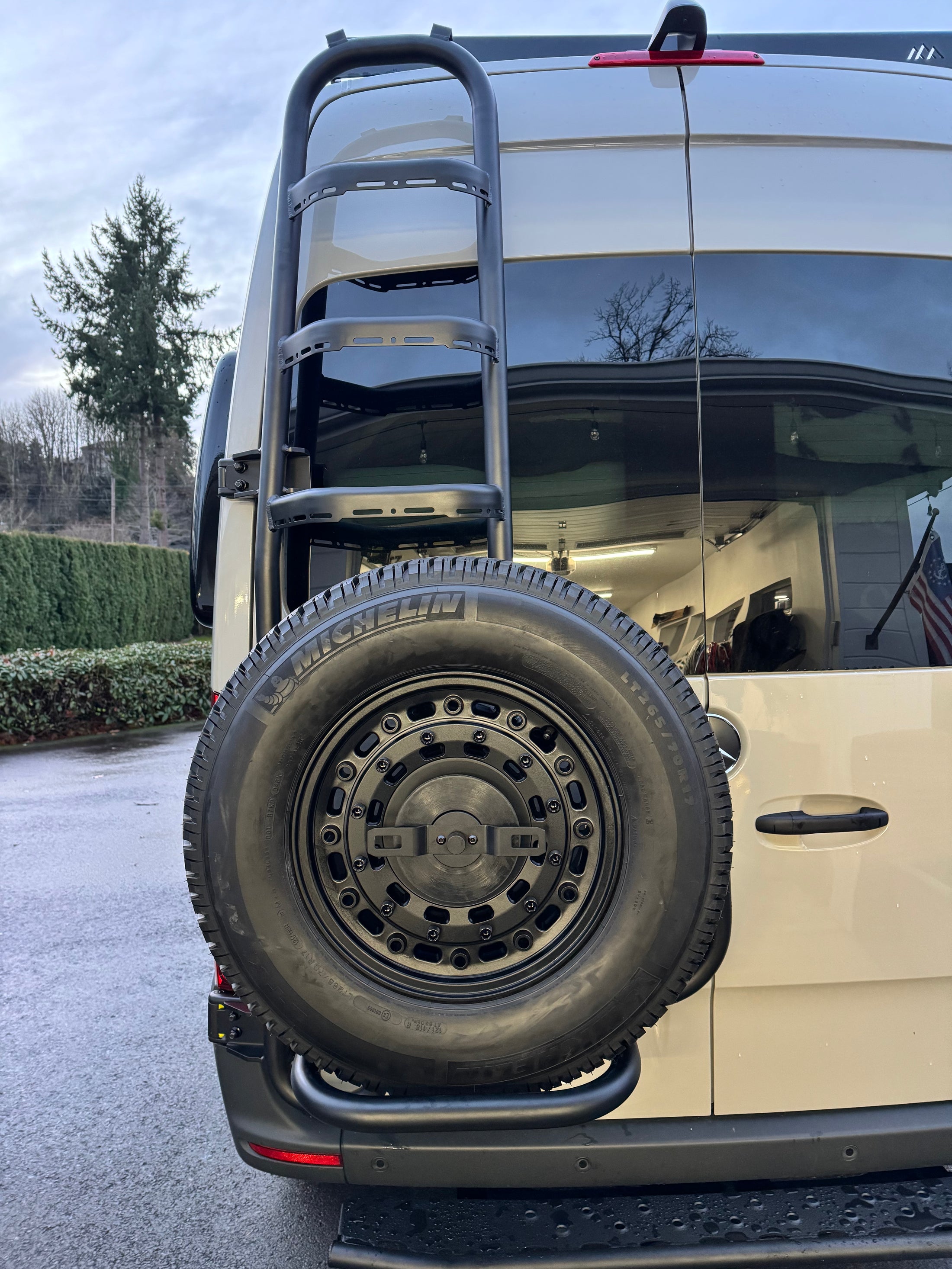

Two-in-One Tire Ladder Carrier — installed

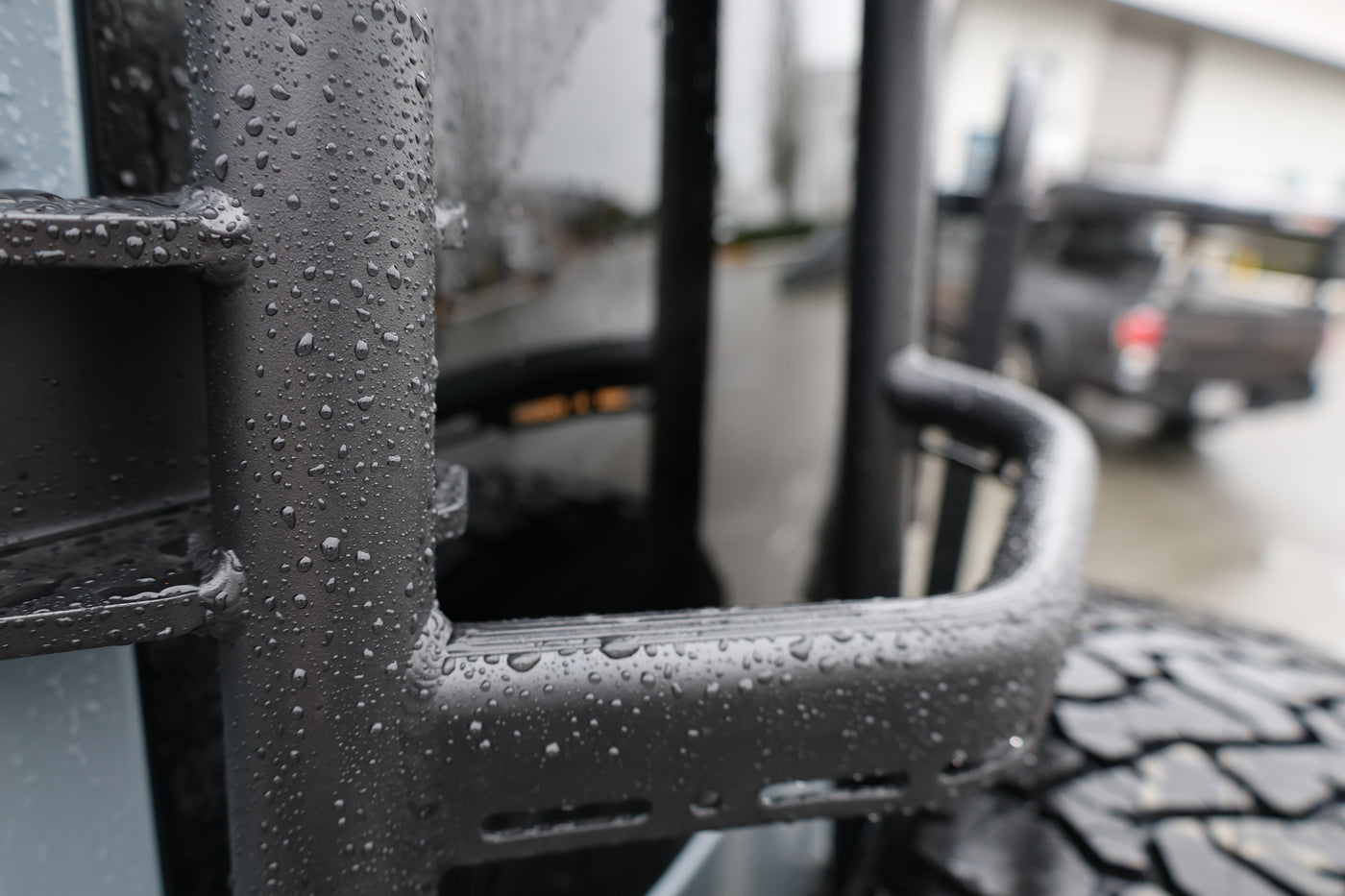

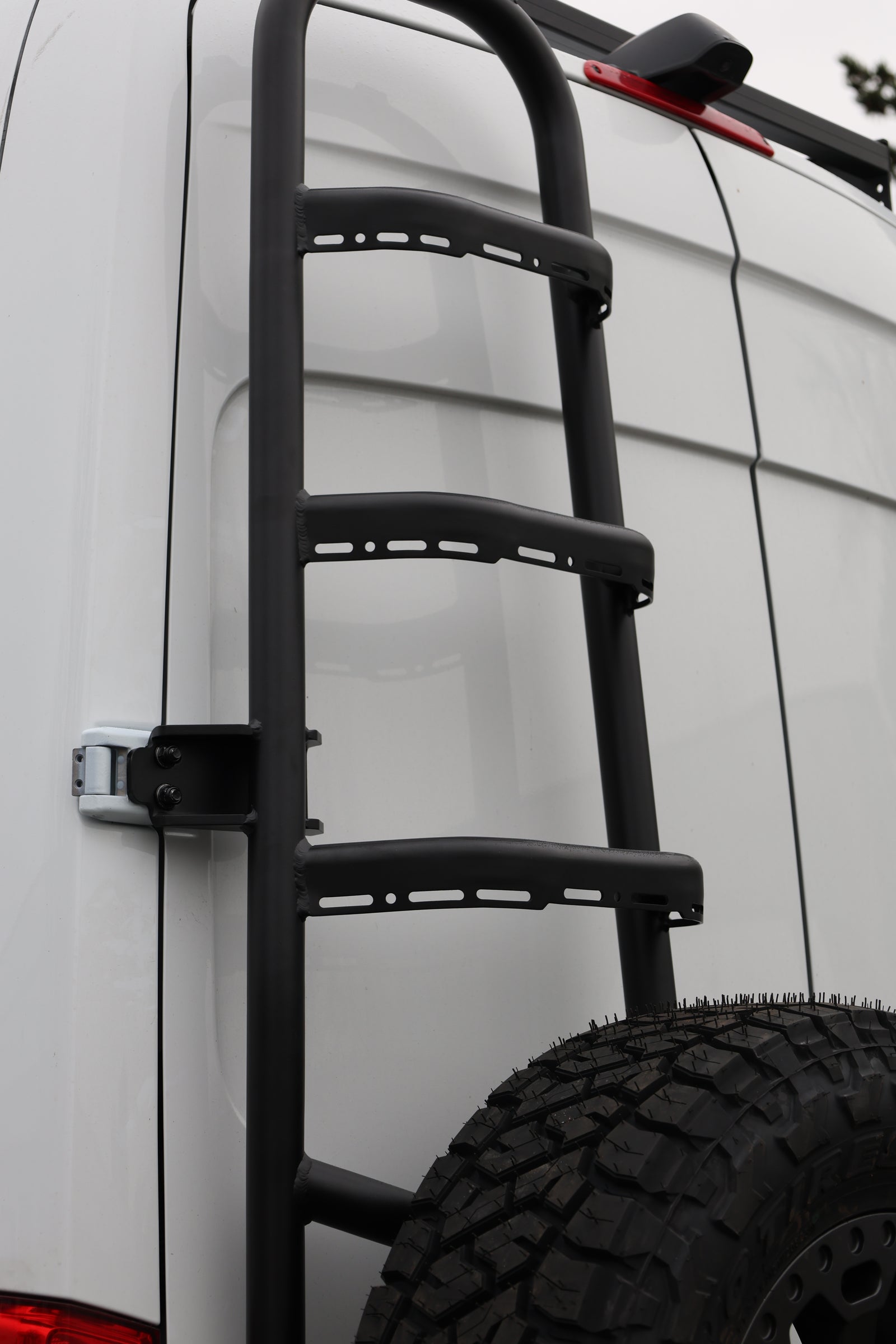

Ladder step detail
Spare tire mounted view

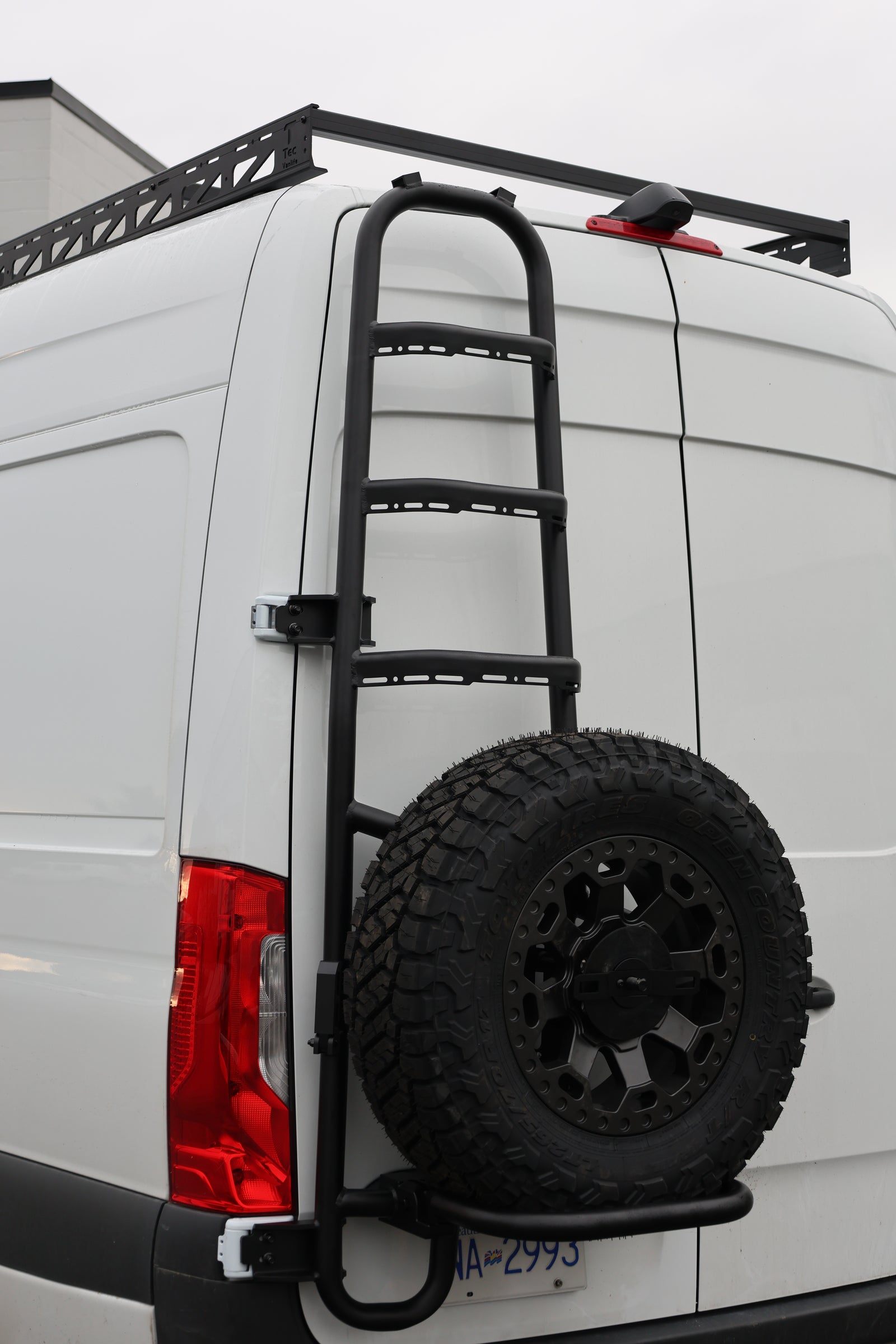

Folding tire arm detail
System Features

Ladder & Spare
In One Unit

01
Ribbed Foot Steps
Wide steps with integrated tread pattern for secure footing in all conditions. Sized for work and hiking boots.
02
Folding Tire Arm
Tire holder retracts when not loaded for a cleaner profile. Supports full size all terrain tires up to 305 section width.
03
Aluminum + Stainless Reinforcement
Lightweight aluminum frame with stainless steel reinforcement for strength and corrosion resistance.
04
Three Piece Bolted Design
Ships and handles in three sections, then bolts together for installation. Single person friendly.
05
Frees Underbody Spare Location
Moving the spare to the rear door opens the OEM under chassis location for undermount water tanks and additional storage.
01 / 06
01 — Tire Ladder Carrier

Sprinter Two-in-One Tire Ladder Carrier

$1,549

Rear door mounted aluminum ladder and full size spare tire carrier in one unit. For 2019+ Sprinter vans with 180° rear door hinges. Stainless reinforced frame, folding tire arm, and curved tread steps.

  • SKUE-RR-T-LT-SP
  • MaterialAluminum · stainless reinforcement
  • Dimensions75.6″ × 39.4″ × 10.25″
  • Weight33.8 lb (15.3 kg)
  • Max TireUp to 305 section width
  • Door Hinges180° rear door hinges required
  • Compatibility2019+ Mercedes-Benz Sprinter
Shop
Full Specifications
Material Aluminum frame with stainless steel reinforcement
Overall Dimensions 75.6″ × 39.4″ × 10.25″ (1920 × 1001 × 260 mm)
Weight 33.8 lb (15.3 kg)
Tire Capacity Full size all terrain tires up to 305 section width
Wheel Compatibility Factory alloy and most aftermarket alloy wheels
Step Profile Curved full foot with integrated tread
Tire Arm Folding — retracts when unused
Construction Three piece bolted design
Door Hinges Requires 180° rear door hinges
Compatibility 2019+ Mercedes-Benz Sprinter
02 — Gear Rack
Factory hinges.
No drilling.

A rear door mounting base that uses the points already in your van. No drill, no permanent modifications, removable when unused.

02 — Gear Rack

Sprinter
Rear Door
Aluminum Gear Rack

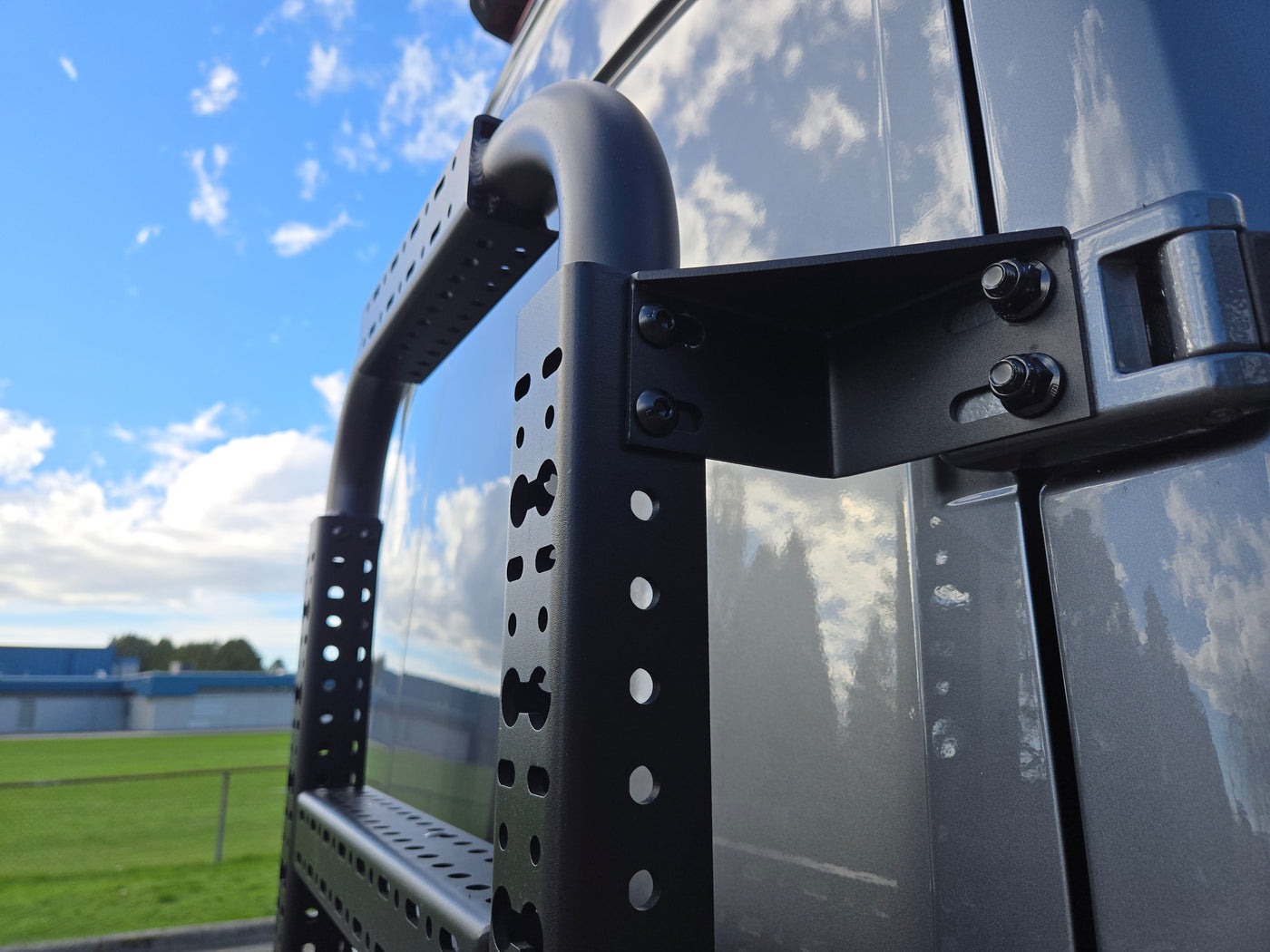

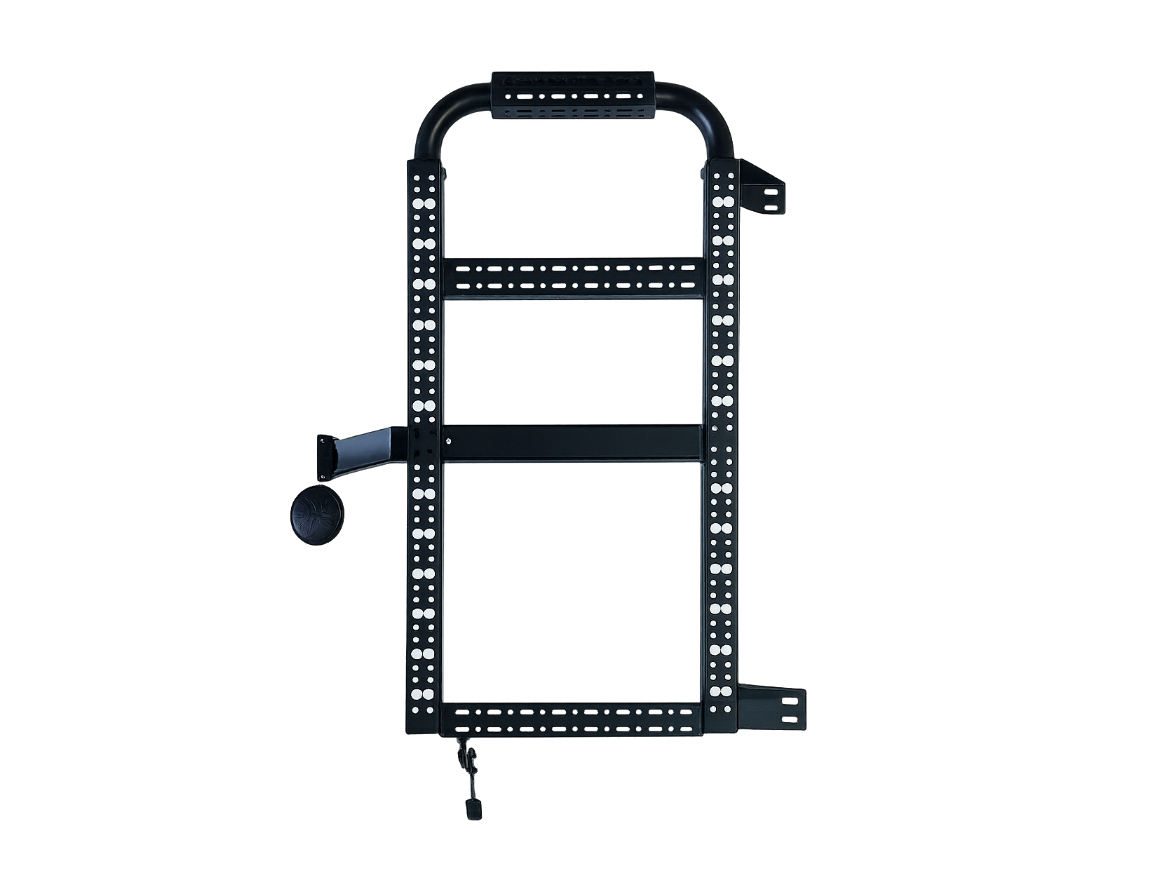

No drill aluminum frame for the rear passenger door of 2019+ Sprinters with 180° hinges. Mounts to factory hinge points and OEM badge openings. Molle style mounting grid for standard hardware. Lower door clamp included for load stability. Full door operation preserved.

01
No Drill Mounting
Uses factory hinge locations and OEM badge openings. No permanent body modifications and no interior trim removal.
02
Molle Style Mounting Grid
Molle style mounting grid for storage boxes, bike carriers, fuel containers, recovery boards.
03

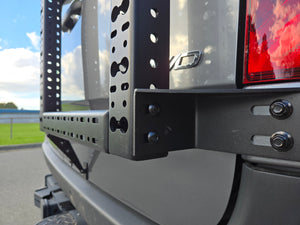

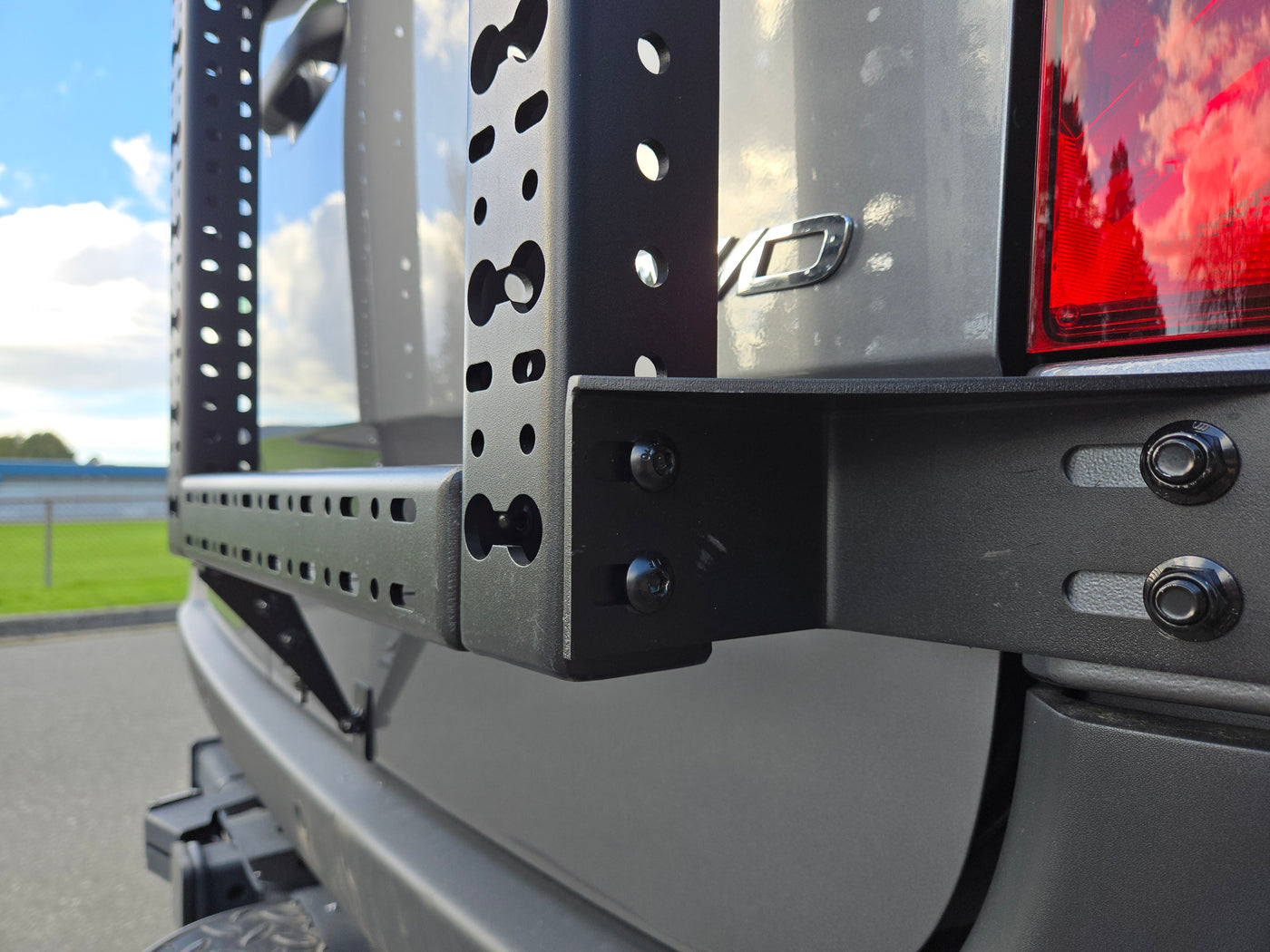

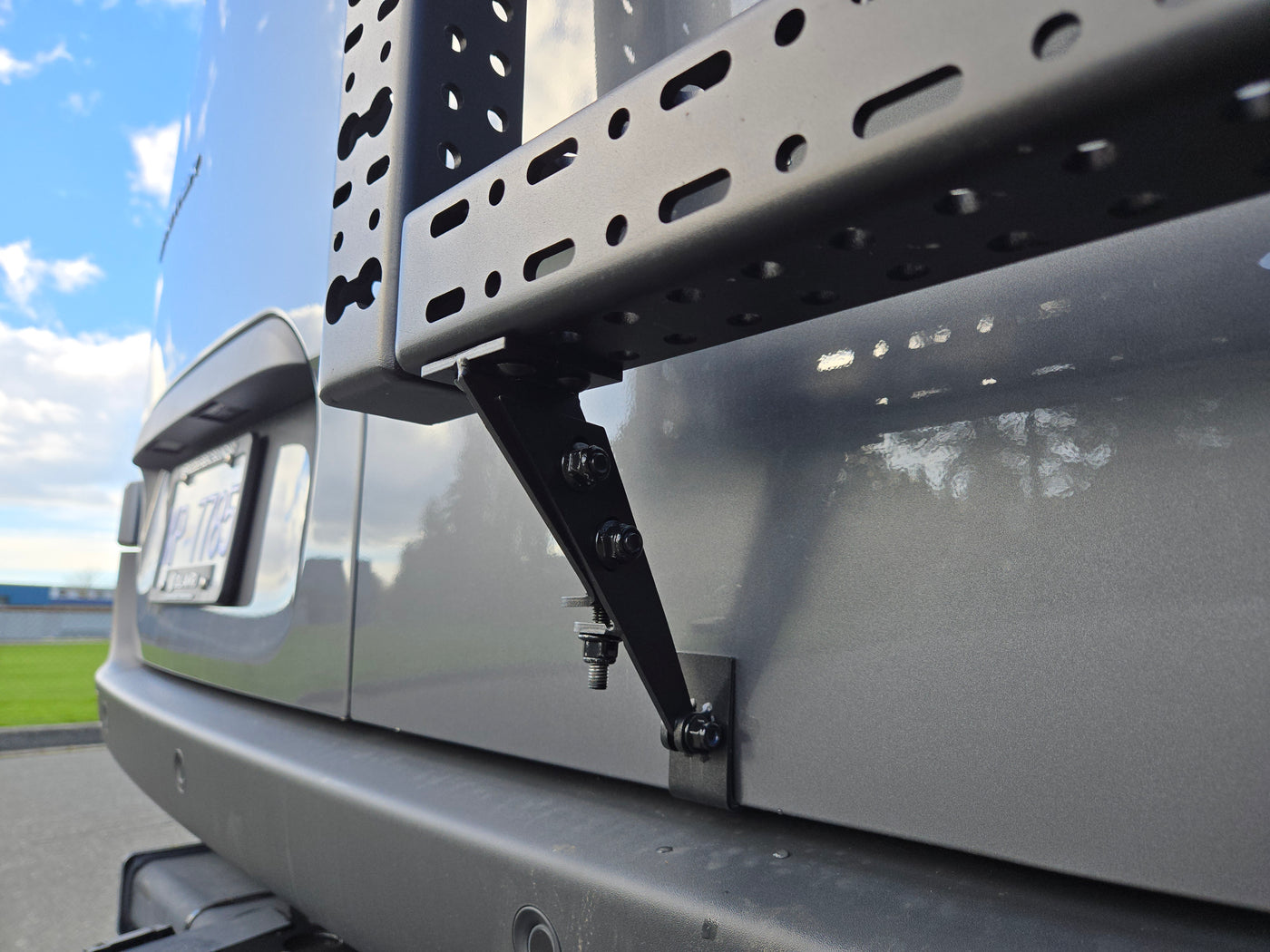

Lower Door Clamp
Included clamp adds bottom support for heavier loads. Door operation remains unrestricted.

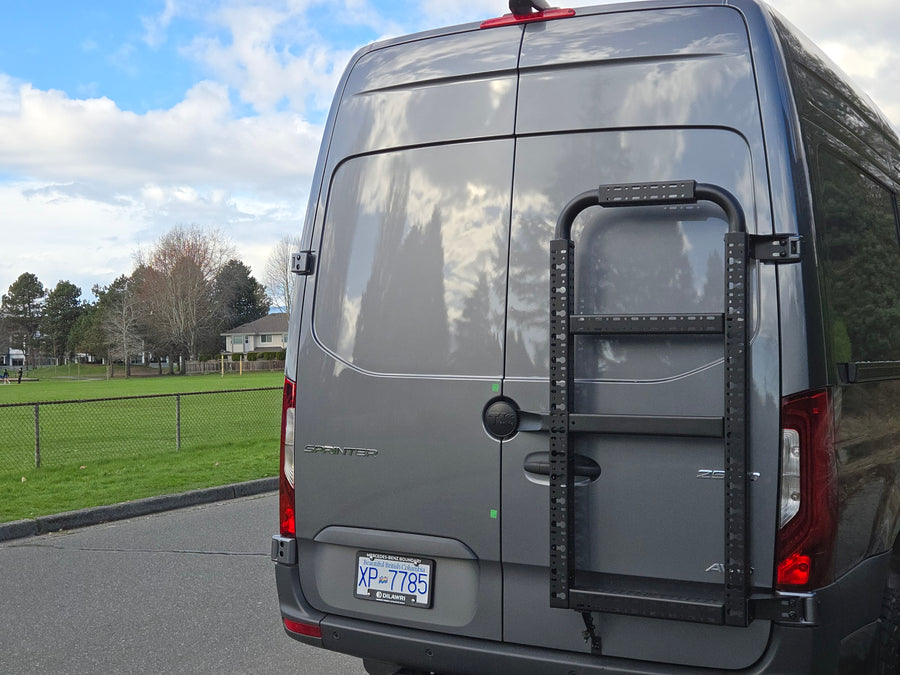

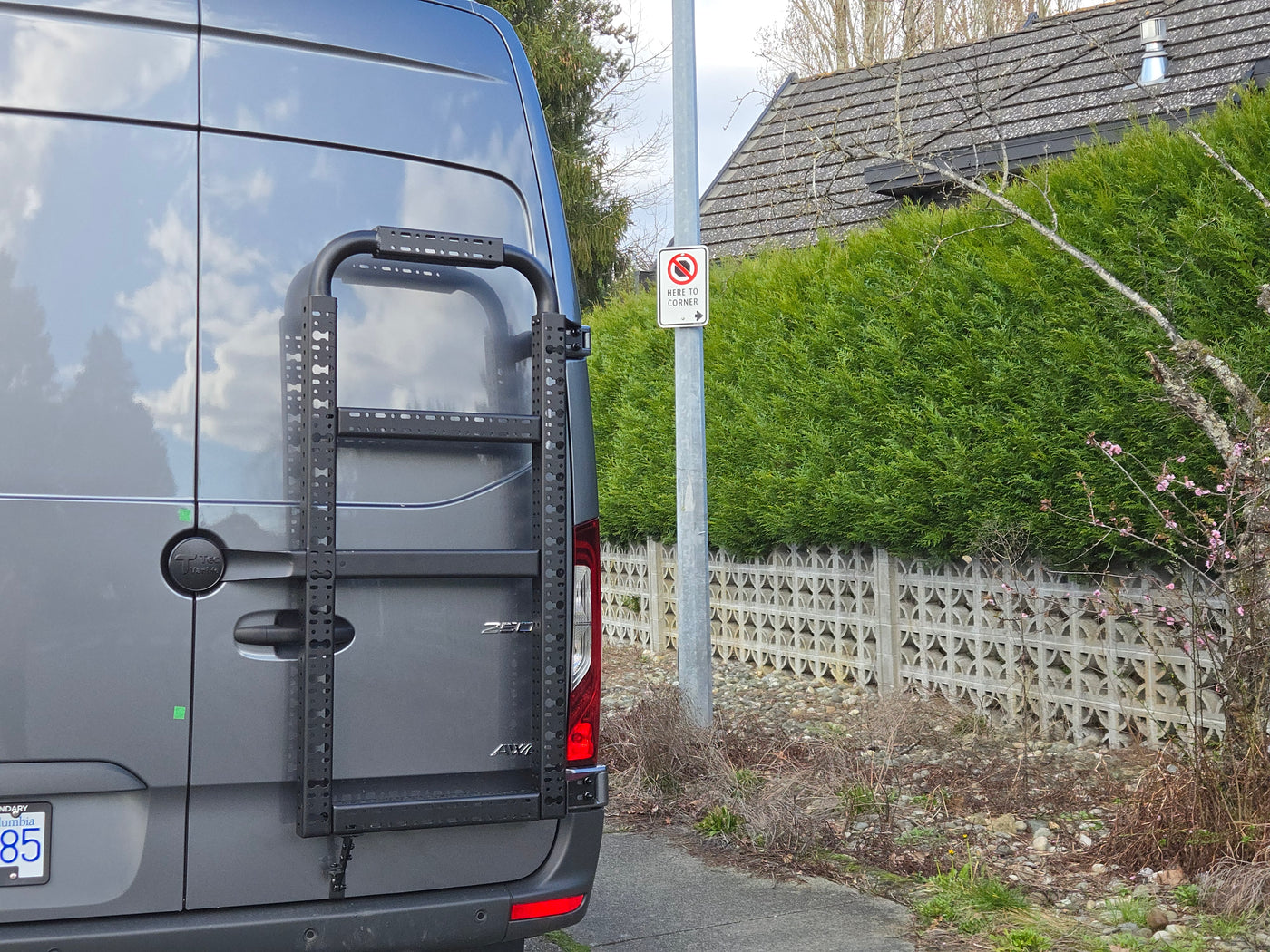

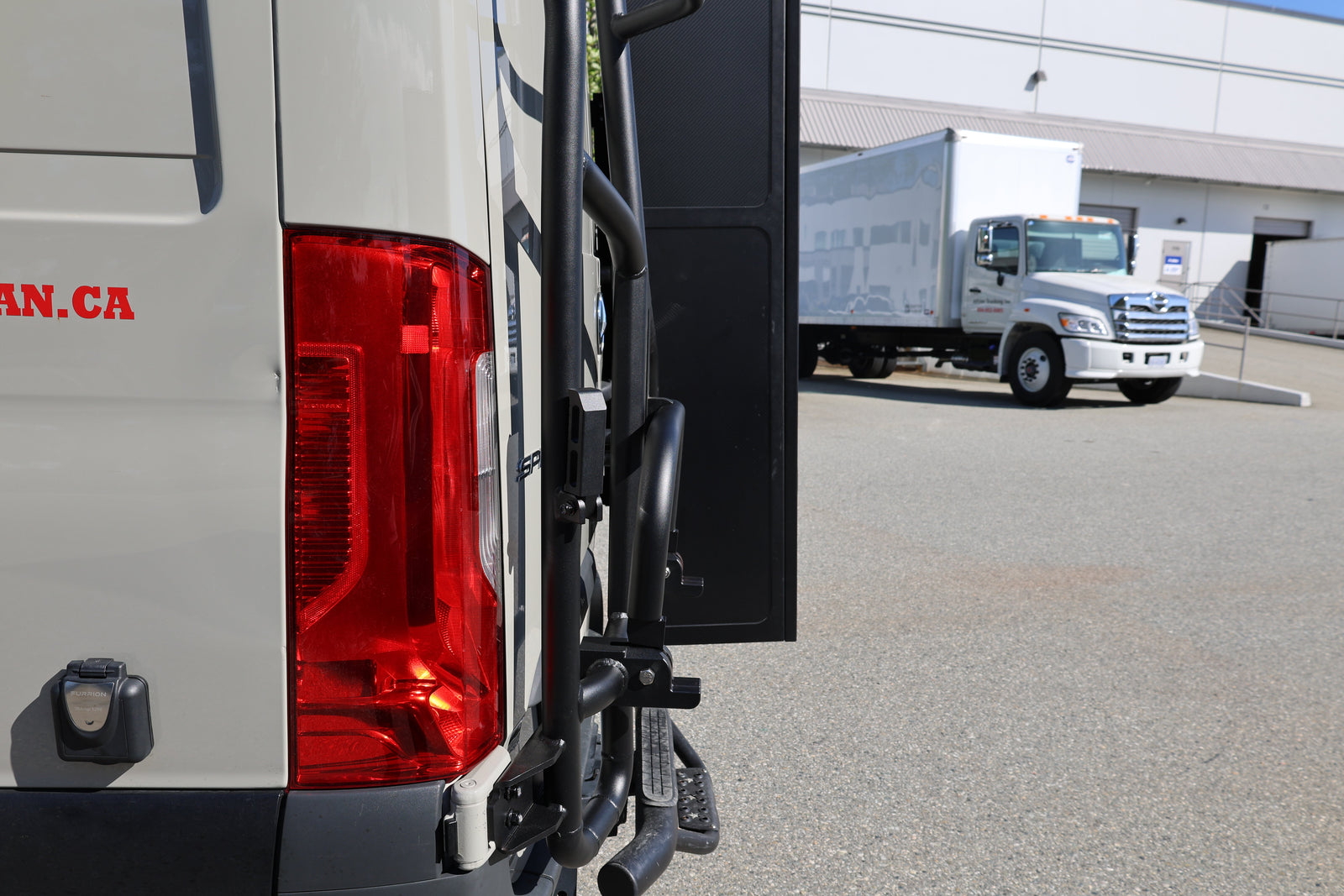

Gear Rack mounted on Sprinter rear door
01 / 06
02 — Gear Rack

Sprinter Rear Door Aluminum Gear Rack — No Drill

$1,295

No drill aluminum gear rack for 2019+ Sprinter rear passenger door with 180° hinges. Mounts to factory hinges and OEM badge openings. Molle style mounting grid. 180 lb load capacity. Removable on resale.

  • SKUE-RR-T-GR-ND
  • MaterialExtruded aluminum frame
  • Height49.2″ (1250 mm)
  • Width22.8″ (580 mm)
  • Weight24 lb (10.7 kg)
  • Capacity180 lb load
  • Install~1 hr, no drill, hand tools
  • Compatibility2019+ Sprinter, 180° rear door hinges
Shop
Full Specifications
Material Lightweight extruded aluminum
Height 49.2″ (1250 mm)
Width 22.8″ (580 mm)
Weight 24 lb (10.7 kg)
Load Capacity Up to 180 lb
Mounting Factory hinge points + OEM badge openings
Install ~1 hr, single person, standard hand tools
Compatibility 2019+ Sprinter with 180° rear door hinges only
03 — Trenta Aluminum

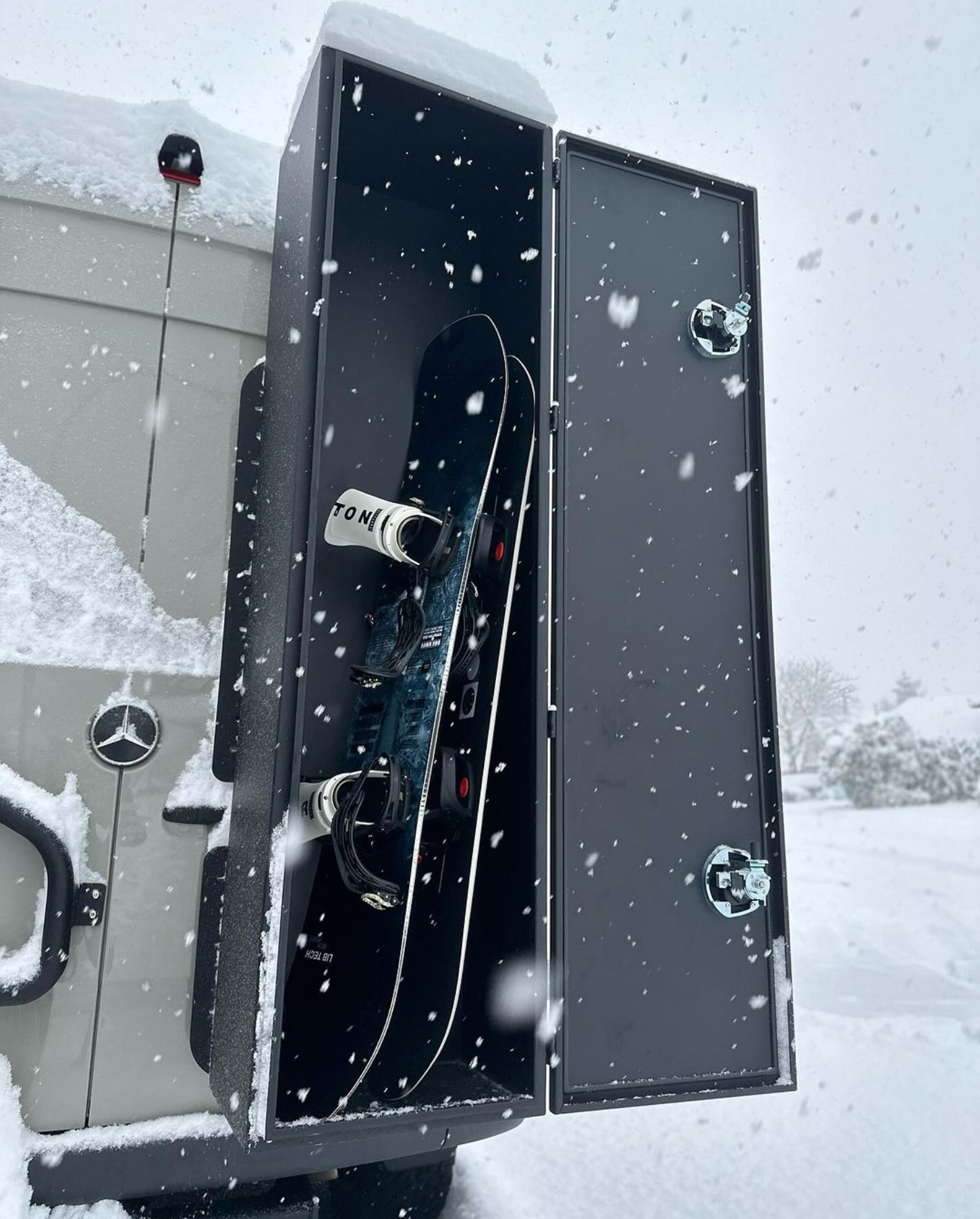

Skis. Snowboards.
Protection for
long equipment.

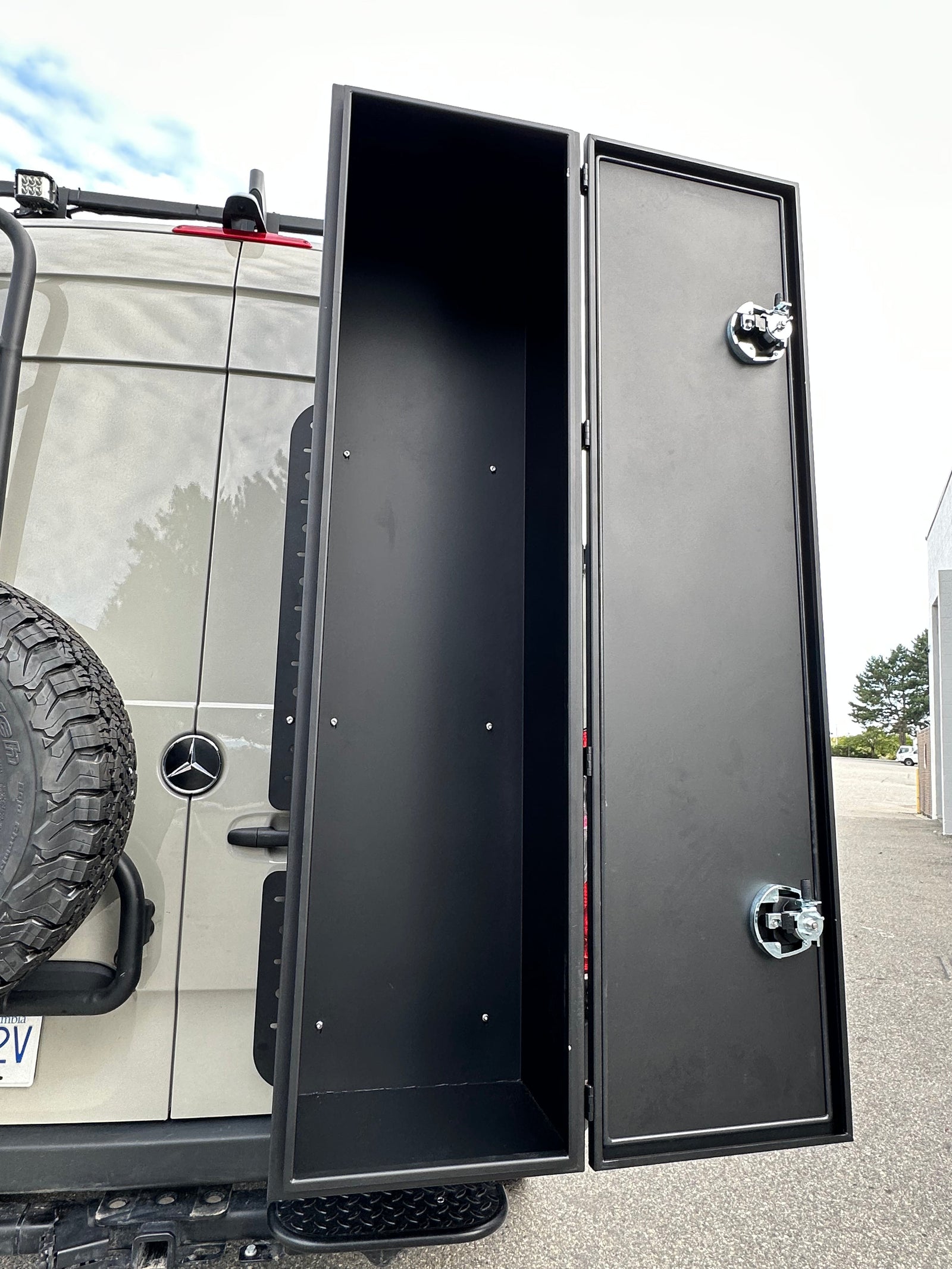

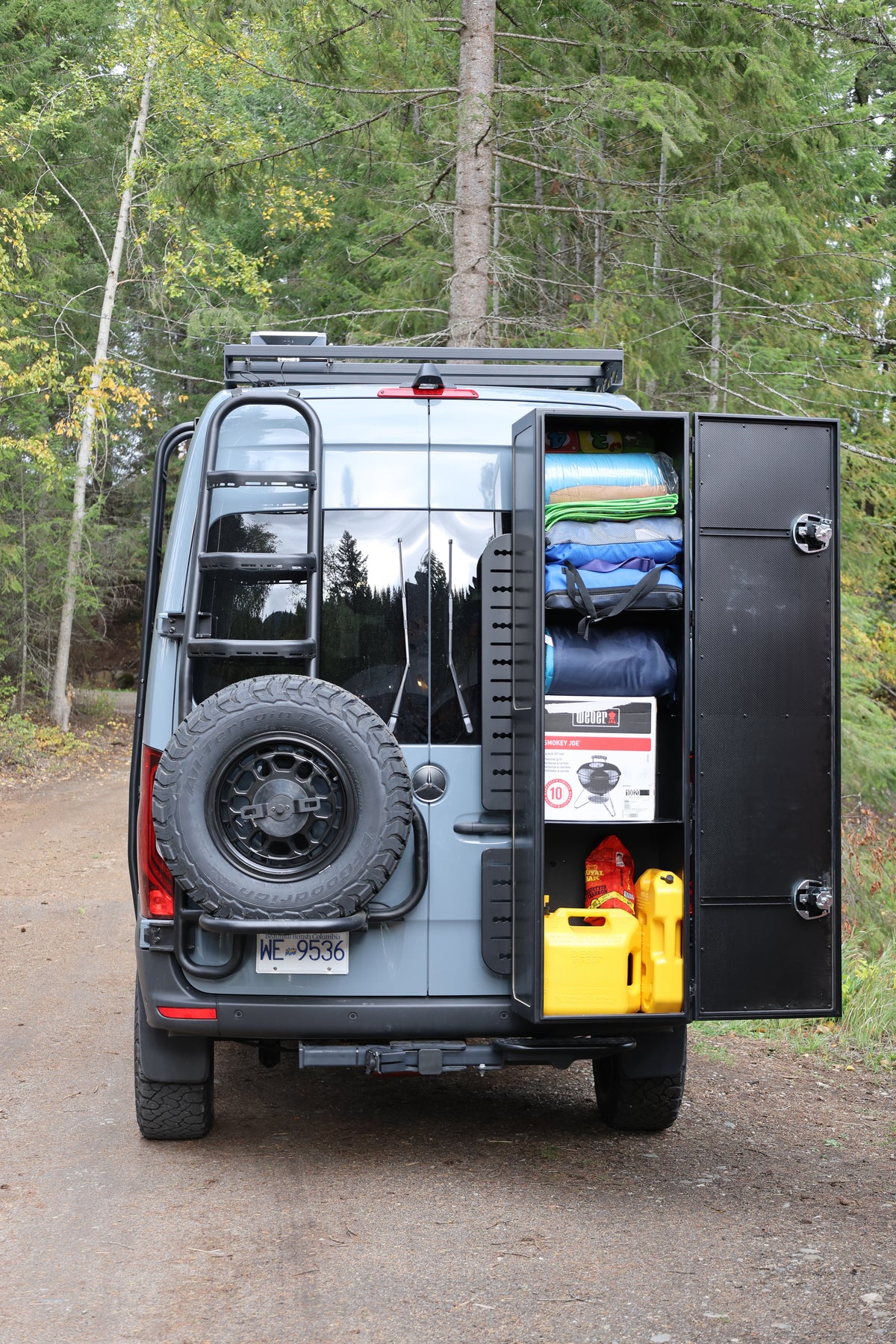

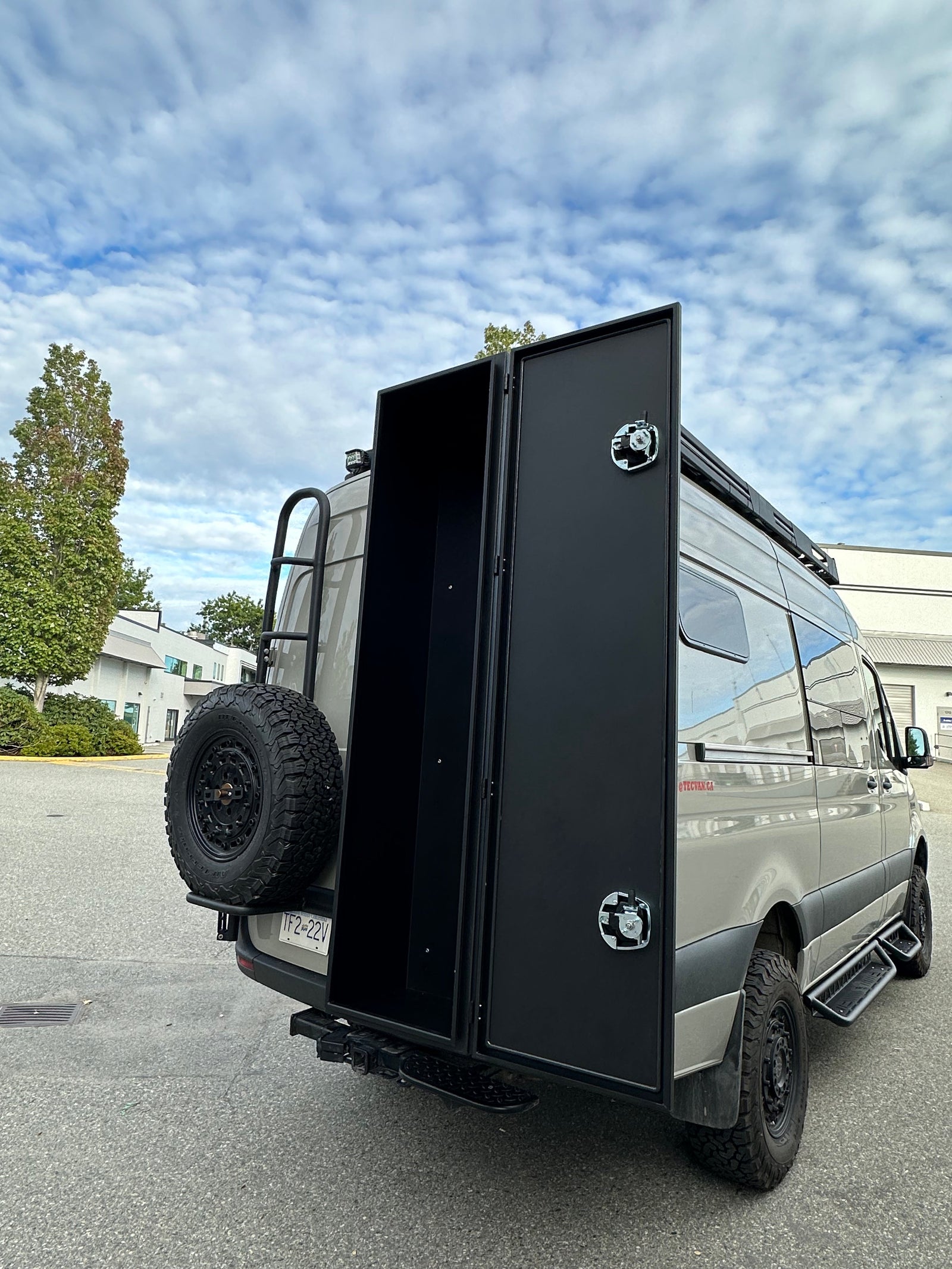

Heavy duty all aluminum storage box. Fully welded and weather sealed.

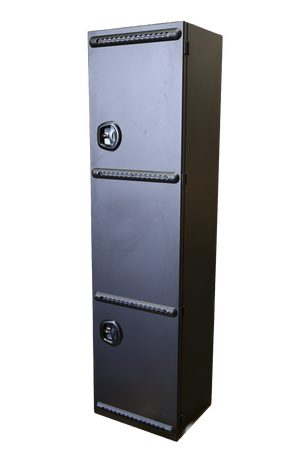

03 — Trenta Aluminum

Trenta
Aluminum
Storage Box

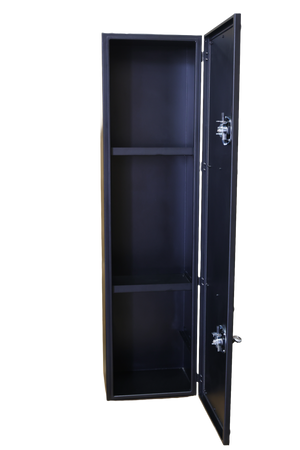

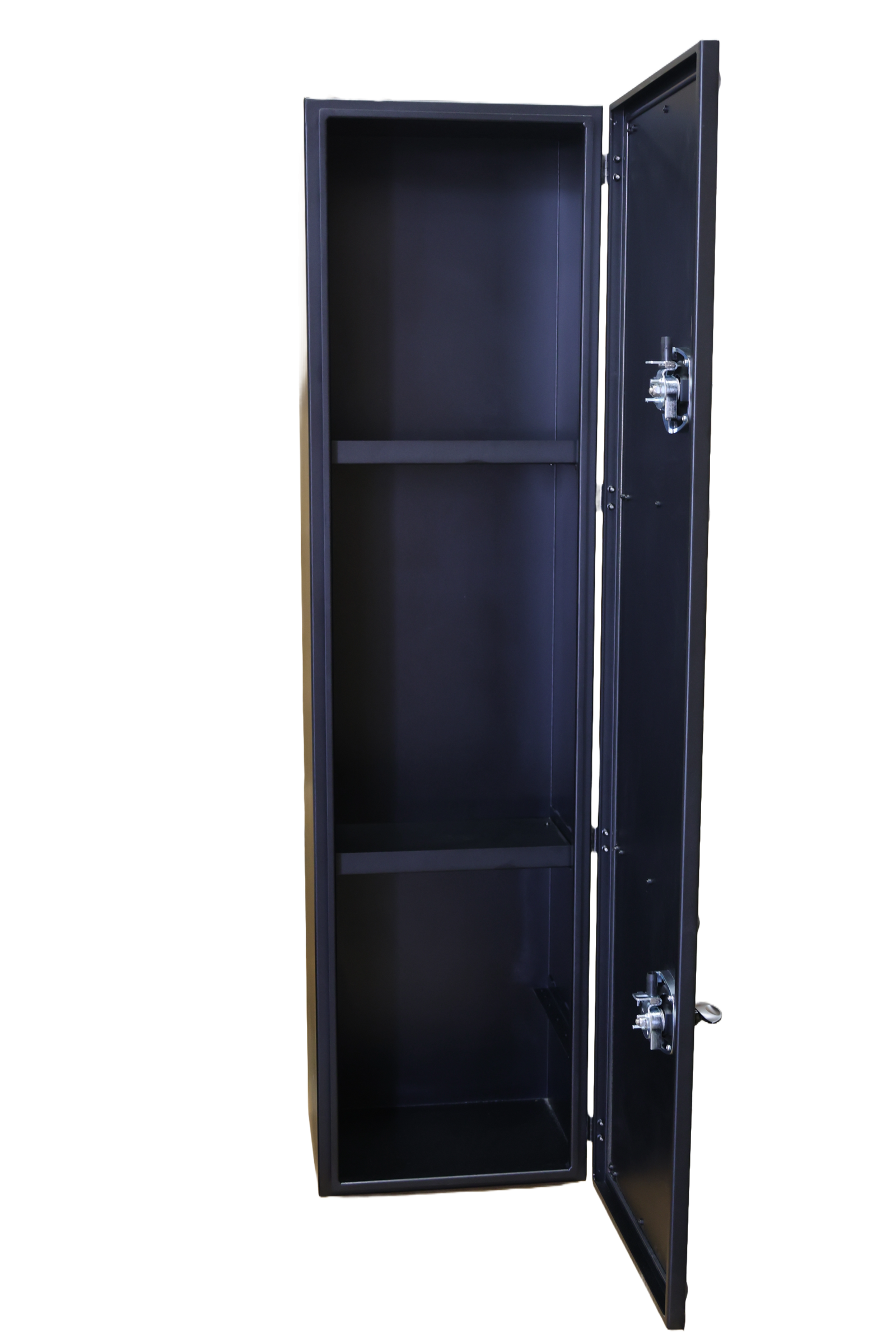

Heavy duty all aluminum storage box for skis, snowboards, golf bags, fishing rods, and recovery gear. 3 mm aluminum, fully welded body, four internal L-tracks, two removable internal panels, premium rubber seal, dual point locking with padlock provision. Designed for direct fit to the Tec Vanlife rear door gear rack. 75″ usable internal height.

75″
Usable Height
99 lb
Box Weight
$1,899
Full Price
03
01 / 06
03 — Trenta Aluminum

Trenta Aluminum Ski / Multisport Storage Box

$1,899

Heavy duty fully welded 3 mm aluminum storage box for the Sprinter rear door gear rack. 75″ usable internal height for skis, snowboards, golf bags, fishing rods, and recovery gear. Premium rubber seal and dual point locking with padlock provision.

  • SKUE-RR-T-SB-T
  • Material3 mm aluminum · fully welded
  • Width19.7″ (500 mm)
  • Depth15.7″ (400 mm)
  • Height75.6″ (1920 mm)
  • Usable Internal75″ height
  • Weight99 lb (45 kg)
Shop
Full Specifications
Material 3 mm aluminum, fully welded body
Width 19.7″ (500 mm)
Depth 15.7″ (400 mm)
Height 75.6″ (1920 mm)
Usable Internal Height 75″
Weight 99 lb (45 kg)
Locking Built in dual point lock + padlock provision

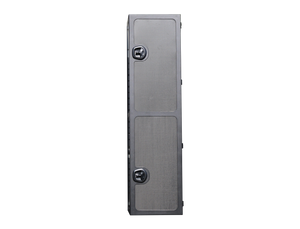

04 — Trenta Carbon Fiber
Same box.
Half the weight.

Aluminum frame, carbon fiber side panels. 49 lb instead of 99. Less load on the door hinges, more capacity left over for gear.

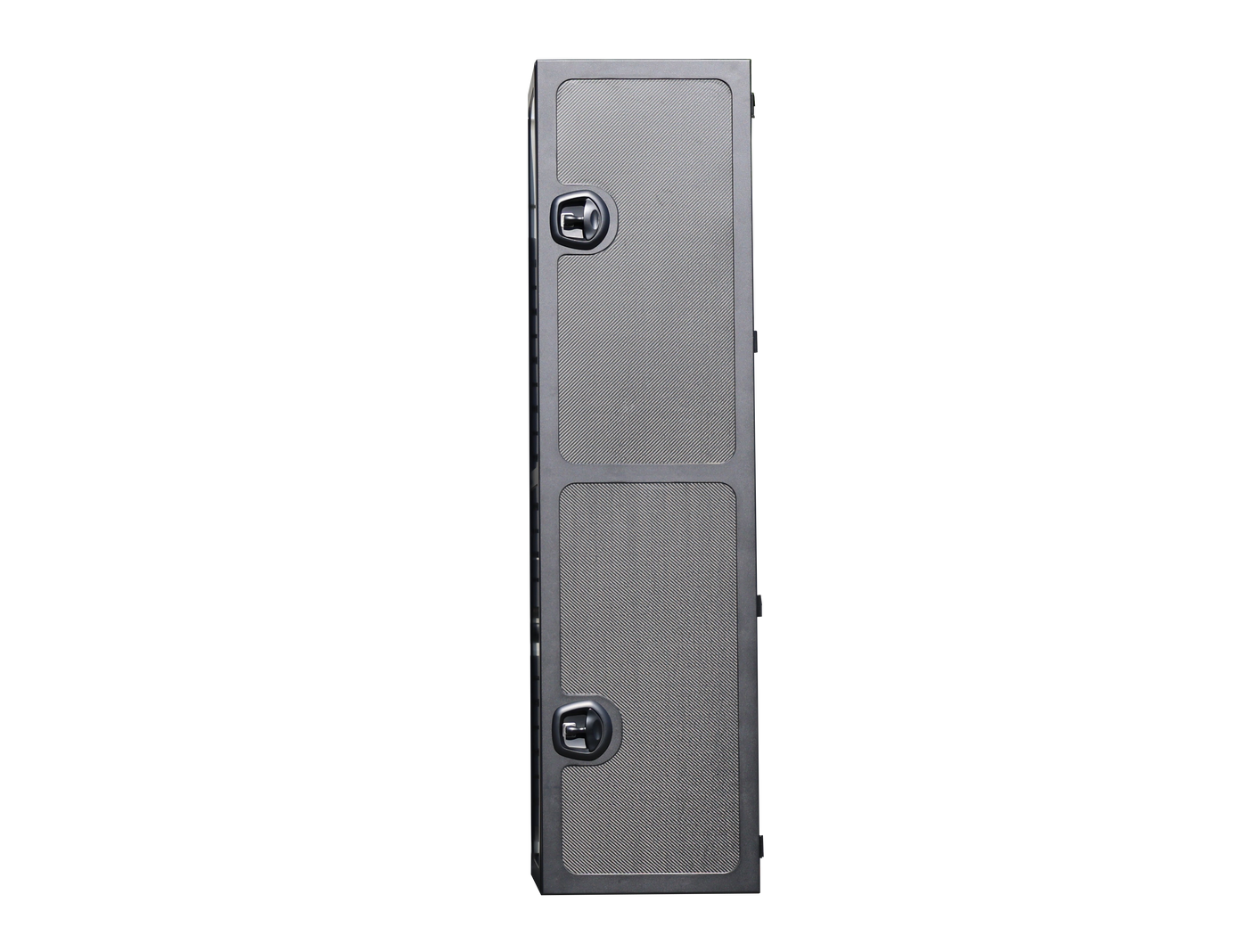

04 — Trenta Carbon Fiber

Trenta
Carbon Fiber
Storage Box

Hybrid storage box with a rigid aluminum frame and carbon fiber side panels. Same 75″ internal height and footprint as the aluminum version and half the weight at 49 lb. Continuous rubber seal, dual point lock with padlock support, and full perimeter screw anchoring. Zero rust design for road salt and snow exposure.

01
Aluminum Frame · Carbon Panels
Aluminum skeleton holds the form. Carbon fiber panels on the sides shed weight without losing rigidity.
02
49 lb — Half The Aluminum Box
22.2 kg total. Less load on the door hinges. More headroom on the 180 lb gear rack capacity.
03
Zero Rust Design
Lack of steel panels eliminates corrosion concerns from road salt, brine, and snow exposure.

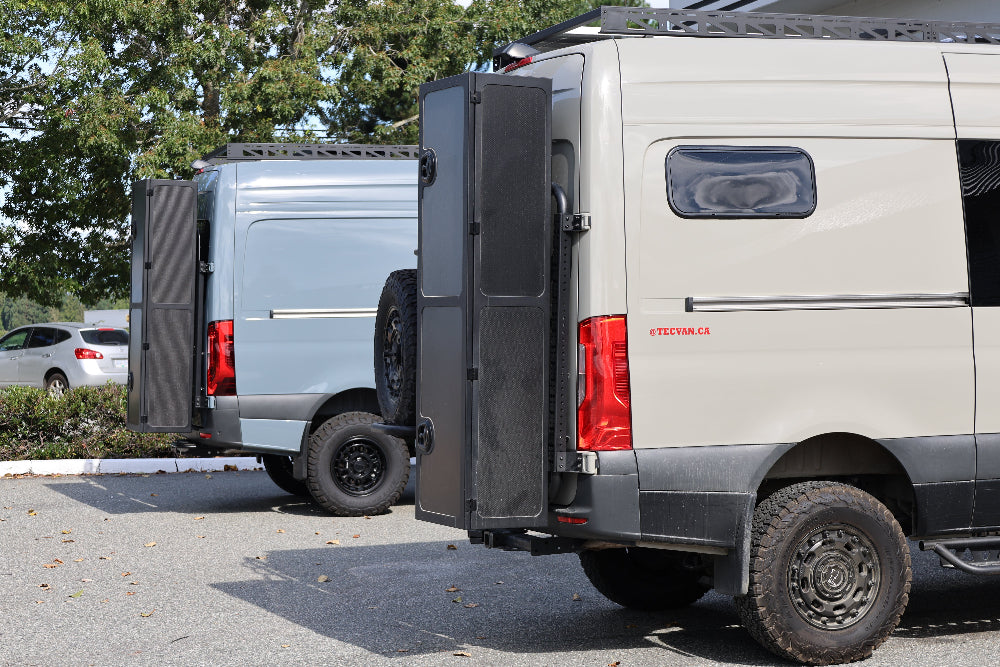

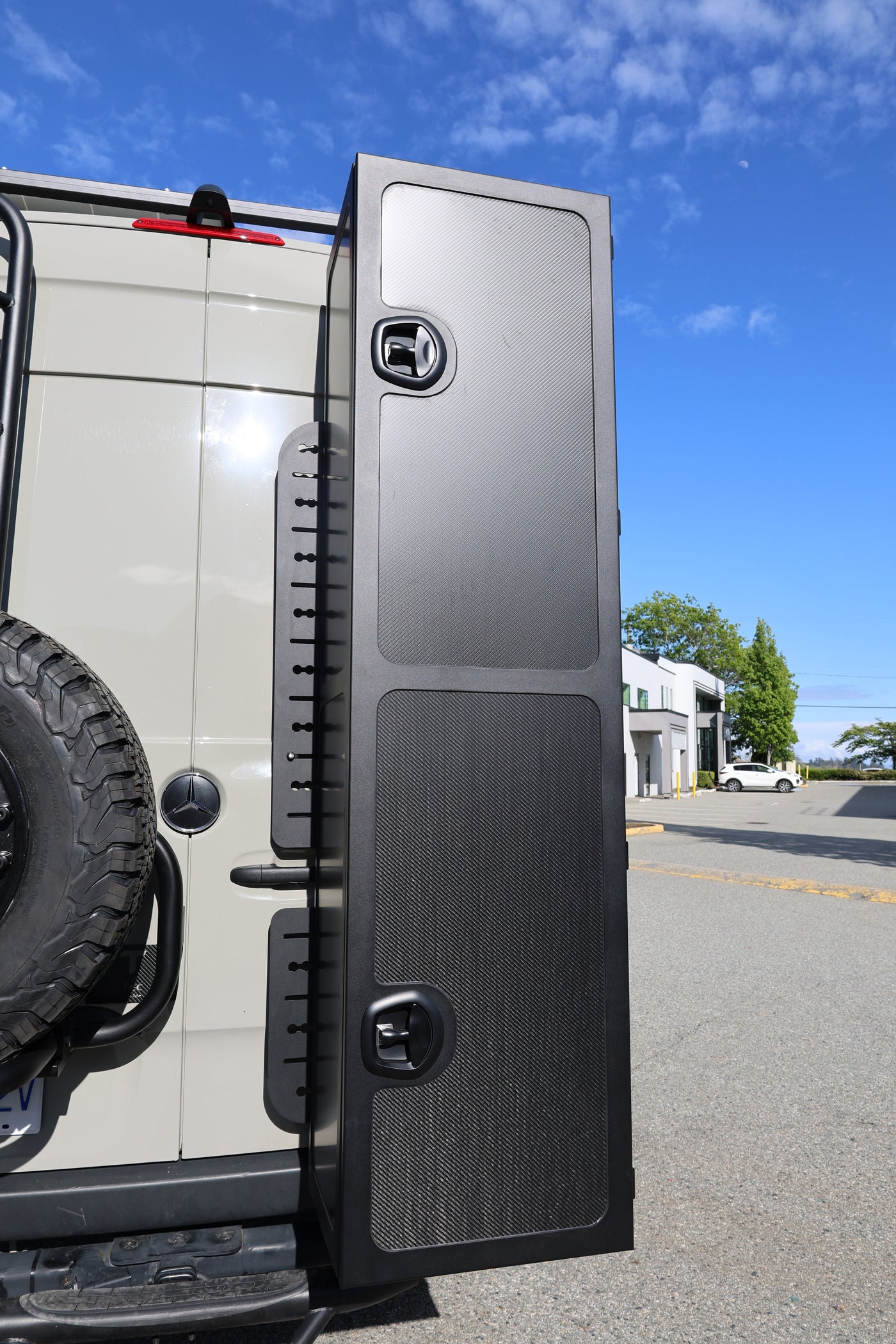

Trenta Carbon Fiber installed
01 / 05
04 — Trenta Carbon Fiber

Trenta Carbon Fiber Ski / Multisport Storage Box

$2,499

Aluminum frame with carbon fiber side panels. Same 75″ internal height and weather sealed performance as the aluminum Trenta, at 49 lb instead of 99. Built for the Sprinter rear door gear rack.

  • SKUE-RR-T-SB-T-CF
  • MaterialsAluminum frame · carbon fiber panels
  • Width19.7″ (500 mm)
  • Depth15.7″ (400 mm)
  • Height75.6″ (1920 mm)
  • Internal Height75″ (1905 mm)
  • Weight49 lb (22.2 kg)
Shop
Full Specifications
Frame Material Aluminum
Panel Material Carbon fiber side panels
Locking Hardware Steel locking mechanism
Width 19.7″ (500 mm)
Depth 15.7″ (400 mm)
Height 75.6″ (1920 mm)
Internal Height 75″ (1905 mm)
Weight 49 lb (22.2 kg)
Gear Rack Capacity 180 lb total
