Sprinter Drop Down Running Boards

Drop Down
Running
Boards

Drop down running boards for 2007+ Mercedes-Benz Sprinter. Coated aluminum tube, support brackets, 400 lb rated platform. Reduces step in height by 6–8 inches. Fits 144″ and 170″ wheelbases.

400 lb
Weight Capacity
~2 hr
Solo Install
144 / 170
Wheelbase Fit

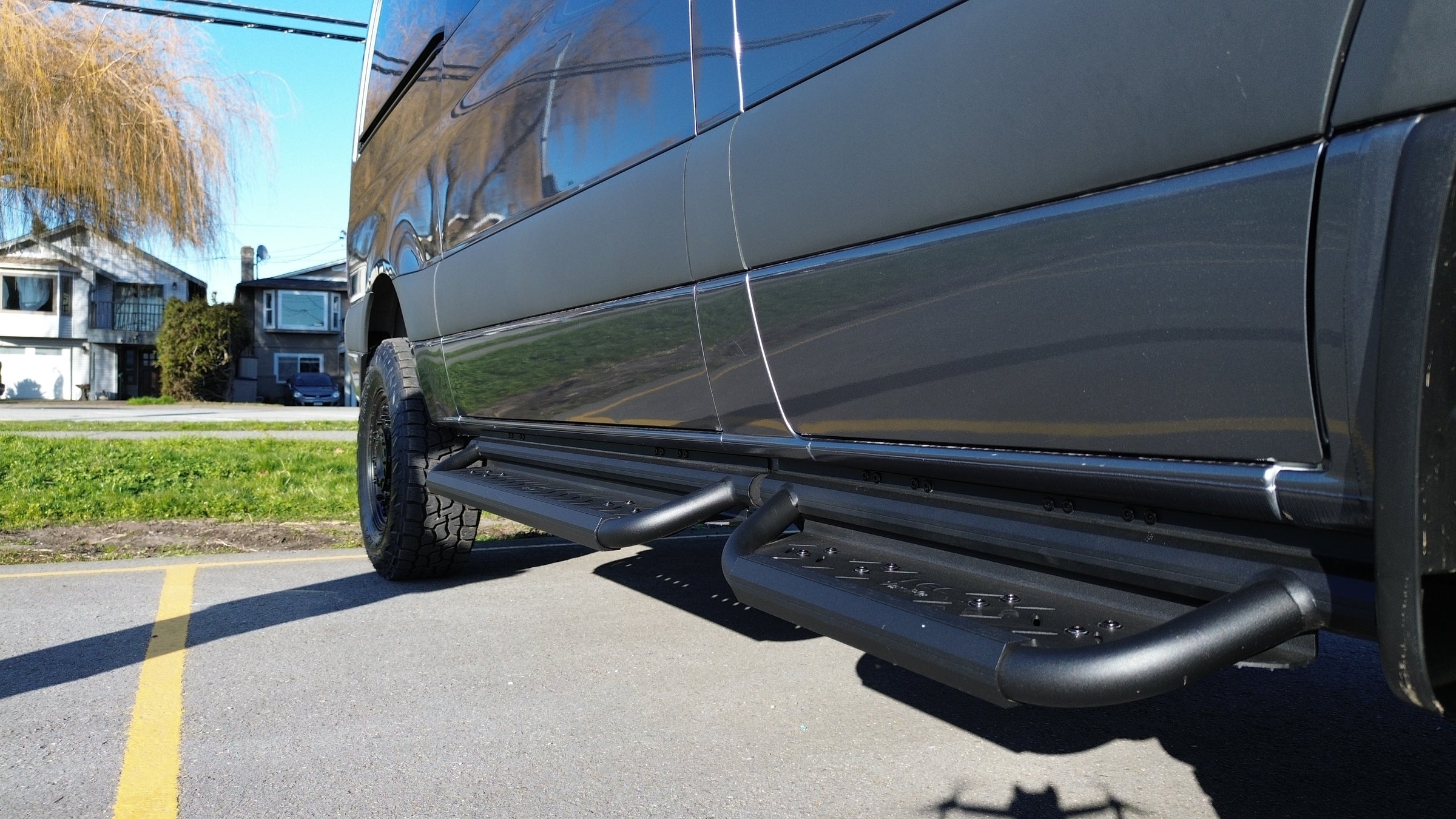

Sprinter Drop Down Running Boards β€” installed
Drop Down Running Board System
Three Series

Drop Down
Running Boards
for Sprinter

Three series built on the same platform. 1.75″ coated aluminum tube. 400 lb rated. Fits 144″ and 170″ wheelbases. Select by footbed profile and coverage β€” Hexagon anti slip, three piece Modular, or single piece Full Length.

Hexagon Series Anti Slip Running Boards
01 β€” Hexagon Series

Hexagon Drop Down
Running Boards

7.66″ ribbed footbed with anti slip pattern. 1.75″ coated aluminum tube. Three piece modular layout.

Modular Series Running Boards
02 β€” Modular Series

Modular Drop Down
Running Boards

Three piece layout — driver, passenger, sliding door. 6.30″ footbed. 1.75″ coated aluminum tube. TIG welded brackets.

Full Length Series Running Boards
03 β€” Full Length

Full Length Drop Down
Running Boards

Single piece board per side. 103.9″ for 144″ wheelbase, 130.7″ for 170″. 6.30″ footbed. TIG welded brackets.

01 β€” Hexagon Series

Hexagon
Drop Down
Running Boards

High strength drop down running board for 2007+ Sprinter vans. Three piece modular layout. 1.75″ coated aluminum tube. 7.66″ footbed with ribbing for traction on wet or packed surfaces. 400 lb rated.

7.66″
Footbed Width
400 lb
Capacity
$1,499
3 Piece Set
01
  Drag to rotate  Β·  Scroll to zoom
Install detail
Hexagon footbed
Installed on Sprinter
Hexagon Series footbed detail
Series Features

Wide Footbed

01
Ribbed Anti Slip Surface
Ribbing across the full 7.66″ footbed for traction in wet, snow, or mud conditions.
02
7.66″ Stepping Platform
Wide footbed sized for work and hiking boots. 33″ driver and passenger steps, 61.5″ sliding door step.
03
1.75″ Coated Aluminum Tube
Coated aluminum for corrosion resistance. Rated to approximately 400 lb per step.
04
Molded Brackets with Bended Tabs
Tabs bend to comform to factory rocker panel.
05
Installation
Approximately 2 hours, single person. Drill and basic hand tools. Light drilling on the inner panel only — no underbody modification.
01 / 06
01 β€” Hexagon Series

Sprinter Hexagon Drop Down Running Boards

$1,499 · 3 Piece Set

Three piece drop down running boards with a ribbed anti slip footbed. Driver, passenger, and sliding door steps on a 1.75″ coated aluminum tube. 7.66″ footbed. Available in 2 piece, 3 piece, or 4 piece configurations.

  • SKUE-HW-T-DRB-M-3PC
  • MaterialCoated aluminum
  • Tube1.75″ diameter
  • Footbed7.66″ wide, ribbed anti slip
  • Capacity~400 lb
  • WheelbaseFits 144″ and 170″
  • Compatibility2007+ Mercedes-Benz Sprinter
Shop
Full Specifications
SKUE-HW-T-DRB-M-3PC
MaterialCoated aluminum
Tube Diameter1.75″
Footbed Width7.66″ (195 mm) β€” ribbed anti slip
Driver / Passenger Step33″ × 7.66″ × 5.75″ · 7.32 lb
Sliding Door Step61.5″ × 7.66″ × 5.75″ · 14.88 lb
Support Bracket1.48 lb, molded, bended tabs
Weight Capacity~400 lb
Ground Clearance Reduction~6–8″
Install~2 hr, single person, drill & basic hand tools
Set Options2 piece, 3 piece, or 4 piece
WheelbaseFits 144″ and 170″
Compatibility2007+ Mercedes-Benz Sprinter
02 β€” Modular Series
Three pieces.
Three bracket sets.

Driver, passenger, and sliding door steps each mount on independent brackets. Install, adjust, or replace a single piece without removing the others.

02 β€” Modular Series

Modular
Drop Down
Running Boards

Three piece drop down running board system for 2007+ Sprinter vans. Separate driver, passenger, and sliding door steps, each on its own bracket set. 1.75″ coated aluminum tube. 6.30″ footbed. TIG welded support brackets. 400 lb rated.

01
Independent Three Piece Layout
Driver, passenger, and sliding door steps each mount on dedicated brackets. Replace a single piece without removing the others.
02
TIG Welded Brackets
Welded support brackets with bended tabs for undercoating clearance. 400 lb rated platform.
03
Configurable Set
Available as 2 piece (driver / passenger), 3 piece (adds sliding door), or 4 piece (adds second sliding door step).
Modular running boards installed
  Drag to rotate  Β·  Scroll to zoom
Bracket construction detail
Bracket & Tube Detail

TIG Welded
Support Brackets

01
TIG Welded Brackets
Welded brackets carry the load. Coated aluminum tube forms the stepping surface.
02
1.75″ Aluminum Tube
Coated aluminum for corrosion resistance. 6.30″ footbed. Rated to approximately 400 lb per step.
03
Bended Bracket Tabs
Tabs bend to clear factory undercoating. No grinding or surface prep required.
04
Installation
Approximately 2 hours, single person. Drill and basic hand tools. Light drilling on the inner panel only.
05
Independent Replacement
Each step mounts independently. Service or replace individual pieces without removing the rest of the system.
01 / 06
02 β€” Modular Series

Tec Vanlife Modular Drop Down Running Boards

$1,399 · 3 Piece Set

Three piece drop down running board system for 2007+ Sprinter vans. 1.75″ coated aluminum tube. 6.30″ footbed. TIG welded support brackets. Available in 2 piece, 3 piece, or 4 piece configurations.

  • SKUE-HW-T-DRB-3PC
  • MaterialCoated aluminum · TIG welded brackets
  • Tube1.75″ diameter
  • Footbed6.30″ wide
  • Capacity~400 lb
  • WheelbaseFits 144″ and 170″
  • Compatibility2007+ Mercedes-Benz Sprinter
Shop
Full Specifications
SKUE-HW-T-DRB-3PC
MaterialCoated aluminum tube · TIG welded brackets
Tube Diameter1.75″
Footbed Width6.30″
Driver / Passenger Step33.25″ × 6.30″ × 6.90″
Sliding Door Step61.8″ × 6.30″ × 6.90″
Weight Capacity~400 lb
Ground Clearance Reduction~6–8″
Install~2 hr, single person, drill & basic hand tools
Set Options2 piece, 3 piece, or 4 piece
WheelbaseFits 144″ and 170″
Compatibility2007+ Mercedes-Benz Sprinter
HardwareComplete mounting kit included
03 β€” Full Length
Single piece board,
end to end.

103.9″ for 144″ wheelbase. 130.7″ for 170″. Continuous footbed with no gap at the slider.

03 β€” Full Length Series

Full Length
Drop Down
Running Boards

Single piece drop down running board per side for 2007+ Sprinter vans. 103.9″ for 144″ wheelbase, 130.7″ for 170″. 1.75″ coated aluminum tube. 6.30″ footbed. TIG welded support brackets. 400 lb rated.

103.9″
144 WB Length
130.7″
170 WB Length
$1,599
Sale Price
03
  Drag to rotate  Β·  Scroll to zoom
Installed detail
Side profile
Rear angle
Full Length boards installed
Series Features

Single Piece
Construction

01
Continuous Single Piece Board
Uninterrupted footbed from cab door to rear wheel well. 103.9″ on 144″ wheelbase, 130.7″ on 170″.
02
Wheelbase Specific Fitment
Separate 144″ and 170″ kits. Each board is dimensioned to align with factory body cuts.
03
Coated Aluminum
1.75″ coated aluminum tube on TIG welded support brackets. 6.30″ footbed. 400 lb rated.
04
Bended Bracket Tabs
Tabs bend to clear factory undercoating. No grinding or surface prep required.
05
Installation
Approximately 2 hours, single person. Drill and basic hand tools. Light drilling on the inner panel only.
01 / 06
03 β€” Full Length Series

Tec Vanlife Full Length Drop Down Running Boards

$1,599 $1,849

Single piece drop down running board per side for 2007+ Sprinter vans. 103.9″ for 144″ wheelbase, 130.7″ for 170″. 1.75″ coated aluminum tube. 6.30″ footbed. TIG welded support brackets.

  • SKUE-HW-T-DRB-S-FL-144 / -170
  • MaterialCoated aluminum · TIG welded brackets
  • Tube1.75″ diameter
  • Footbed6.30″ wide
  • 144″ WB Length103.9″ (2640 mm)
  • 170″ WB Length130.7″ (3320 mm)
  • Capacity~400 lb
  • Compatibility2007+ Mercedes-Benz Sprinter
Shop
Full Specifications
SKUE-HW-T-DRB-S-FL-144 / -170
MaterialCoated aluminum tube · TIG welded brackets
Tube Diameter1.75″
Footbed Width6.30″
144″ Board103.9″ × 6.30″ × 6.90″ (2640 × 160 × 175 mm)
170″ Board130.7″ × 6.30″ × 6.90″ (3320 × 160 × 175 mm)
Weight Capacity~400 lb
Ground Clearance Reduction~6–8″
Install~2 hr, single person, drill & basic hand tools
Wheelbase144″ and 170″ (wheelbase specific kits)
Compatibility2007+ Mercedes-Benz Sprinter
HardwareComplete mounting kit included
