Sprinter Interior System

Wall &
Ceiling
L-Track
System

A structural foundation system for Mercedes-Benz Sprinter builds. Predrilled aluminum mounting plates convert factory side wall and ceiling sheet metal into reinforced, load bearing anchor points.

6061
T6 Aluminum
Solo
Install Ready
Predrilled
No Layout Work

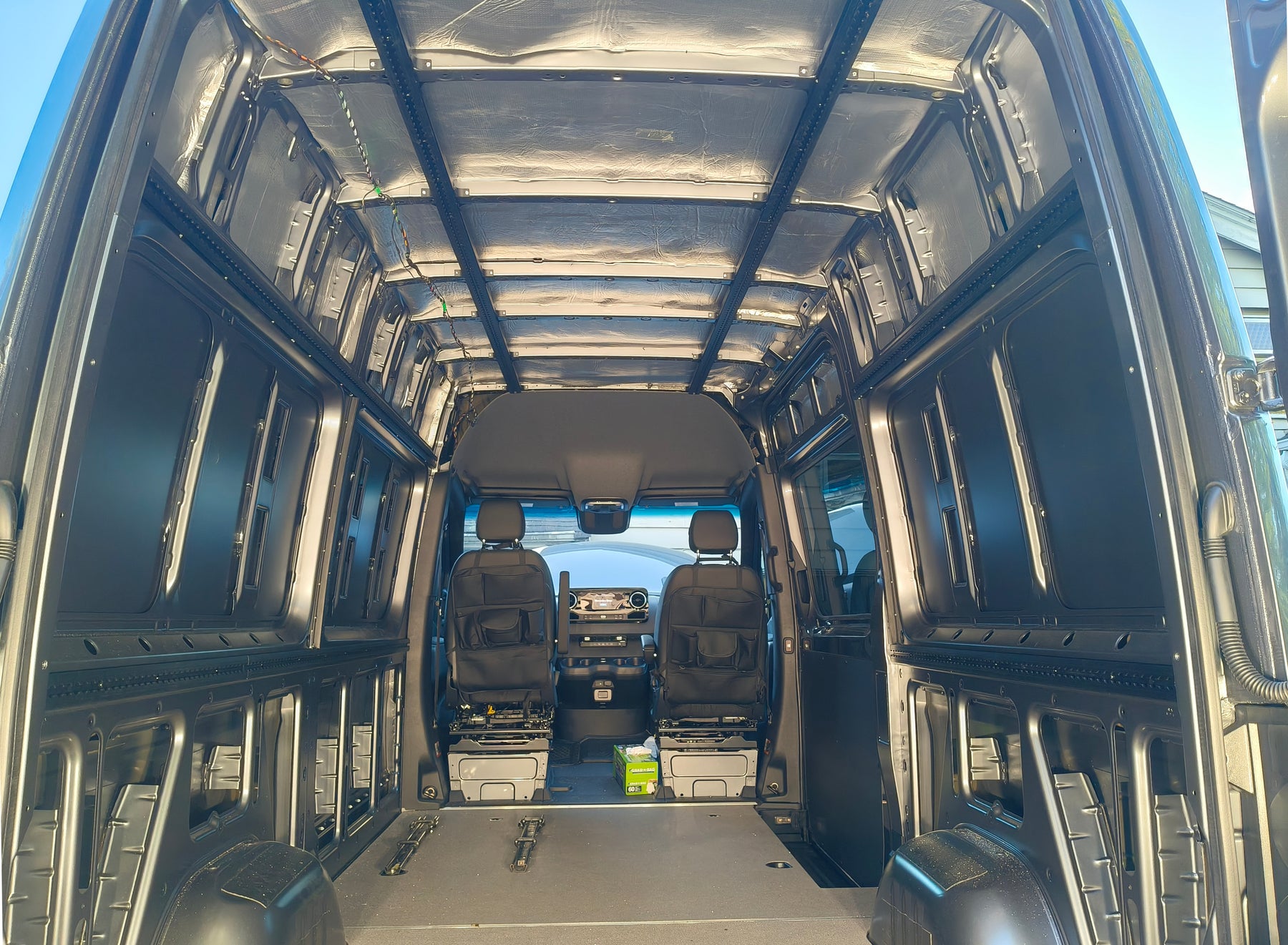

Sprinter Wall Mounting Plate System
Two Kits — One System

The Complete
Sprinter Interior
Anchor Grid

Each kit installs independently and is designed to work together. The Wall Kit covers both side walls while the Ceiling Kit spans the full overhead length. Together they create an unbroken L-Track grid across every buildable surface.

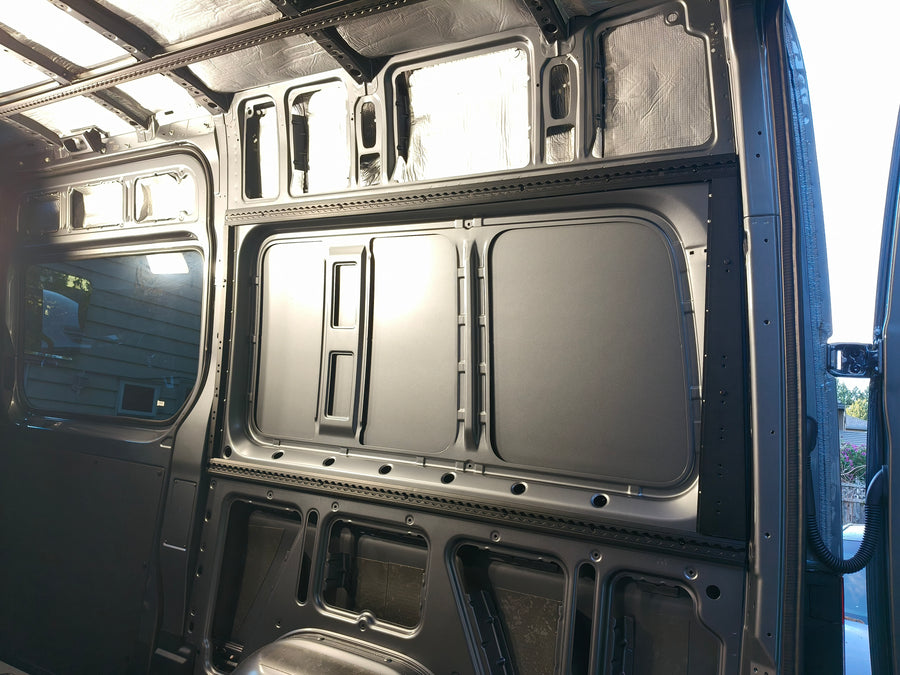

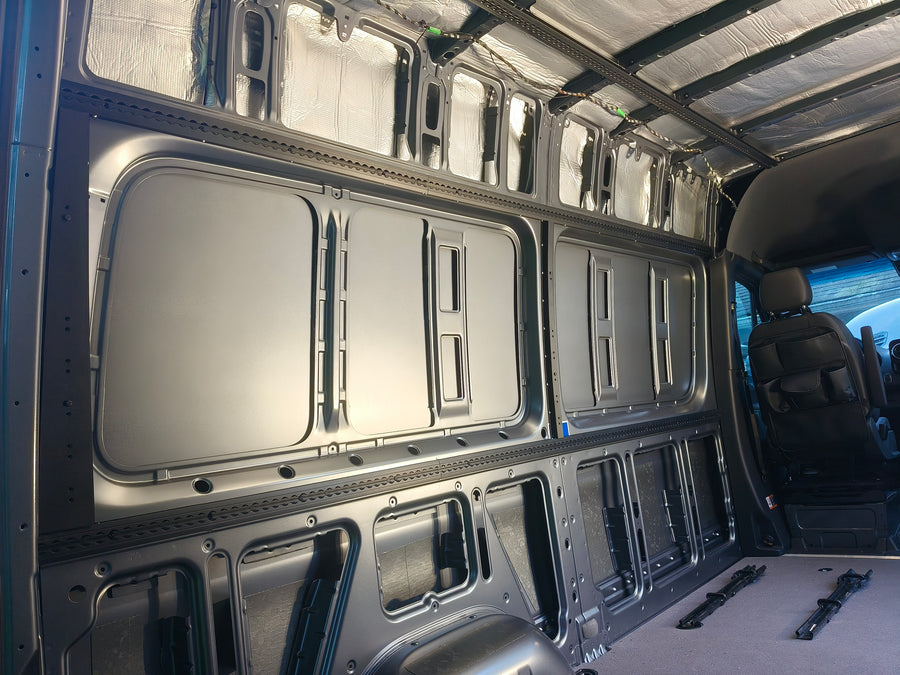

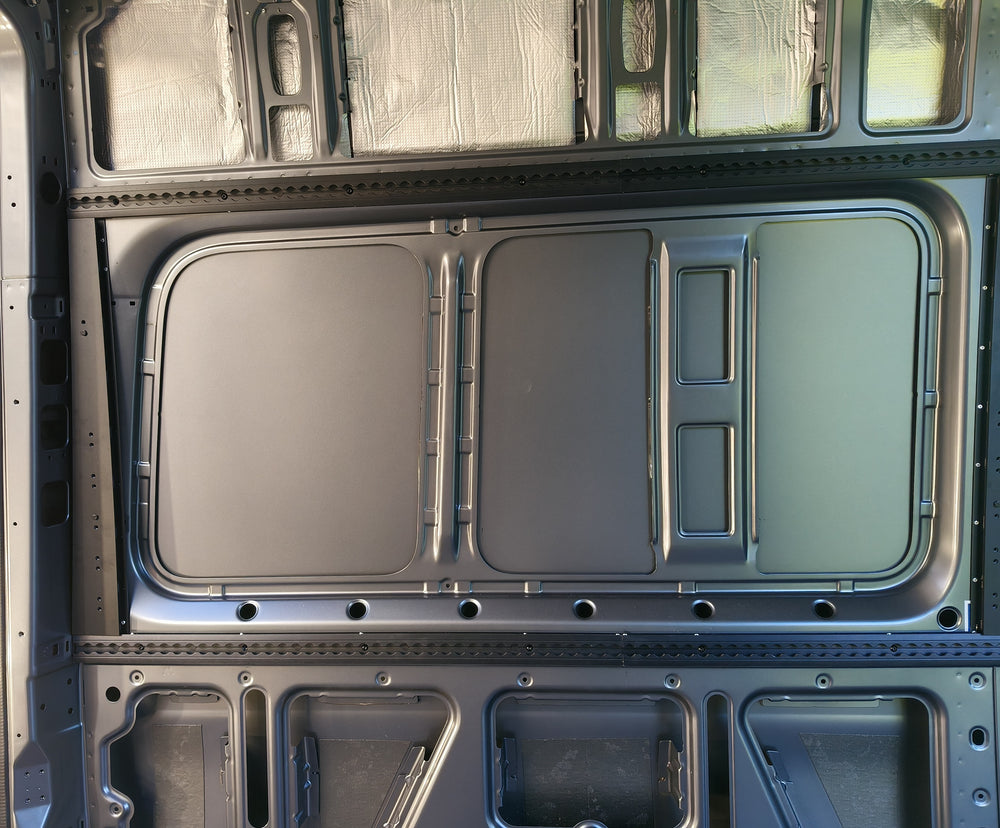

Wall Kit installed
01 — Side Wall Kit

Wall Mounting Plate
& L-Track Kit

Horizontal plates stack sequentially on both the driver and passenger side. Kit includes integrated rivnuts and sequential labels.

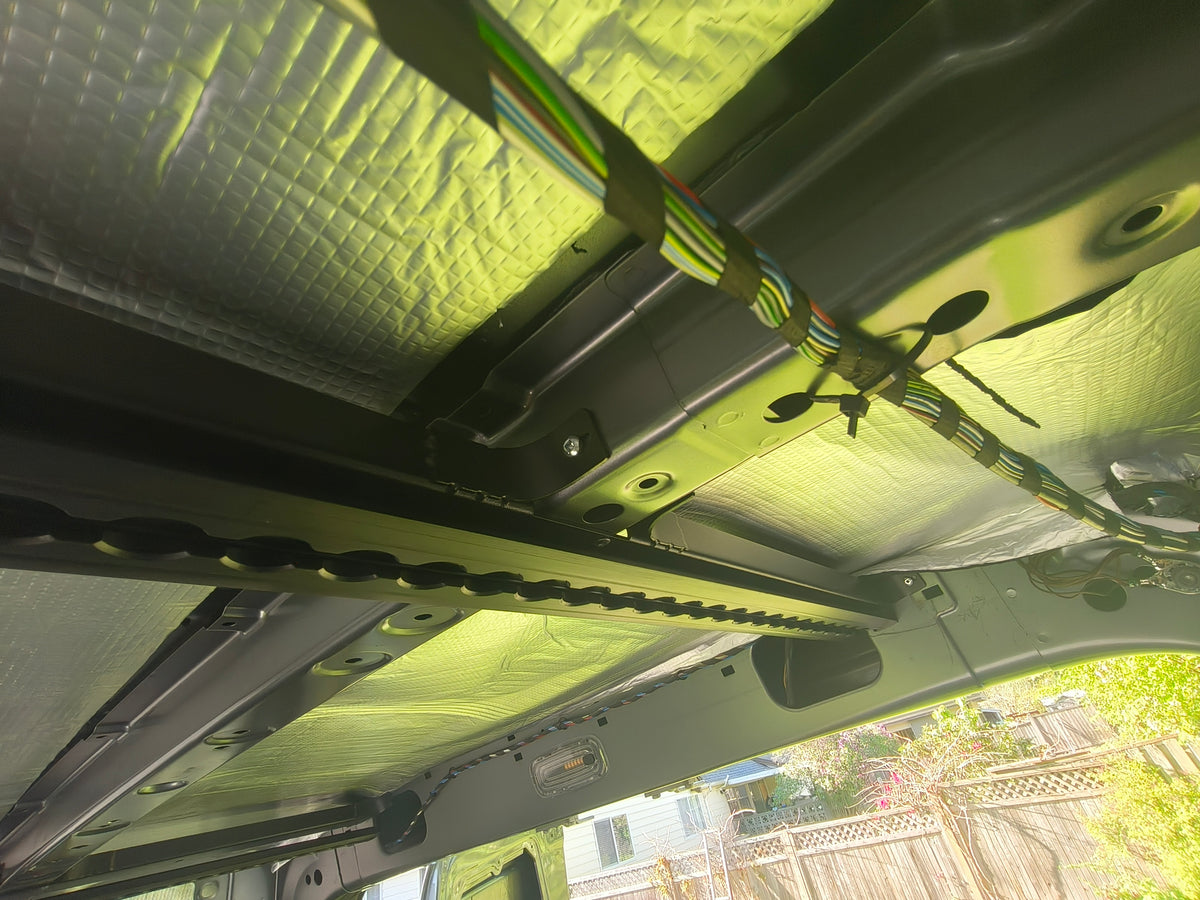

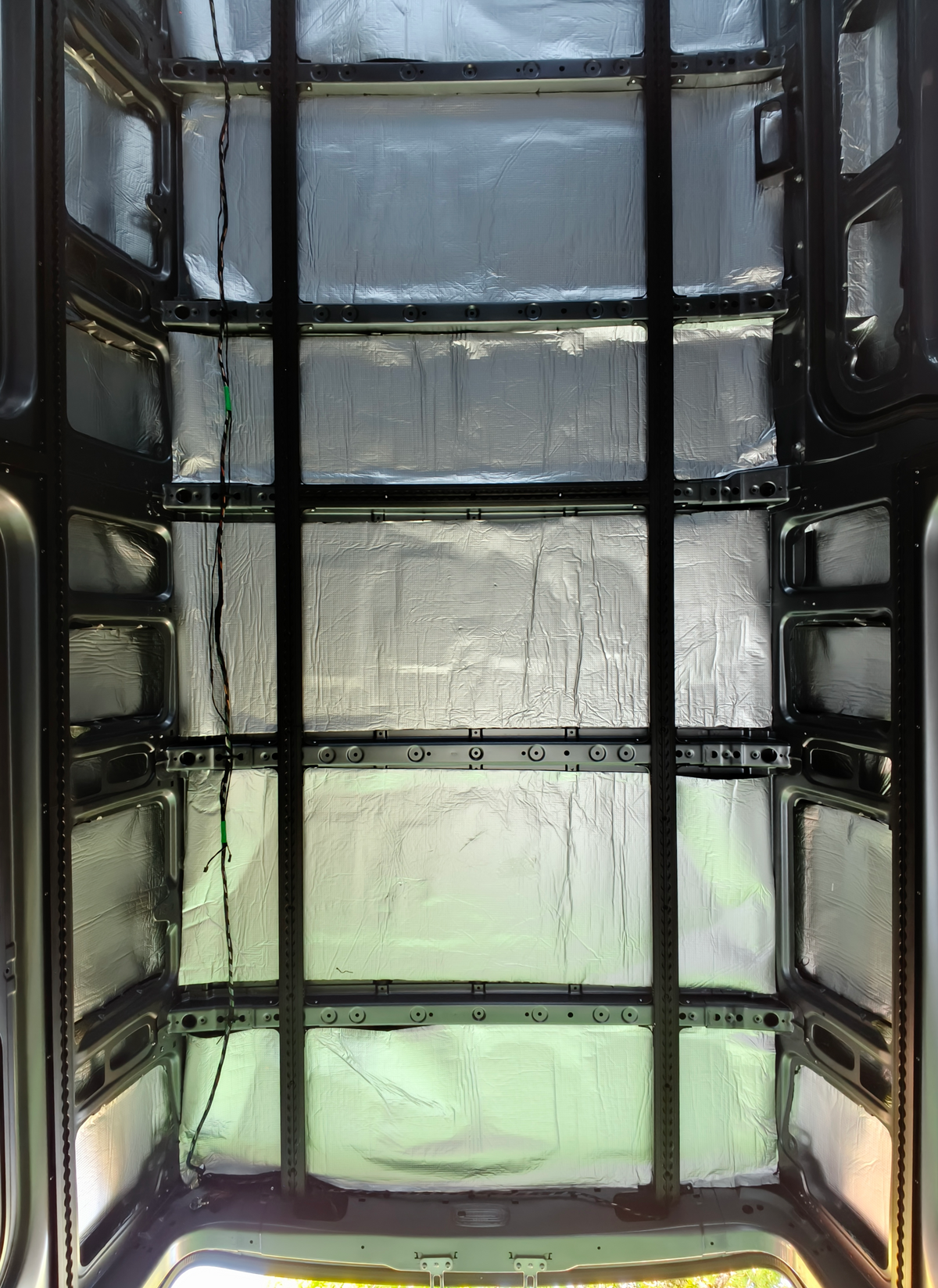

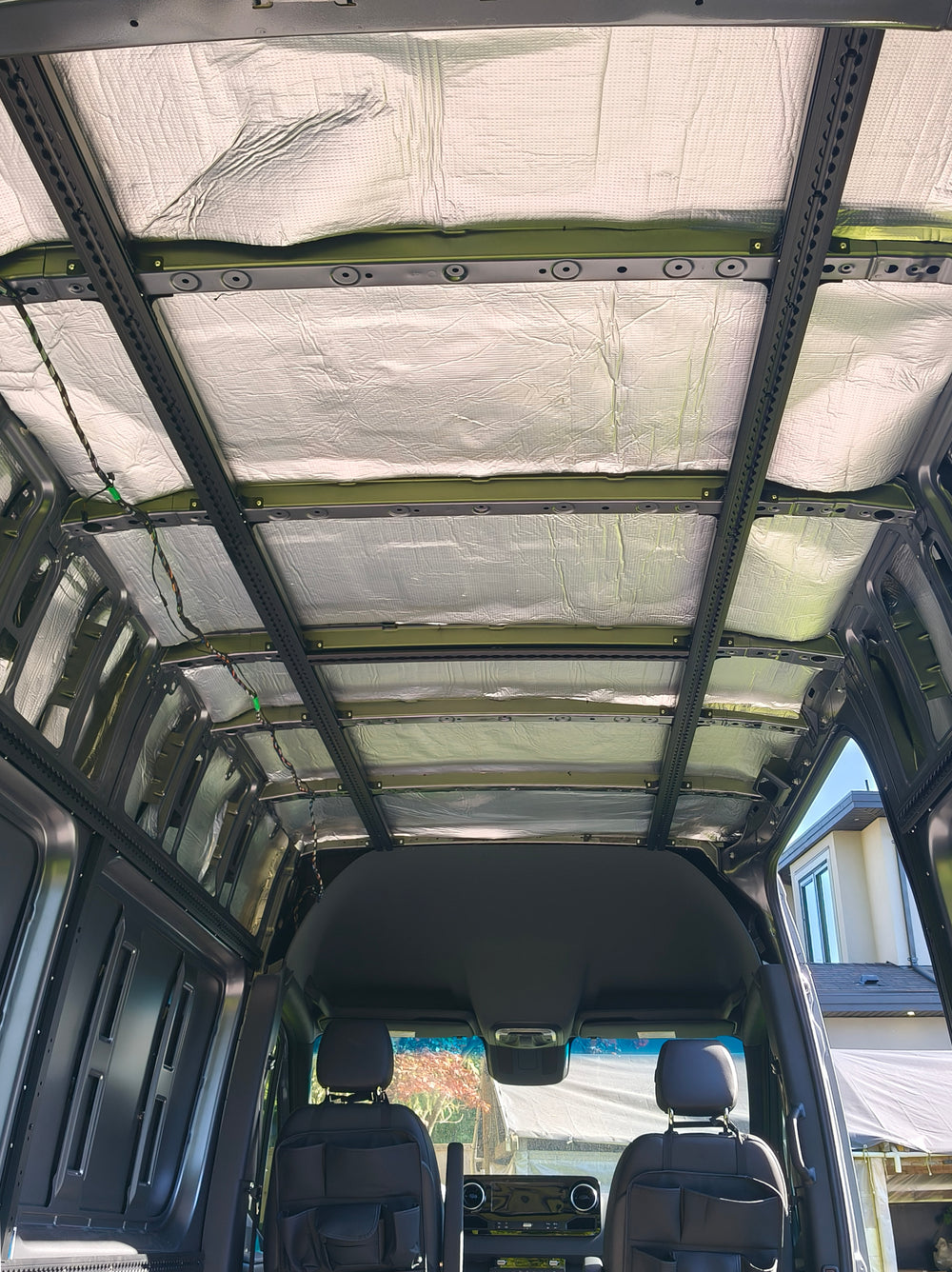

Ceiling Kit installed
02 — Ceiling Kit

Ceiling Mounting Plate
& L-Track Kit

Mounts to factory roof crossbeams. 6061-T6 aluminum L-Track runs across the full ceiling length.

Side Wall Kit

Wall Mounting
Plate &
L-Track Kit

Converts factory Sprinter side wall sheet metal into reinforced, full length anchor zones. Standardized mounting plates create repeatable builds — the same structural approach whether you're installing a cargo liner or a full camper conversion. Predrilled, labeled, ready to mount.

144″
Standard WB
170″
Extended WB
2019+
Sprinter
01
  Drag to rotate  ·  Scroll to zoom

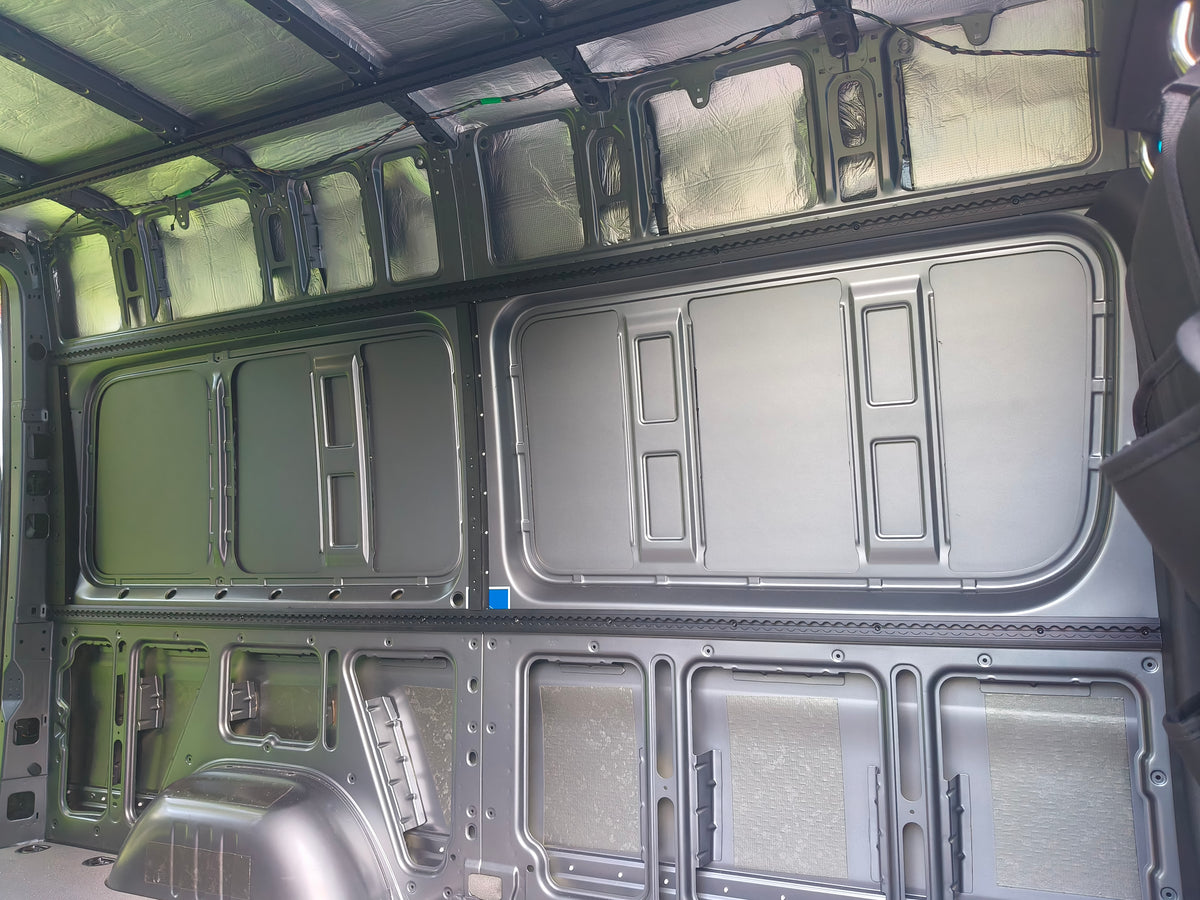

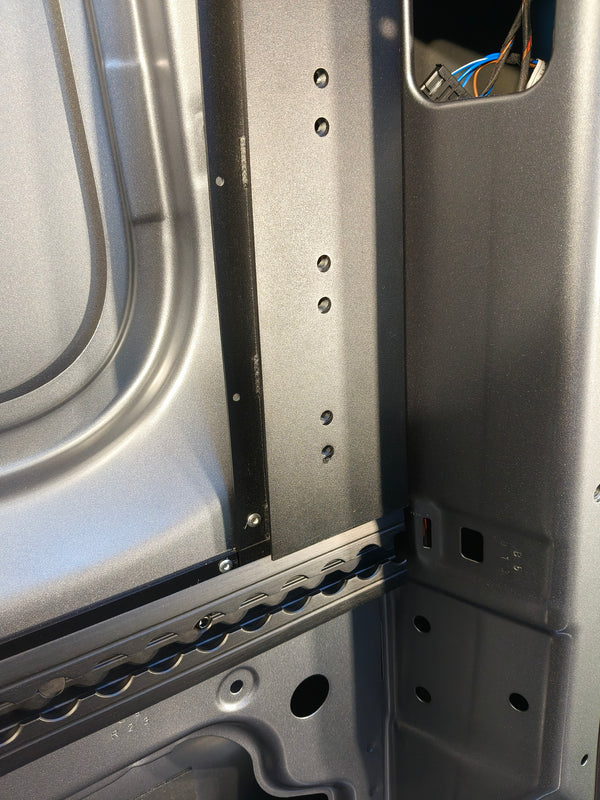

Wall Kit installation detail
System Features

Built to the
Sprinter's Structure

01
Predrilled & Labeled
Every plate arrives drilled and numbered in installation sequence — no measuring, no guesswork.
02
Integrated Rivnuts
Rivnuts come preinstalled in every plate with fixed thread alignment — no spin jam when you run the fastener.
03
6061-T6 Aluminum
Aerospace alloy plates distribute load across the factory panel surface and reduce flex and pull through under heavy mounts.
04
Universal L-Track
Standard aviation spec profile. Compatible with any single or double stud fitting from any manufacturer.
05
Anodized Finish
Premium anodized surface resists corrosion from road salt, condensation, and long term cargo exposure inside the van.
01 / 06
01 — Side Wall Kit

Wall Mounting Plate & L-Track Kit

Converts factory Sprinter side wall sheet metal into reinforced, load bearing anchor points. Predrilled and labeled plates create standardized mounting zones for beds, overhead cabinets, and wall components.

  • SKUI-FX-Z-MLK-W-144 / -170
  • Material6061-T6 aluminum, anodized
  • Wheelbase144″ and 170″
  • Single Point Load Limit77 lb (35 kg)
  • Full Backplate Load Limit441 lb (200 kg)
  • Compatibility2019+ Mercedes-Benz Sprinter
Shop
Full Specifications
SKUI-FX-Z-MLK-W-144 / -170
Material6061-T6 aluminum, anodized
Wall Plates8 total (4 driver / 4 passenger, labeled)
Fastener SystemPreinstalled rivnuts
Single Point Load Limit77 lb (35 kg)
Full Backplate Load Limit441 lb (200 kg)
Wheelbase144″ and 170″
Compatibility2019+ Mercedes-Benz Sprinter
HardwareComplete fastener kit included

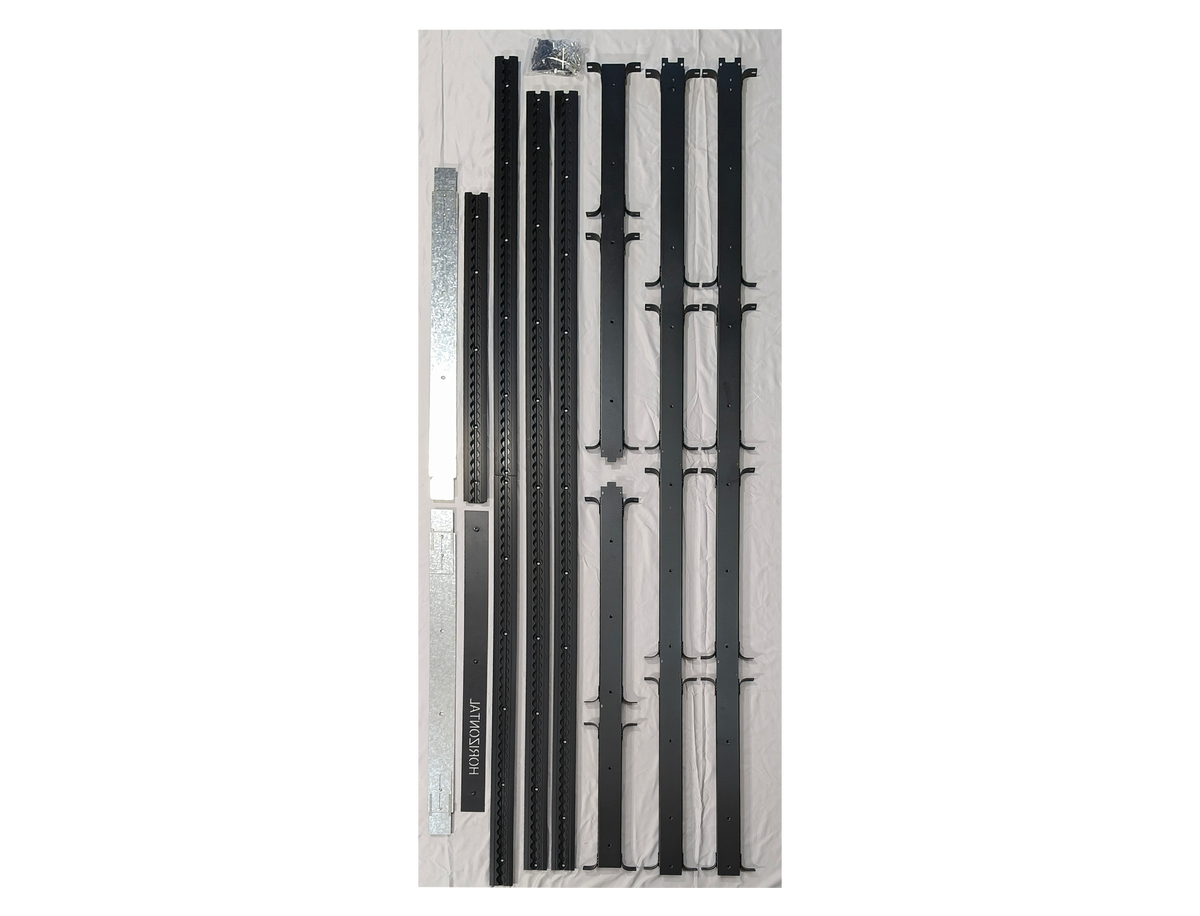

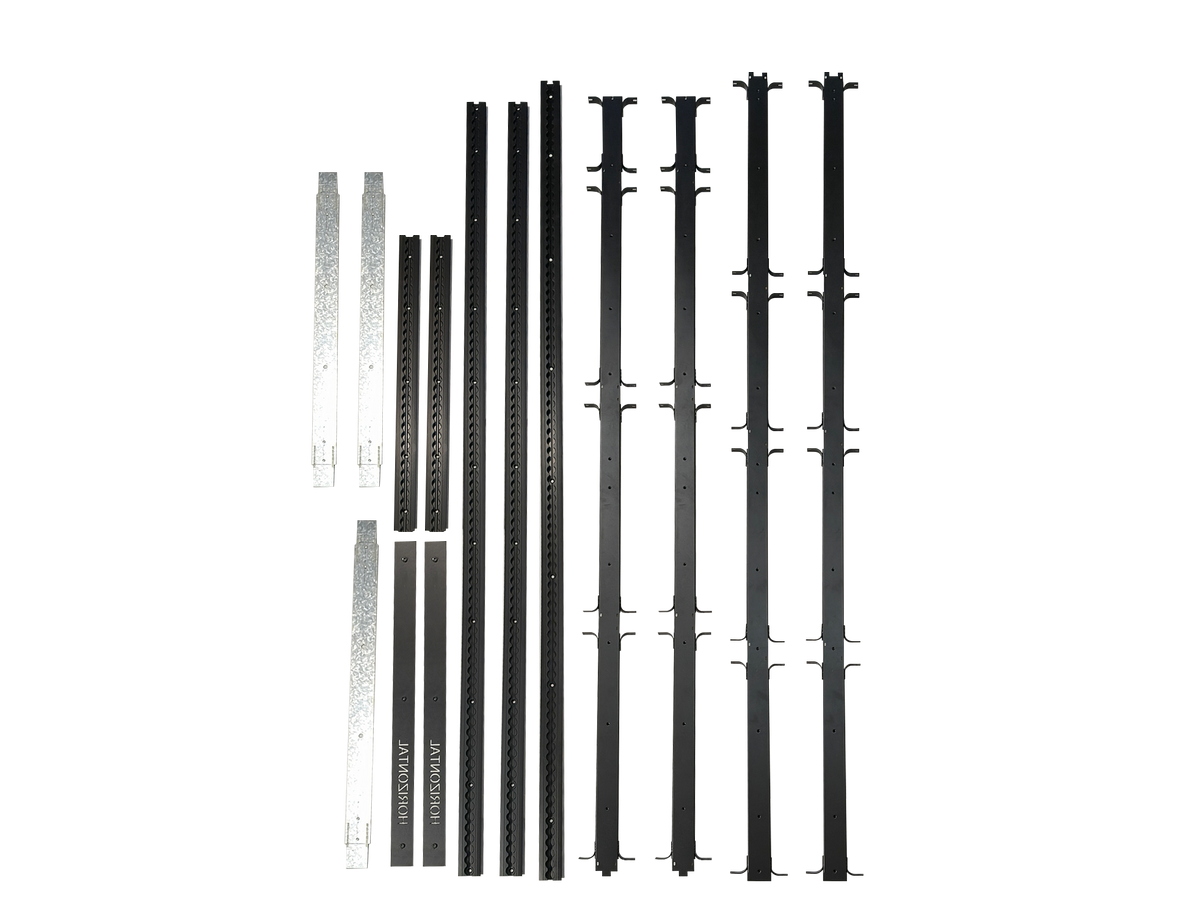

02 — Ceiling Kit
Full length coverage
across the ceiling.

6061-T6 aluminum L-Track mounts to factory roof crossbeams. Built to support beds, overhead cabinets, and ceiling mounted components.

02 — Ceiling Kit

Ceiling Mounting
Plate &
L-Track Kit

Mounts to the Sprinter's factory roof crossbeam structure. Load spreading plates distribute force through existing reinforcement points and create a rigid backbone across the full ceiling length. 6061-T6 aluminum L-Track runs longitudinally for overhead component anchoring.

01
Factory Crossbeam Mount
Load spreading plates anchor into the Sprinter's factory roof crossbeam structure — force transfers through existing reinforcement, not bare sheet metal.
02
6061-T6 Aluminum L-Track
Robust mounting rail for securing cabinets, panels, cargo, and other interior components inside your van.
03
Pairs with Wall Kit
Designed to extend the side wall L-track anchor grid overhead — complete interior coverage.

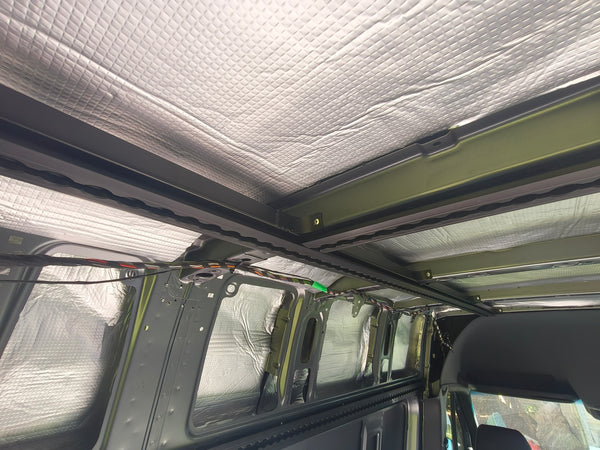

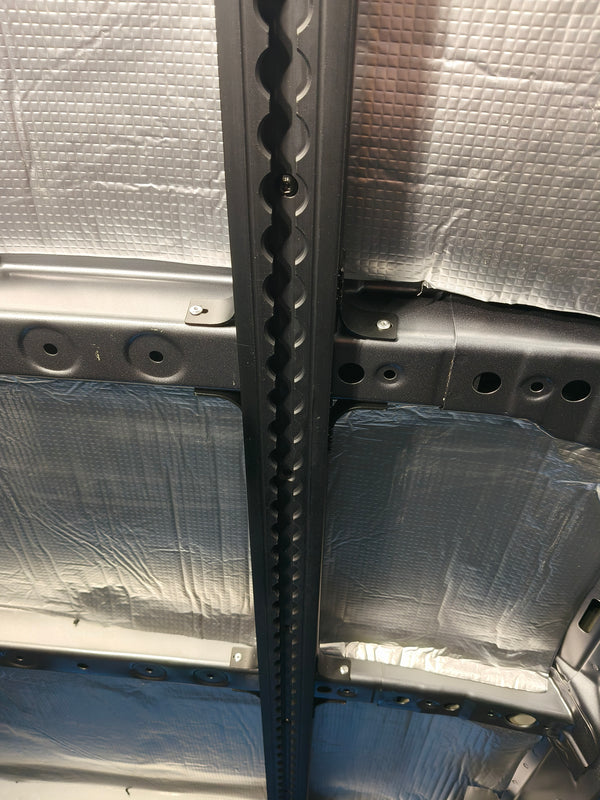

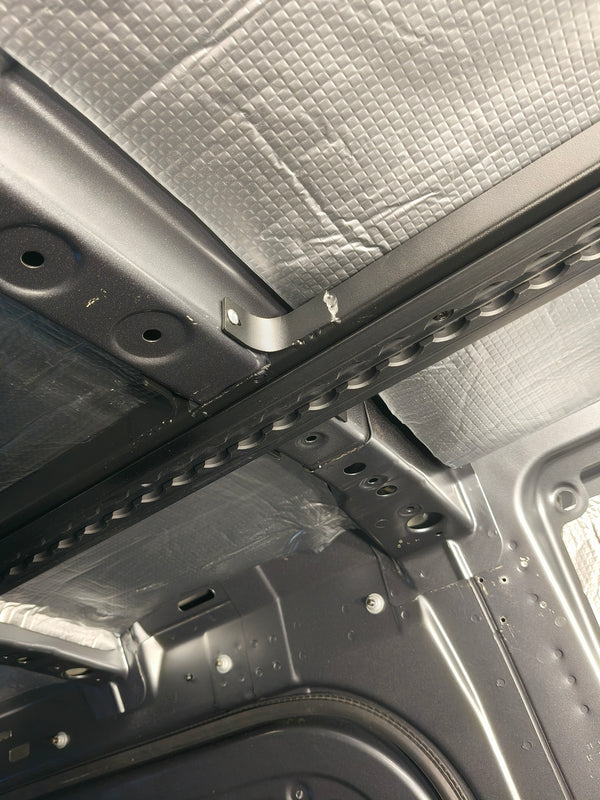

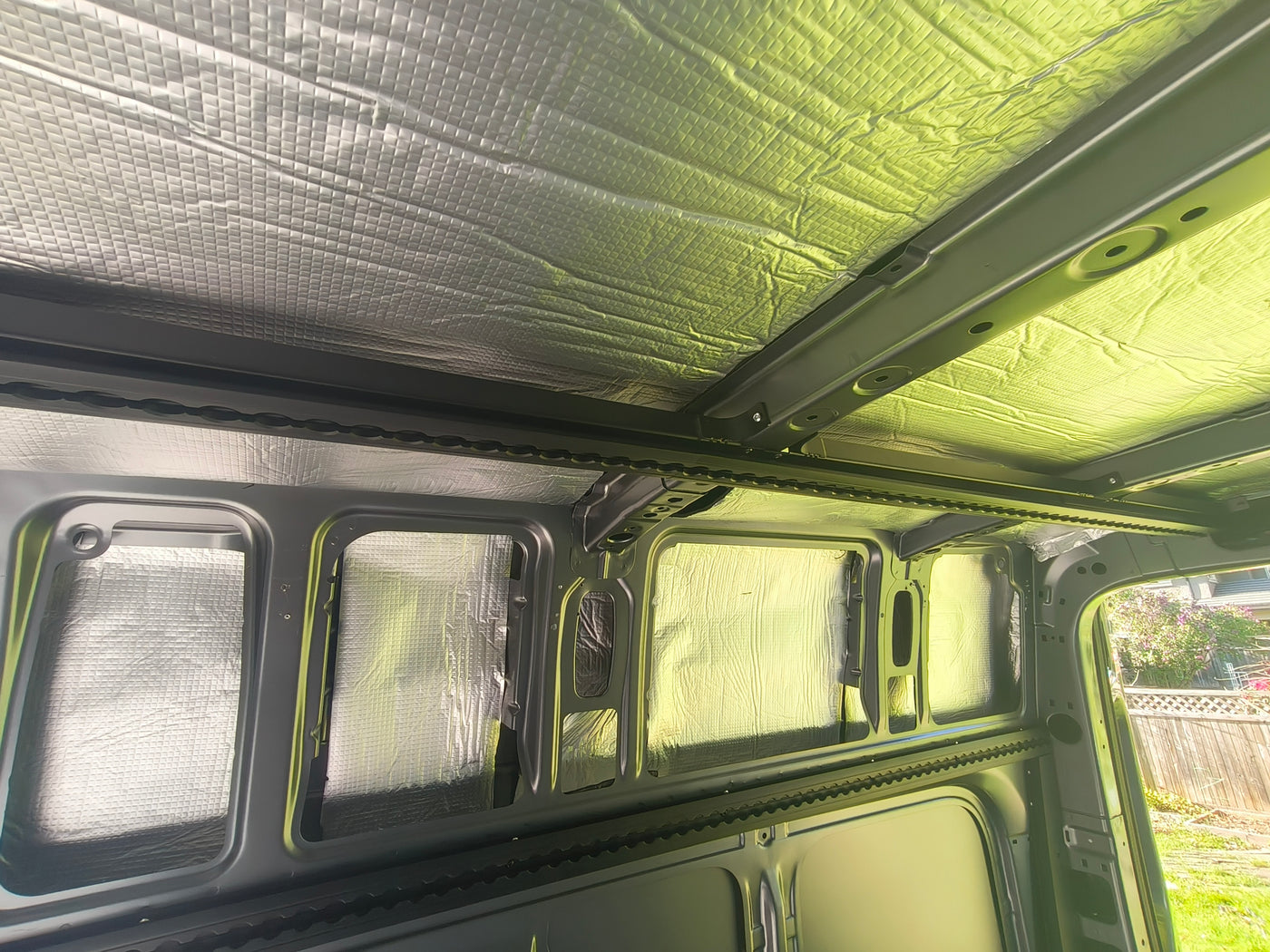

Ceiling Kit installation
  Drag to rotate  ·  Scroll to zoom
01 / 06
02 — Ceiling Kit

Ceiling Mounting Plate & L-Track Kit

Mounts to factory Sprinter roof crossbeams with load spreading plates that create a rigid backbone across the full ceiling length. Built to support beds, overhead cabinets, fan shrouds, and other ceiling mounted components.

  • SKUI-FX-Z-MLK-C-144 / -170
  • Material6061-T6 aluminum, anodized
  • Wheelbase144″ and 170″
  • Single Point Load Limit77 lb (35 kg)
  • Full Backplate Load Limit441 lb (200 kg)
  • Compatibility2019+ Mercedes-Benz Sprinter
Shop
Full Specifications
SKUI-FX-Z-MLK-C-144 / -170
Material6061-T6 aluminum, anodized
L-Track CompatibilityUniversal — single & double stud
Mounting MethodFactory roof crossbeams
Single Point Load Limit77 lb (35 kg)
Full Backplate Load Limit441 lb (200 kg)
Wheelbase144″ and 170″
Compatibility2019+ Mercedes-Benz Sprinter
HardwareComplete fastener kit included
