2019+ Sprinter Scopema V3 Seat Swivels
Couldn't load pickup availability

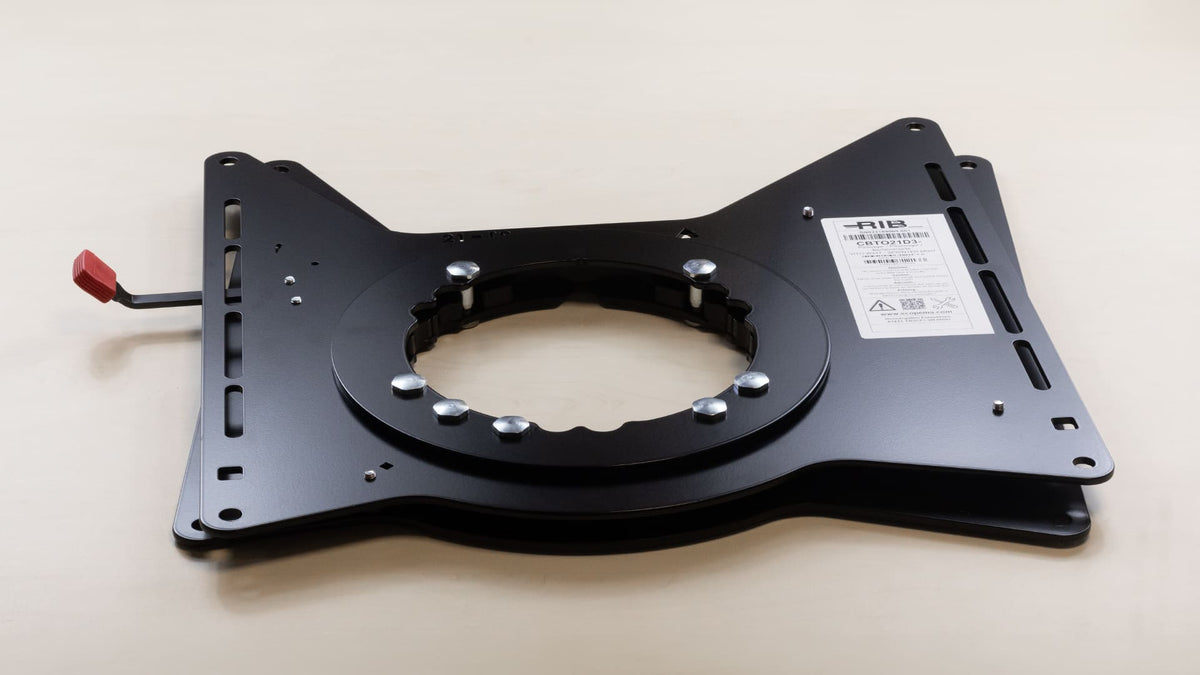

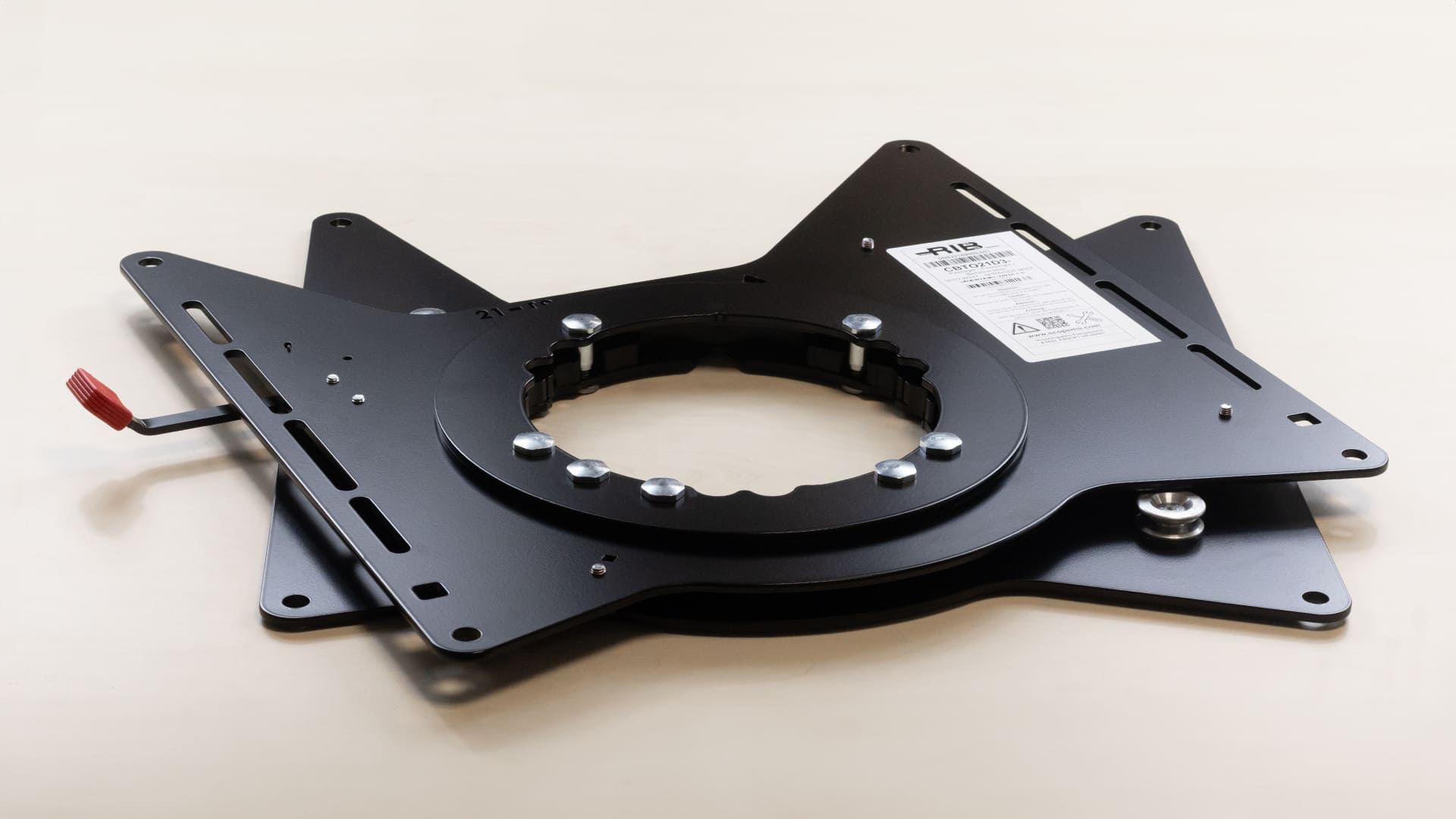

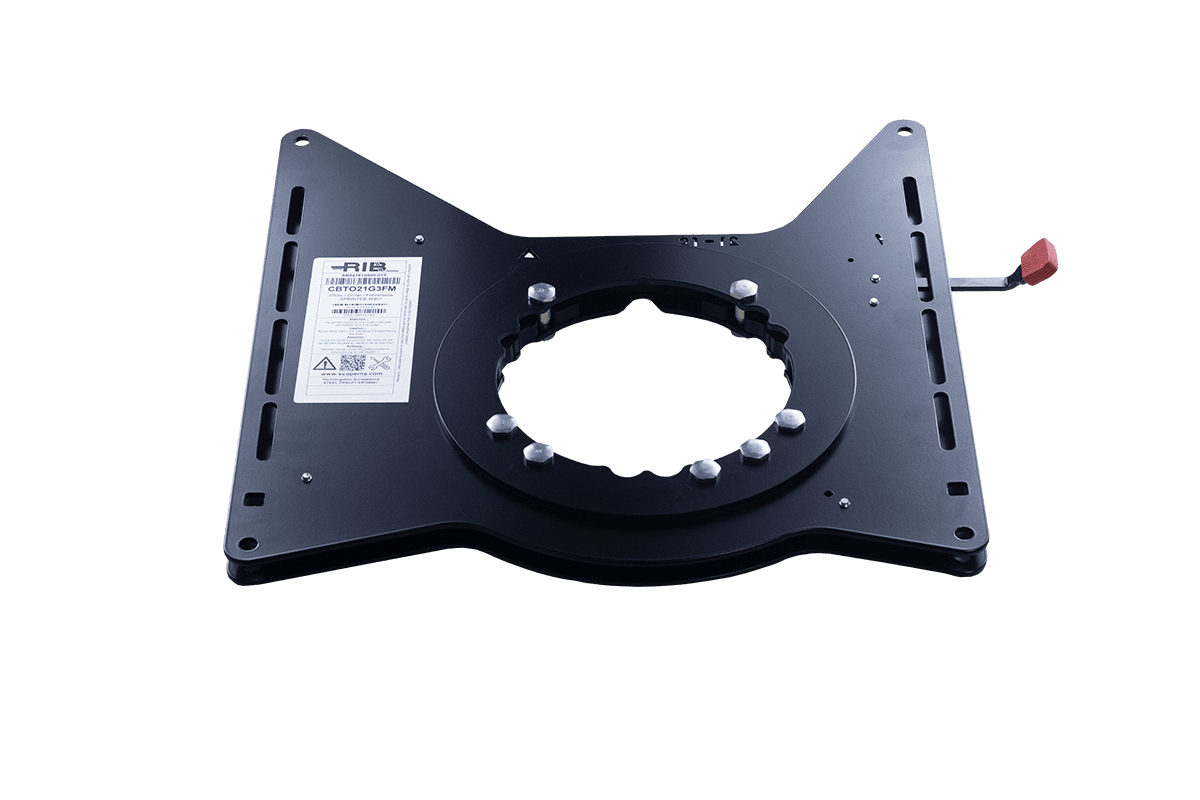

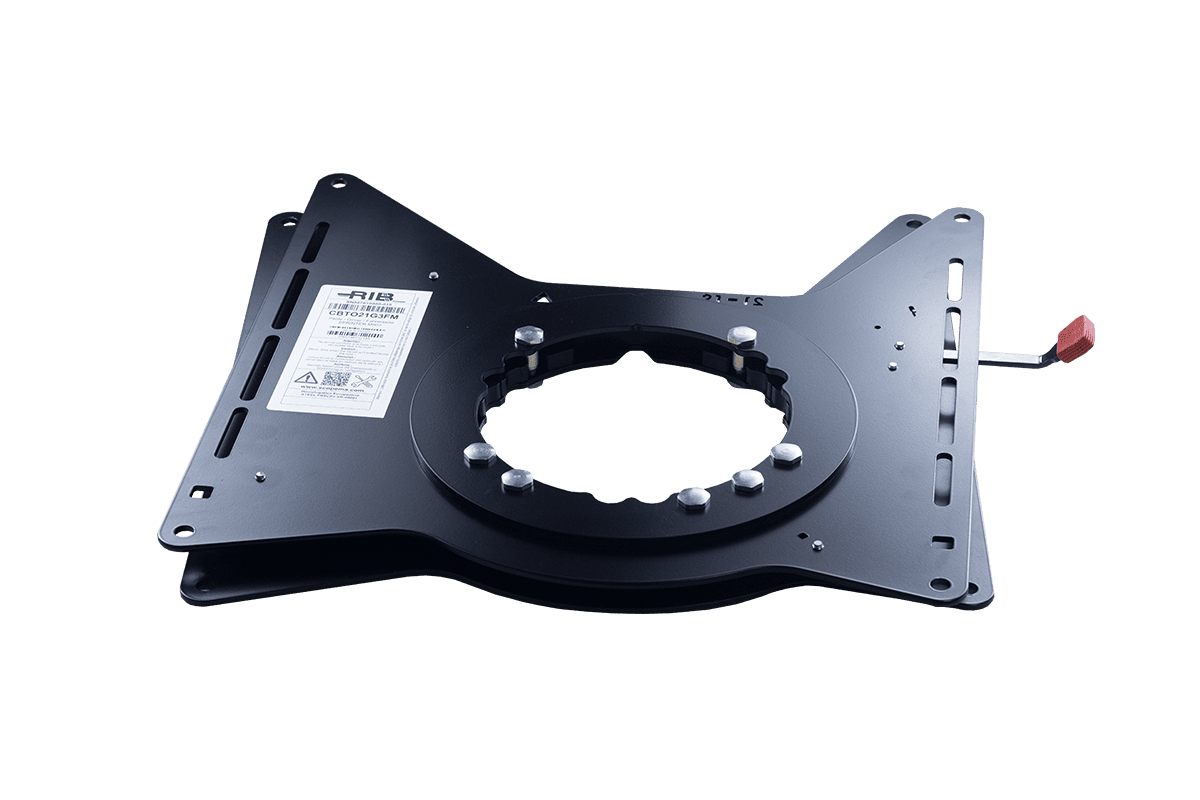

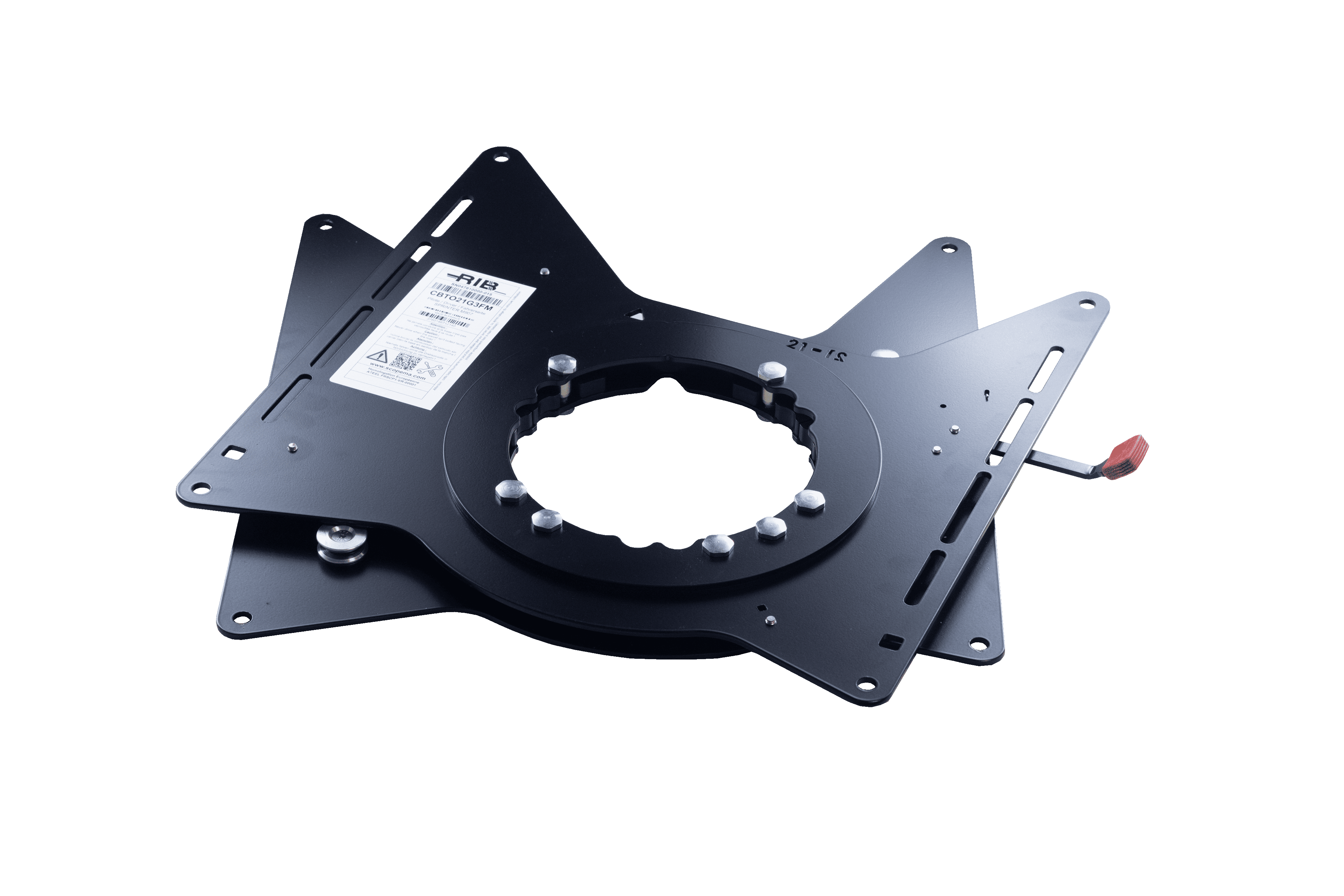

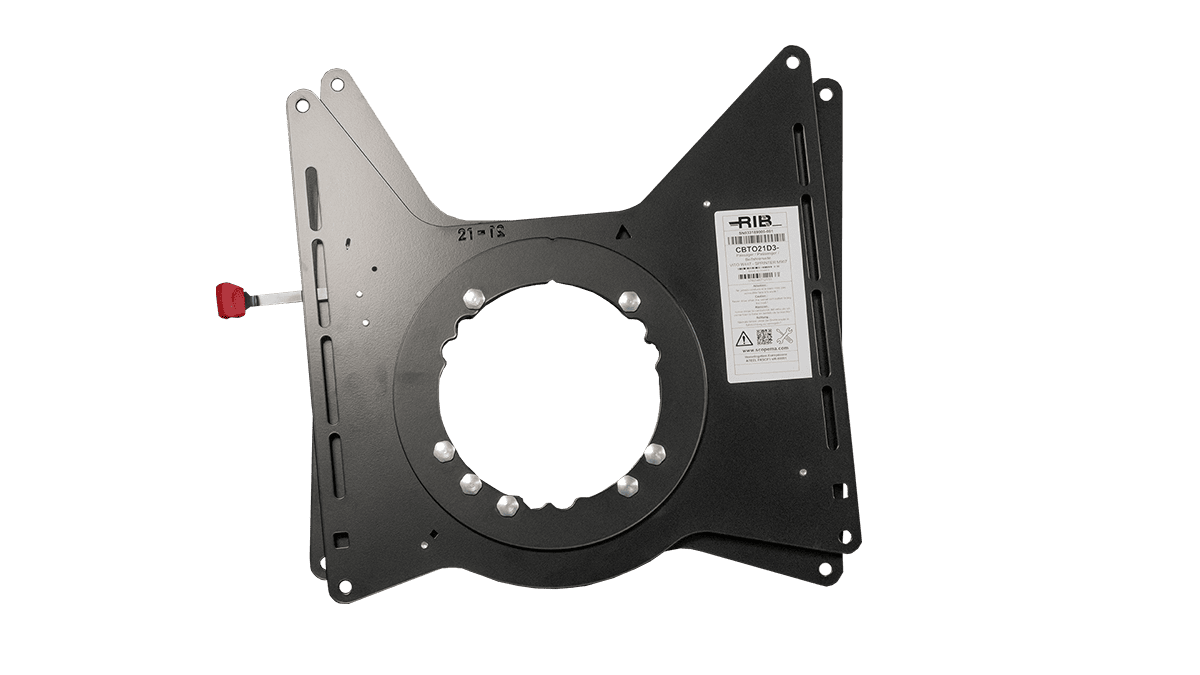

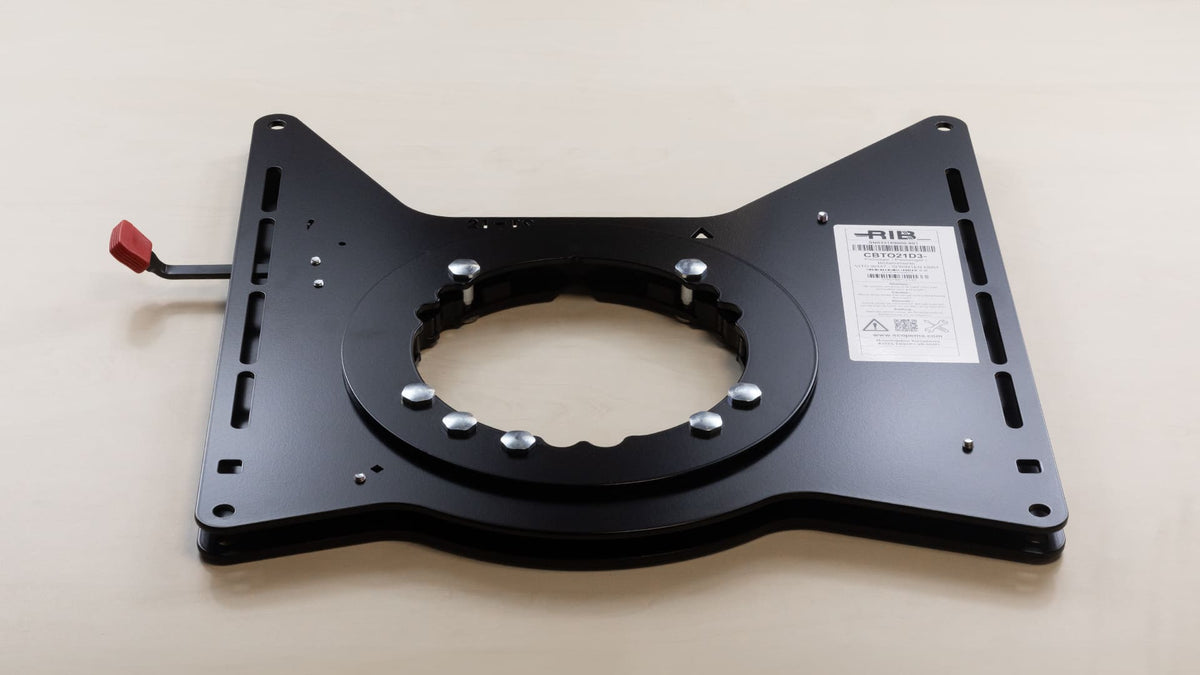

Scopema V3 seat swivels for 2019+ Mercedes Sprinter M907/M910 vans, designed to rotate the factory front seats up to 180 degrees toward the rear living area for improved cab to camper usability.
- Download driver side installation instructions [PDF]
- Download passenger side installation instructions [PDF]
Key Features:
- Designed for 2019+ Mercedes Sprinter M907/M910 vans
- Allows the factory front seat to rotate up to 180 degrees toward the rear living area
- Helps turn the cab seats into usable seating space when parked
- Low profile V3 design with a 21 mm swivel base height

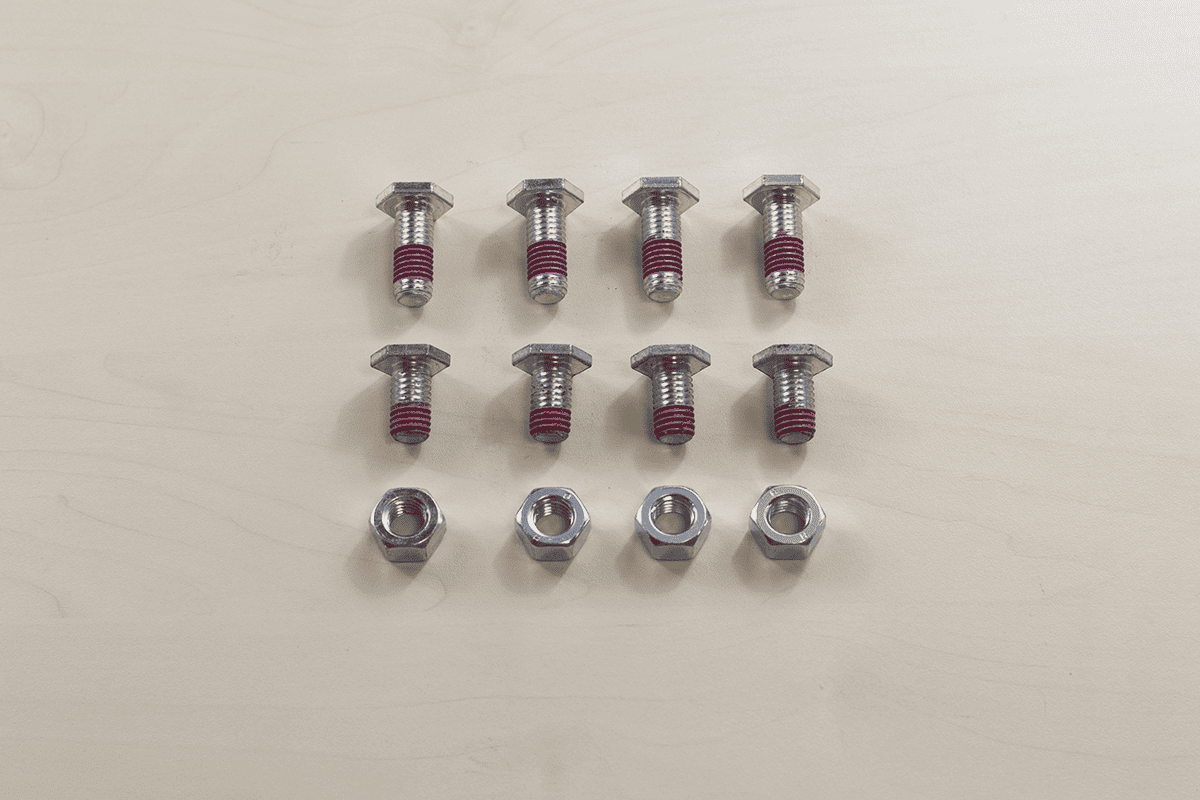

- Uses factory seat mounting points for installation
- Large center opening helps with factory seat wiring clearance
- Locks in the forward facing driving position
- Built from 5 mm steel plate for strength and stability
- Made in France by Scopema
Measurements:
- Overall Size: 450 mm x 440 mm x 21 mm
- Swivel Base Height: 21 mm
- Steel Plate Thickness: 5 mm
- Swivel Weight: 8.5 kg
- Handbrake Lowering Kit Weight: 3.04 kg
Description:
These Scopema V3 seat swivels are designed for 2019+ Mercedes Sprinter M907/M910 vans with original single front seats. They allow the factory front seats to rotate up to 180 degrees toward the rear of the van, helping turn the cab area into usable seating space when parked.
The V3 swivel uses a low profile steel design with a 21 mm swivel base height. The 5 mm steel plate construction provides a strong and stable swivel base, while the large center opening helps route factory seat wiring through the swivel. The factory mounting pattern keeps installation straightforward.

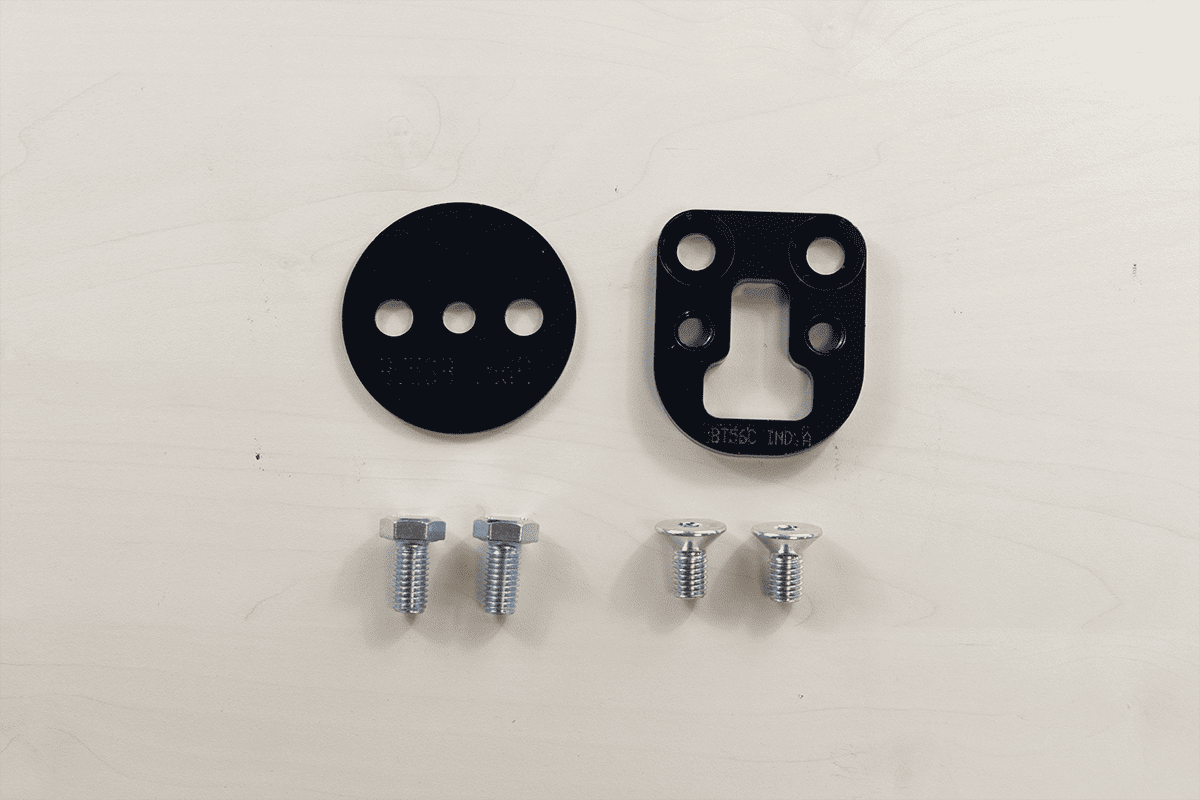

The driver side option includes a handbrake lowering kit to provide the clearance needed for driver side seat rotation. The passenger side option does not require a handbrake lowering kit. These swivels are not designed for suspension seats or double bench seats.
The swivel locks in the forward facing driving position. For safety, the seat must always be locked forward before driving.
FAQ:
1. Do I need the handbrake kit with my parking brake setup?
The handbrake kit is required if your vehicle uses a manual parking brake lever located beside the driver’s seat. If your vehicle has an electronic parking brake, the handbrake kit is not required.
