2007-2018 Sprinter Scopema V3 Seat Swivels

Scopema V3 seat swivels for 2007-2018 Mercedes Sprinter vans, designed to rotate the factory front seats toward the rear living area for improved cab to camper usability.

- Download driver side installation instructions [PDF]

- Download passenger side installation instructions [PDF]

Key Features:

• Designed for 2007 to 2018 Mercedes Sprinter vans
• Allows the factory front seat to rotate toward the rear living area
• Helps turn the cab seats into usable seating space when parked
• Low profile V3 design with a 21 mm swivel base height
• Uses factory seat mounting points for installation
• Center cable pass through helps with factory seat wiring routing
• Locks in the forward facing driving position
• Built from 5 mm steel plate for strength and stability
• Steel construction
• Made in France

Measurements:

• Swivel Base Height: 21 mm
• Steel Plate Thickness: 5 mm
• Swivel Weight: 8.5 kg


Description:

These Scopema V3 seat swivels are designed for 2007 to 2018 Mercedes Sprinter vans with original single front seats. They allow the factory front seats to rotate toward the rear of the van, helping turn the cab area into usable seating space when parked.

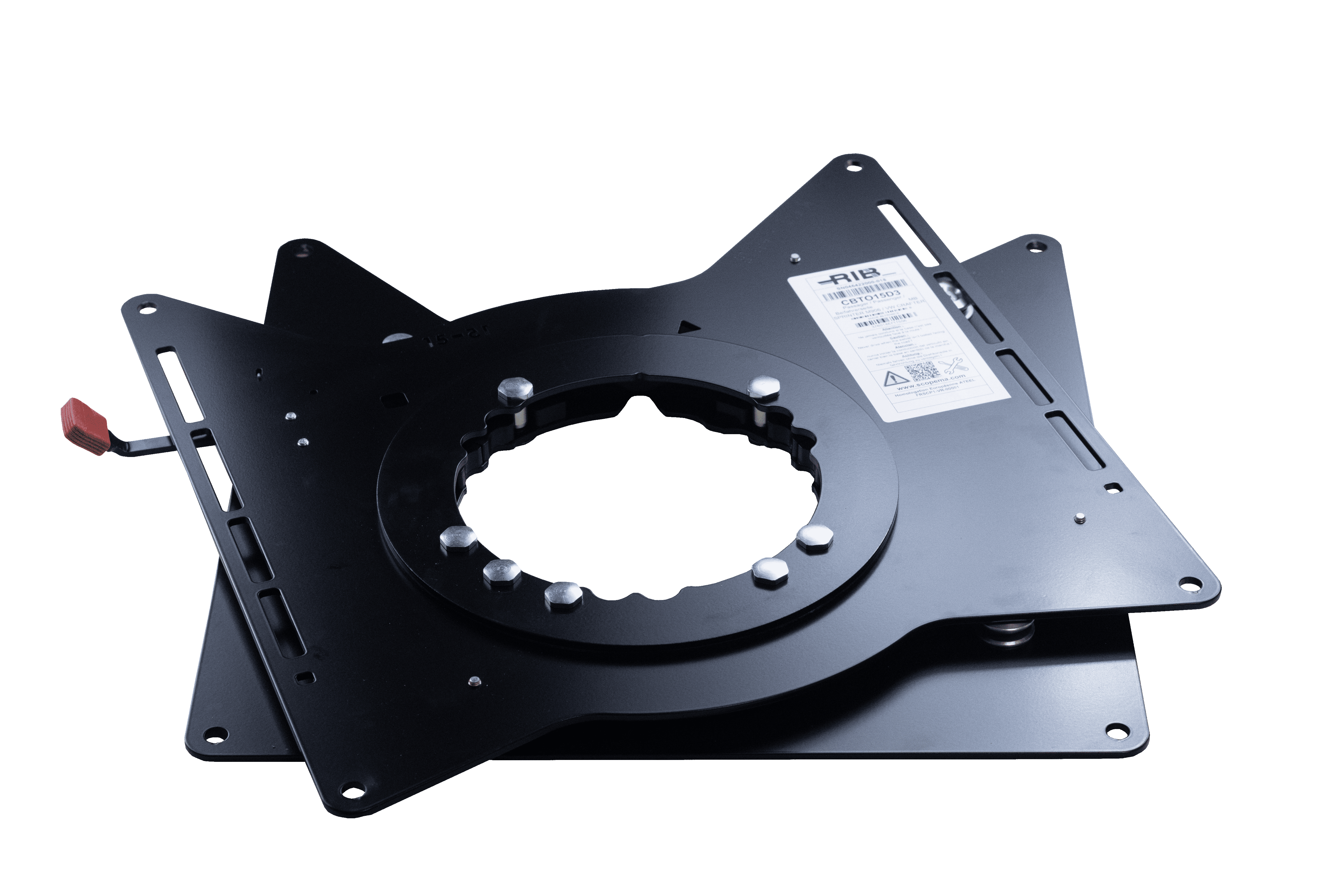

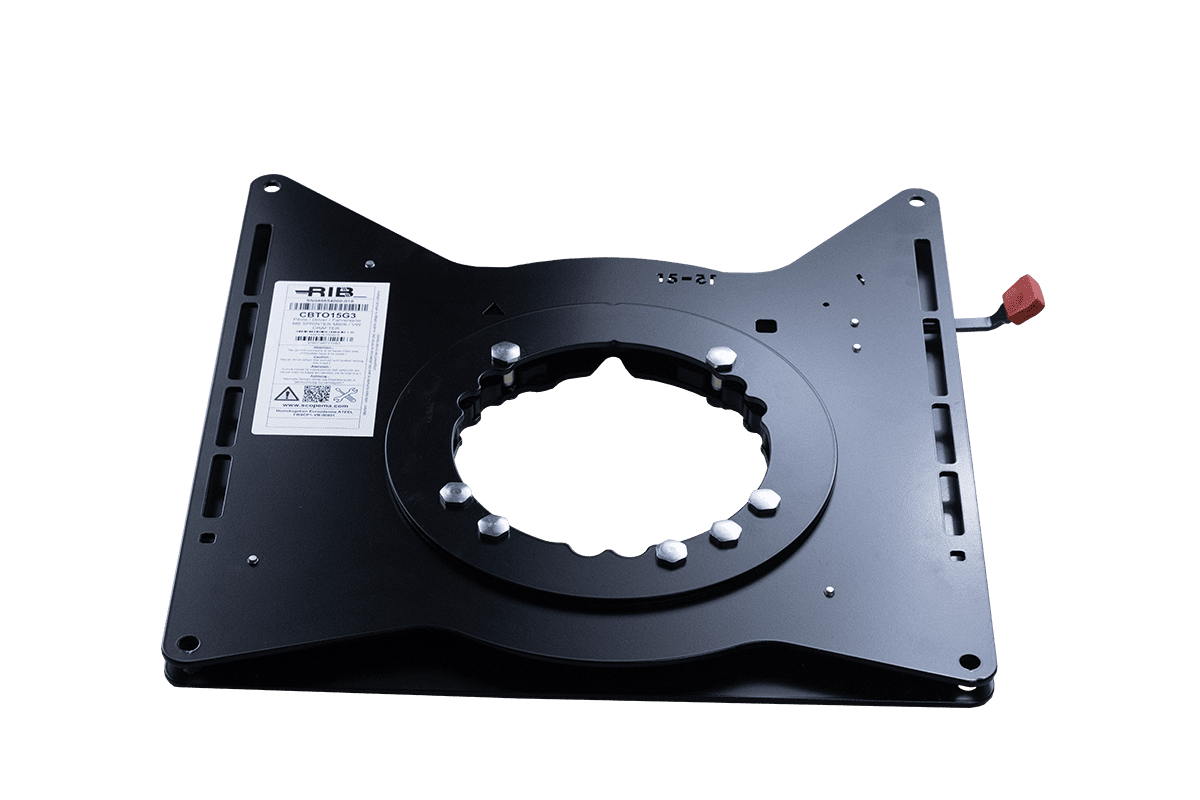

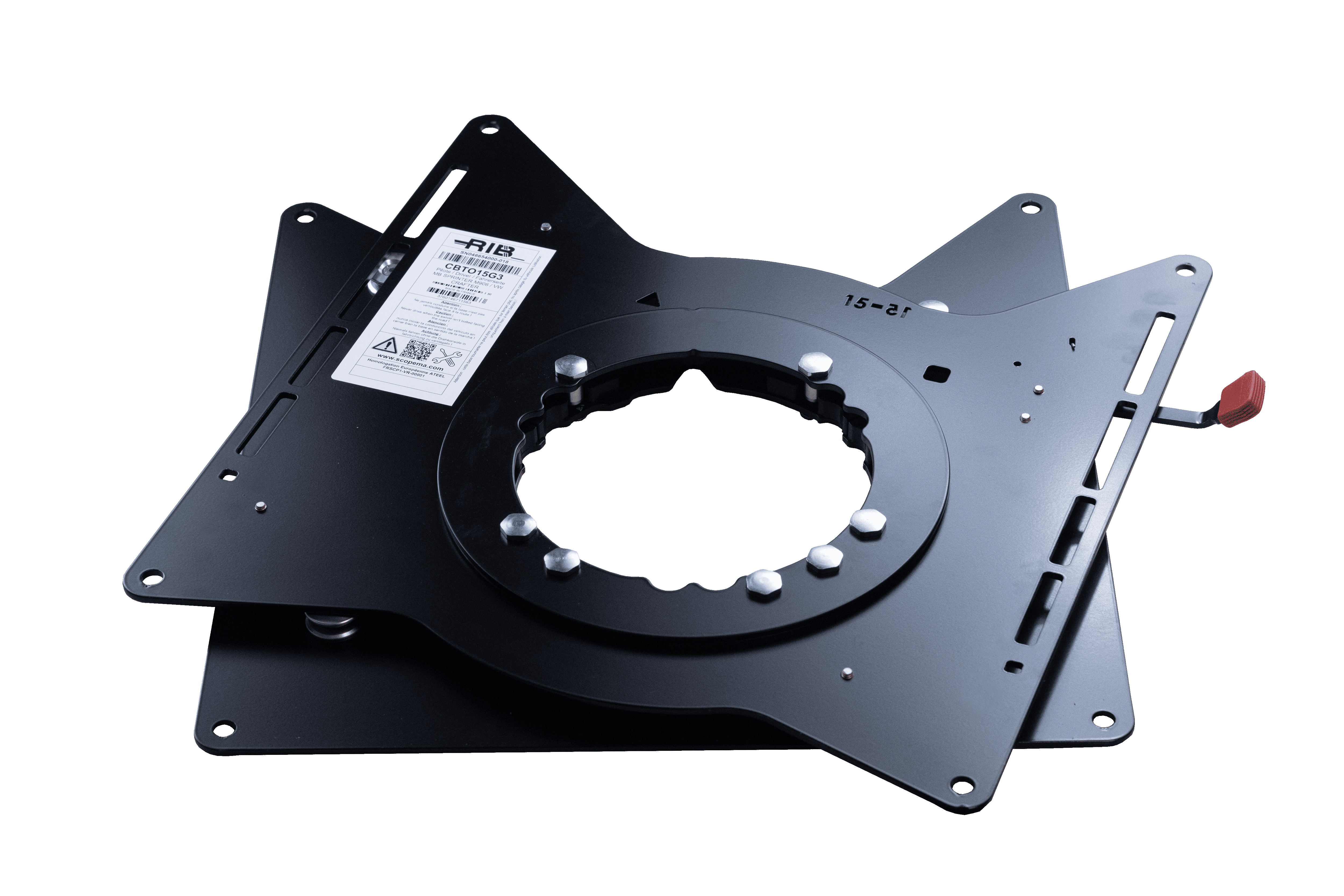

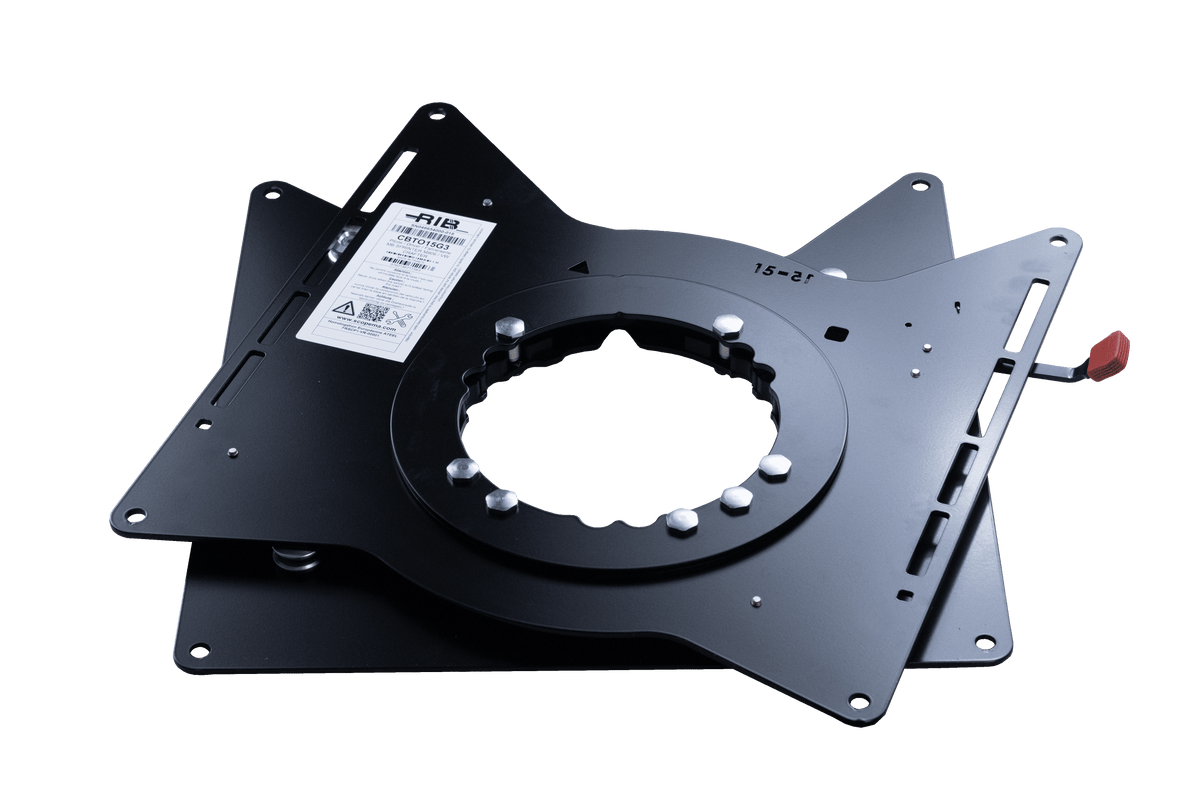

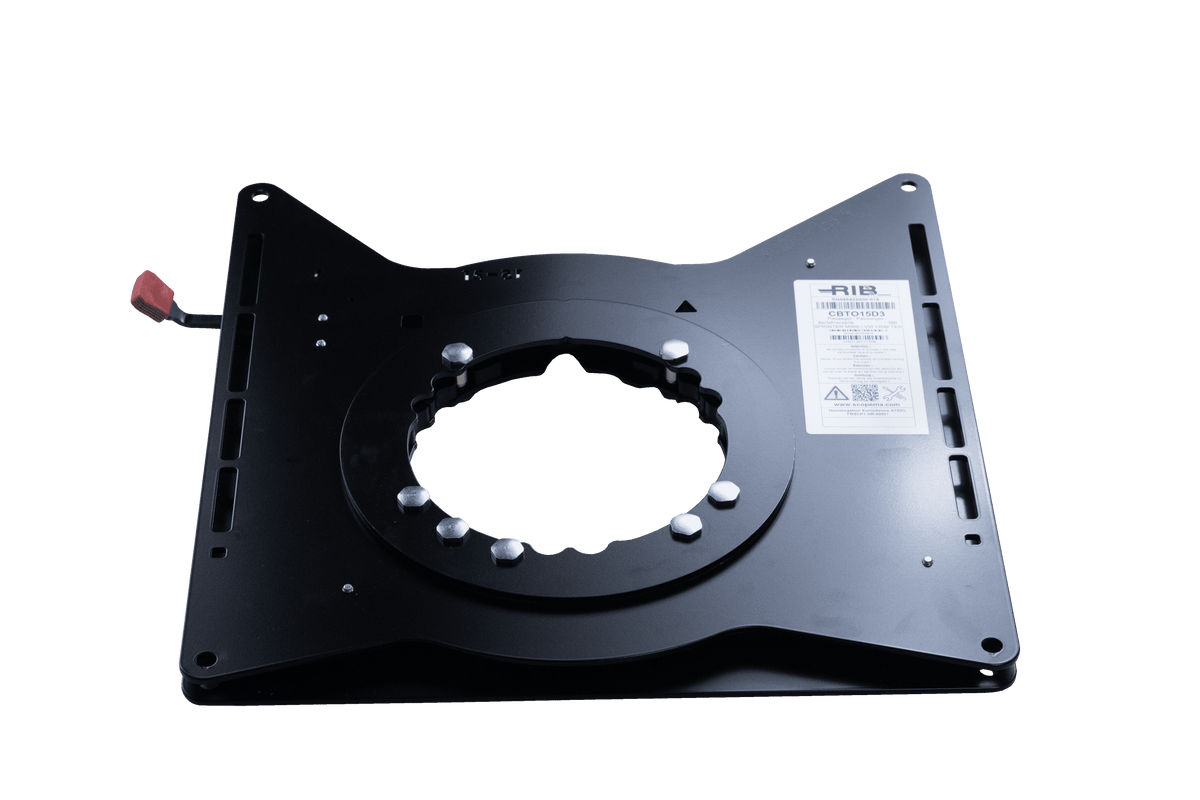

The V3 swivel uses a low profile steel design with a 21 mm swivel base height. The 5 mm steel plate construction provides a strong and stable swivel base, while the center cable pass through helps route factory seat wiring through the swivel. The swivel is designed to install using the original mounting points.

The driver side option includes the required handbrake lowering kit for driver side installation. The passenger side option does not require a handbrake lowering kit. These swivels are intended for original single front seats and are not designed for suspension seats, electric seats, or double passenger bench seats.

The swivel locks in the forward facing driving position. For safety, the seat must always be locked forward before driving.
