EcoFlow Power Kits 5kVA 48V Power System - 10kWh

EcoFlow 5kVA 48V 10kWh Power System is a fully integrated, plug and play power solution for vans, motorhomes, RVs, and off grid builds, combining high output power, 10kWh LFP battery storage, multiple charging methods, and smart system control.

Key Features:

• Fully integrated, plug and play 5kVA 48V power system for vans, motorhomes, and RVs
• Includes two 5kWh LFP batteries for 10kWh total battery capacity
• Up to 4000W output and 8000W surge power for high demand appliances
• Runs up to two 13,500 BTU RV air conditioners at the same time
• Expandable from 10kWh to 45kWh with stackable LFP batteries
• Four charging methods: shore power, solar, vehicle alternator, and Smart Generator input
• Up to 4800W solar input for fast off grid charging
• Up to 6000W alternator input when connected to the original and second alternator
• Up to 4000W shore power charging
• Up to 3200W Smart Generator input
• Compact Power Hub combines the main charging, inverter, and conversion components into one unit
• PowerInsight screen and EcoFlow app support system monitoring, energy usage, input viewing, and settings control
• Available AC/DC Smart Distribution Panel with 16 fused DC positions and 12 AC positions

Available Configurations:

• Power Hub + 10kWh Battery: Core setup with the 5kVA Power Hub and two 5kWh LFP batteries
• Power Hub + 10kWh Battery + 30A AC/DC Smart Distribution Panel: Adds organized AC/DC circuit distribution with fused DC and AC positions
• Power Hub + 10kWh Battery + PowerInsight + 30A AC/DC Smart Distribution Panel: Adds the mounted PowerInsight screen for system monitoring and control

Description:

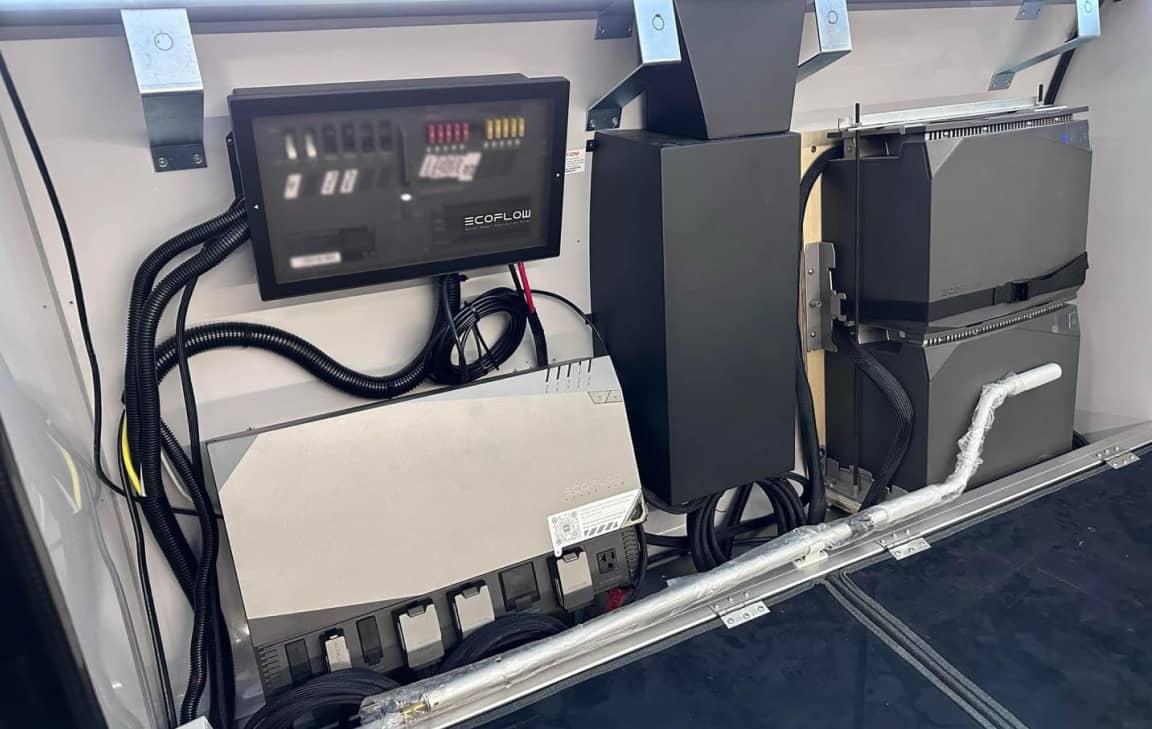

EcoFlow Power Kits Gen 2 5kVA 48V 10kWh system provides an integrated power setup for vans, motorhomes, RVs, and compact off grid builds. This kit includes the 5kVA Power Hub and two 5kWh LFP batteries, providing 10kWh of total battery capacity. The Power Hub combines key electrical components into one compact unit, including MPPT solar charge controllers, a DC DC battery charger with MPPT, an inverter charger, and a DC DC step down converter.

With up to 4000W output and 8000W surge power, the system is built to support high demand RV and van appliances, including the ability to run two 13,500 BTU RV air conditioners at the same time. Stackable LFP batteries allow capacity to expand from 10kWh to 45kWh, giving builders room to size the system around short trips, extended travel, or longer off grid use.

The system supports four charging methods: solar, vehicle alternator, shore power, and EcoFlow Smart Generator input. Charging inputs include up to 4800W solar, up to 6000W alternator input when connected to the original and second alternator, 4000W shore power charging, and 3200W Smart Generator input.

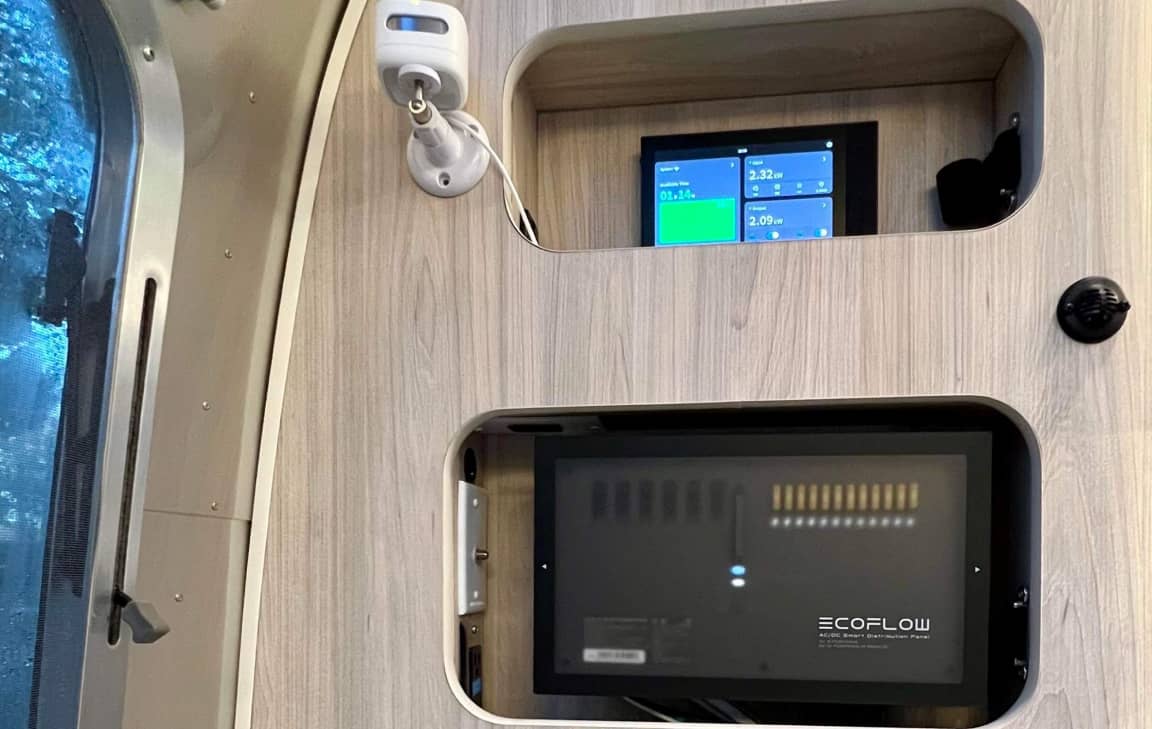

For monitoring and control, the system works with the EcoFlow app and PowerInsight screen to view energy usage, check energy input, and adjust settings. The optional AC/DC Smart Distribution Panel adds 16 fused DC positions and 12 AC positions for organized power distribution throughout the RV or van build.
