Sprinter Driver Side Aluminum Gear Rack
Couldn't load pickup availability
Direct fit driver side modular rear door gear rack for 2019+ Sprinter 180° hinge models, providing a flexible mounting base for storage boxes, recovery gear, fuel containers, and other rear door accessories.
Key Features:
- Engineered for 2019+ Mercedes Sprinter models with 180° rear door hinges
- Loads up to 180 lbs
- Wider driver side rack design for increased mounting capacity

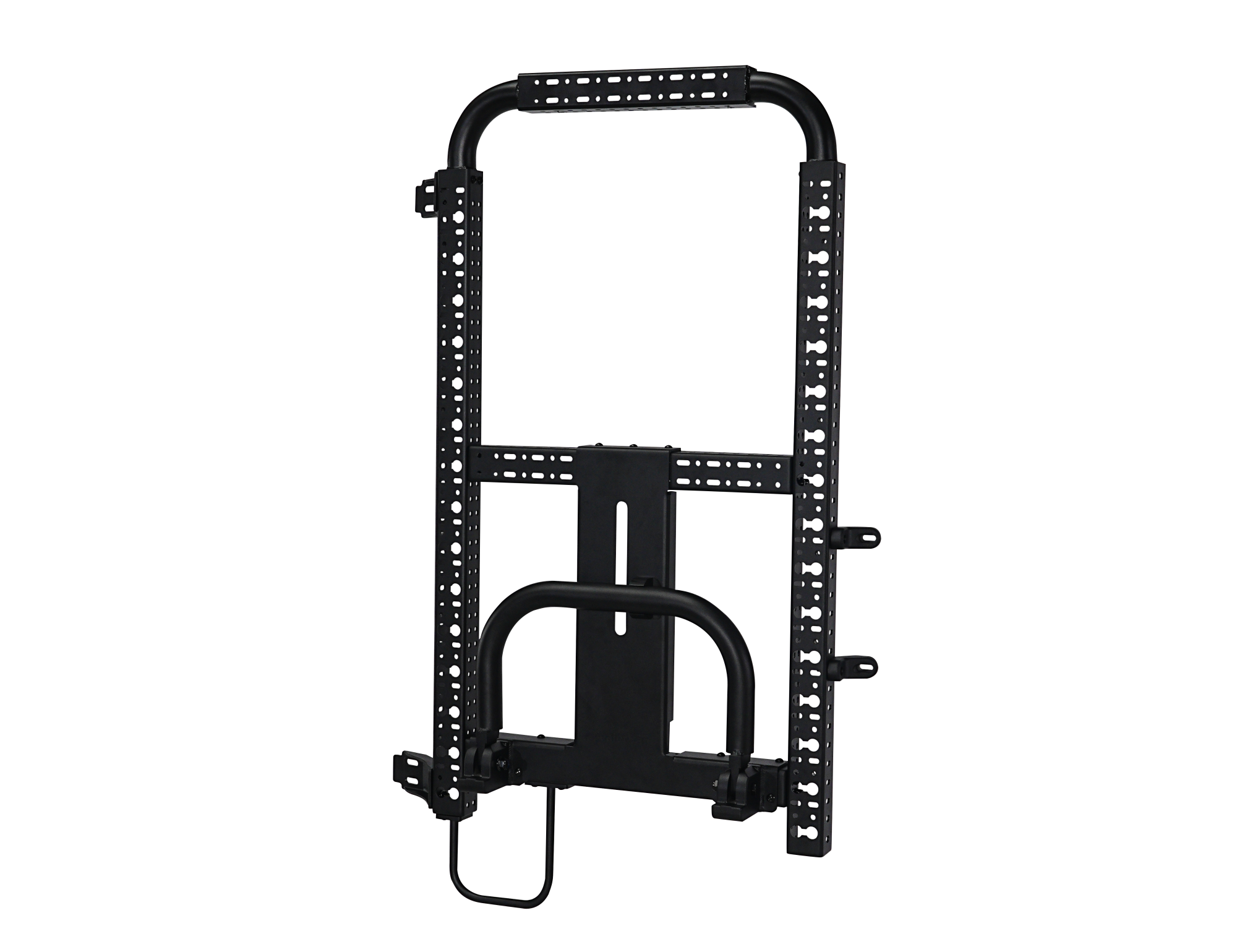

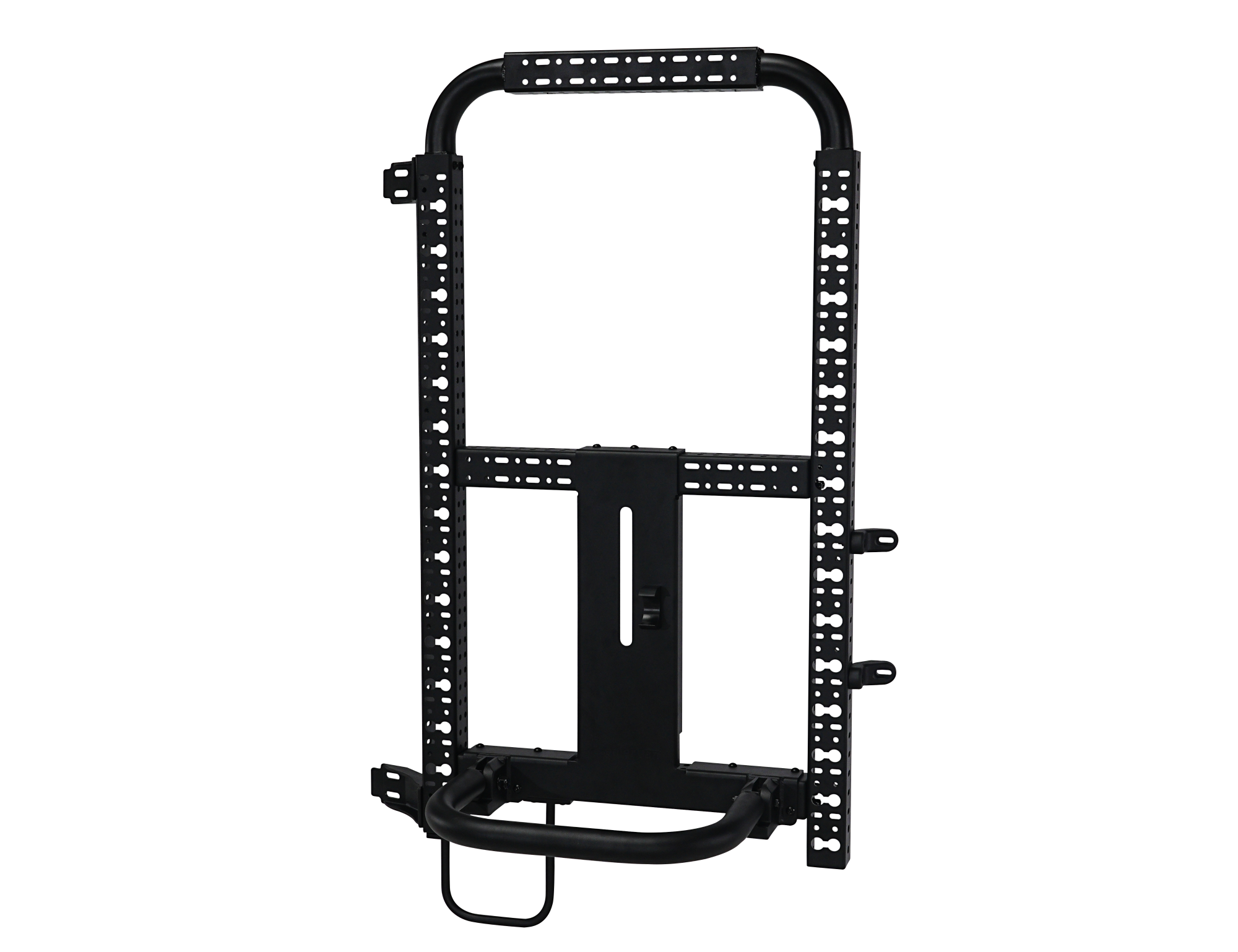

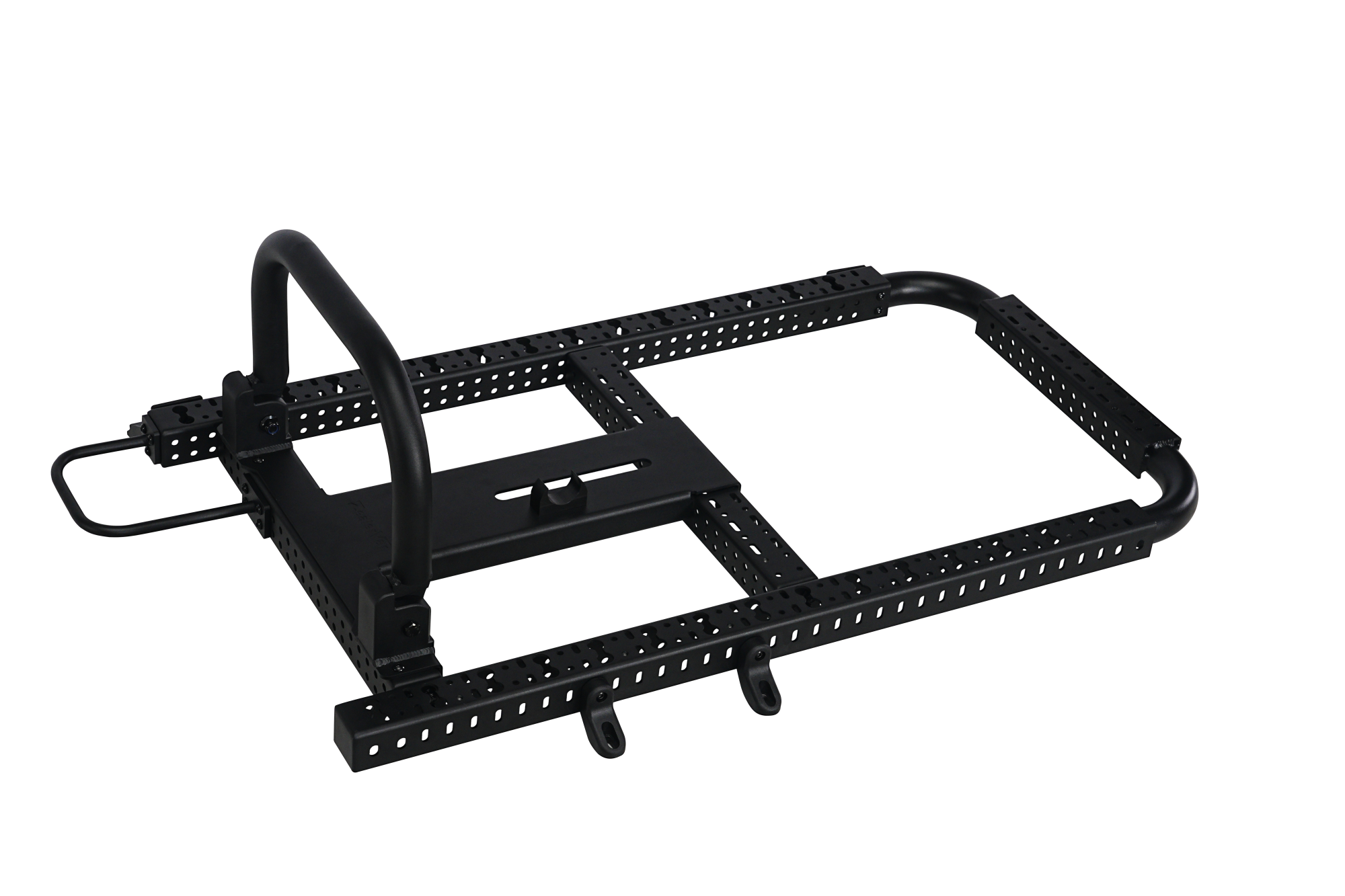

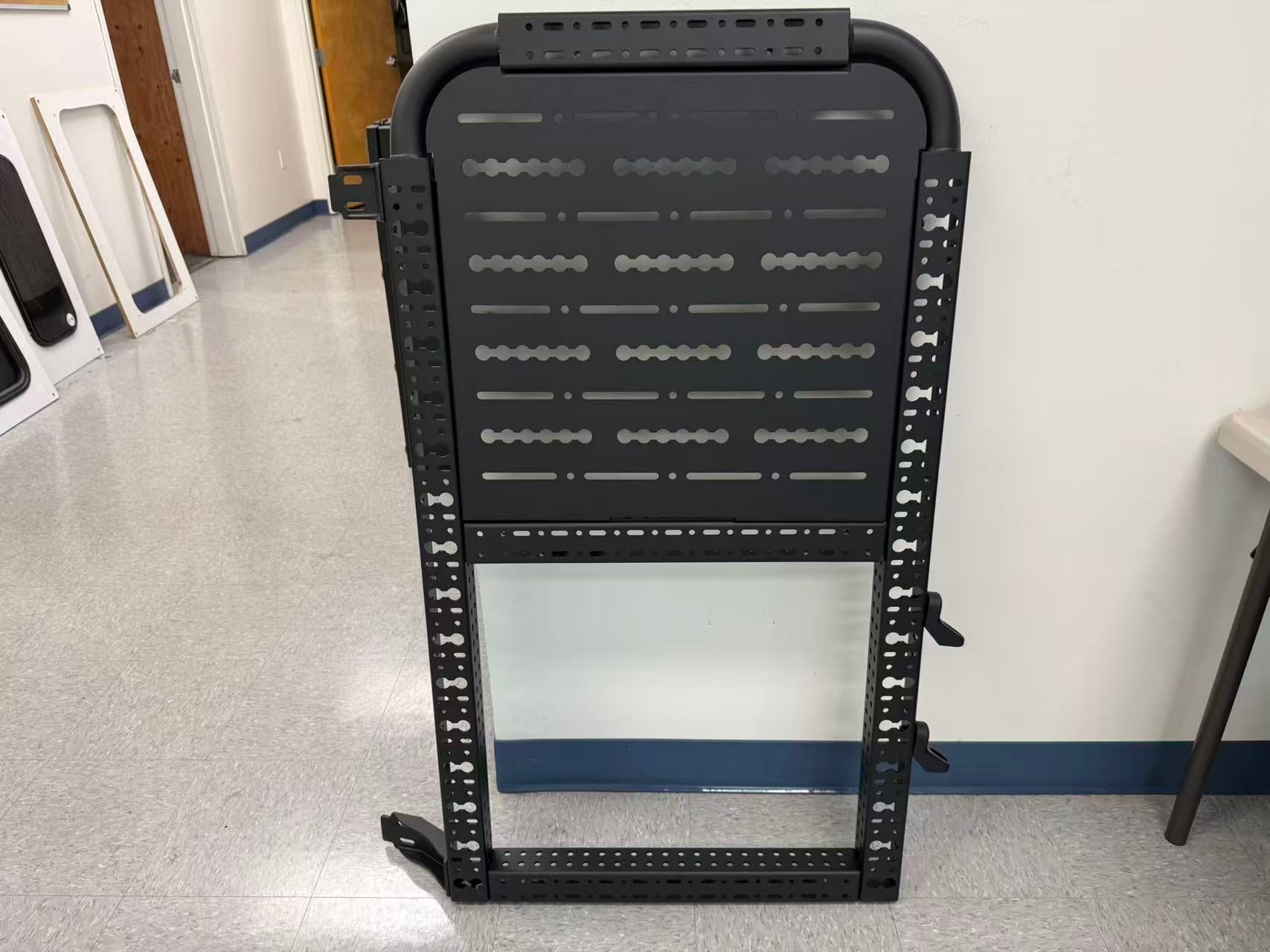

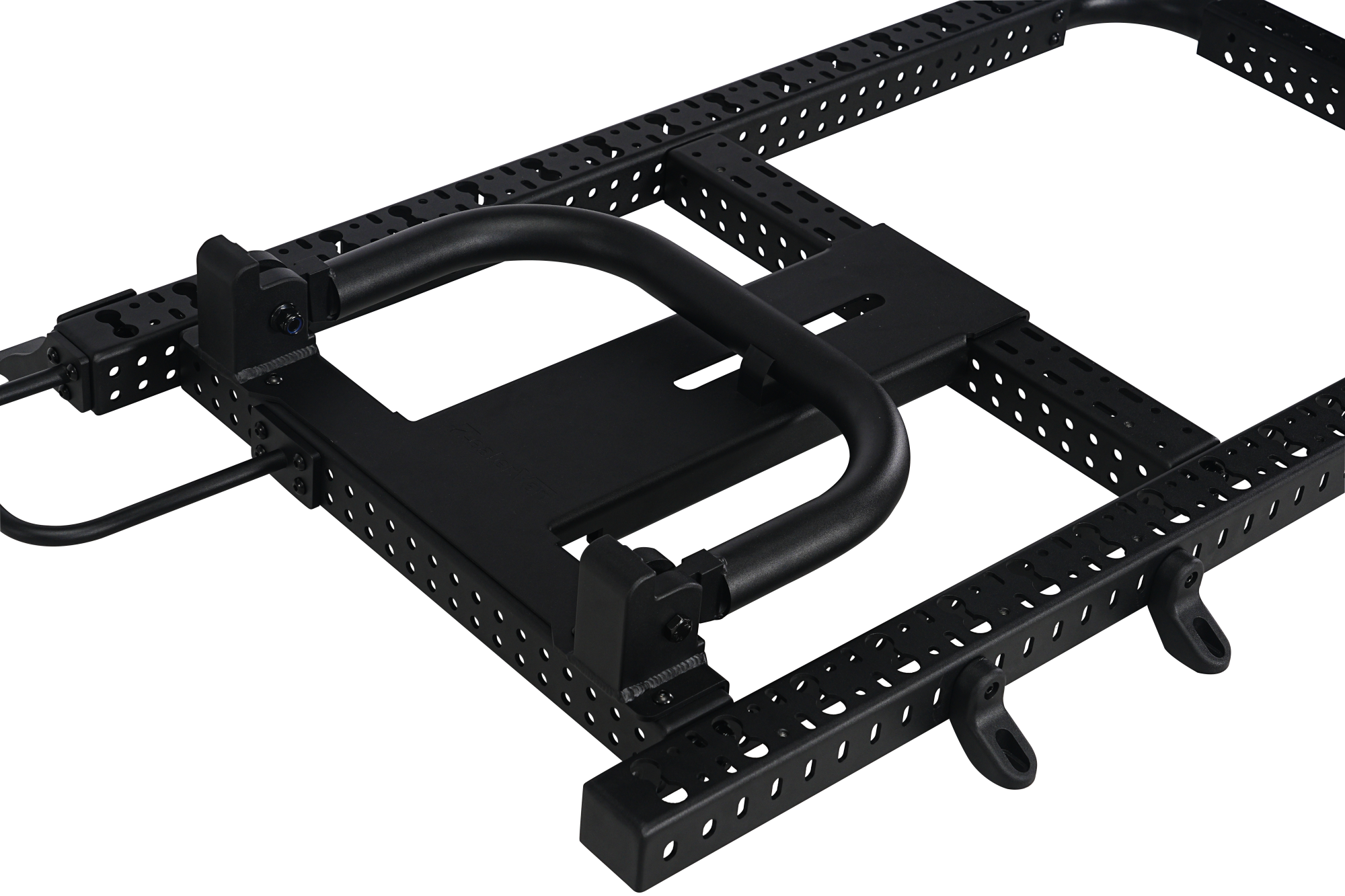

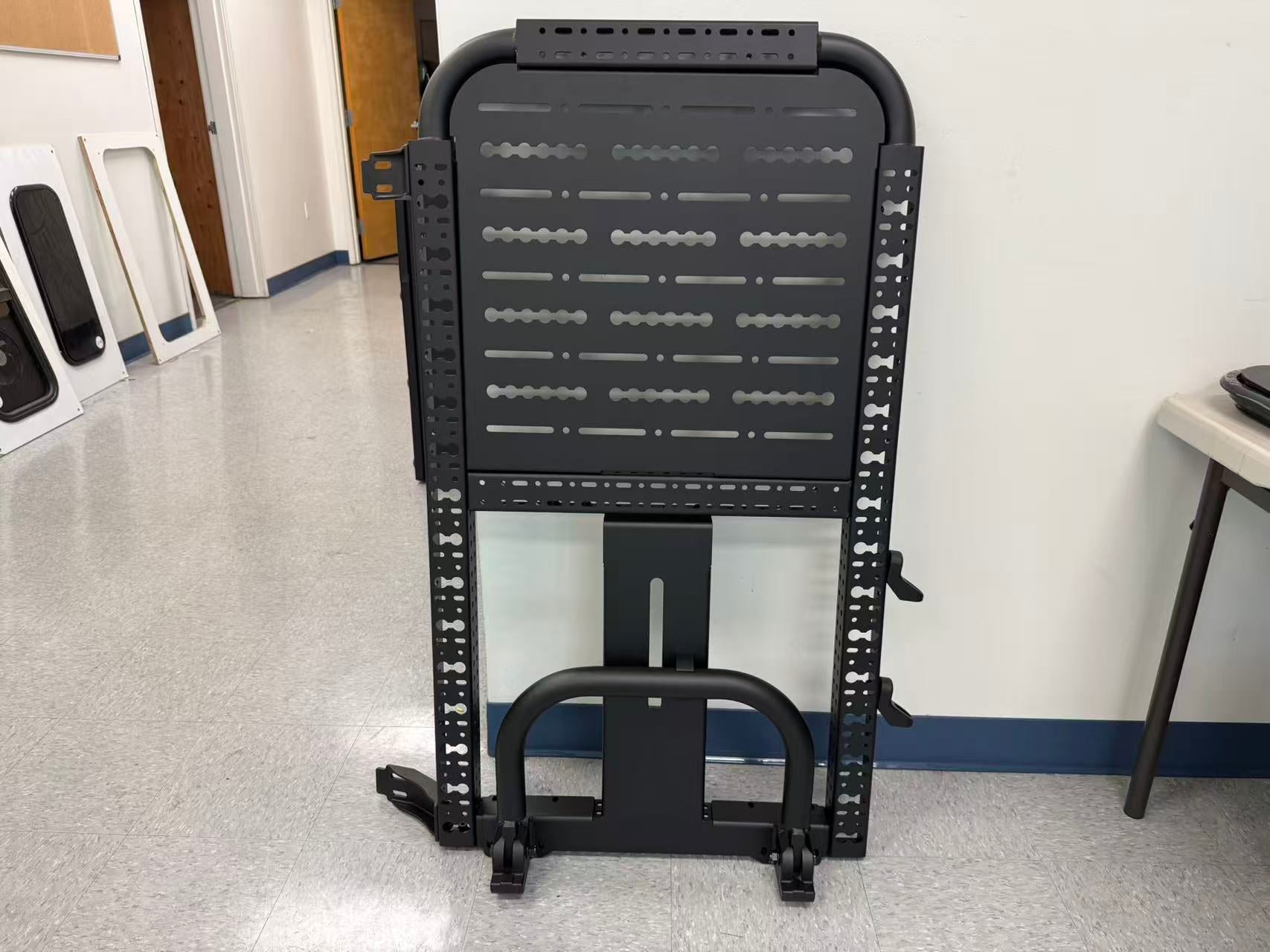

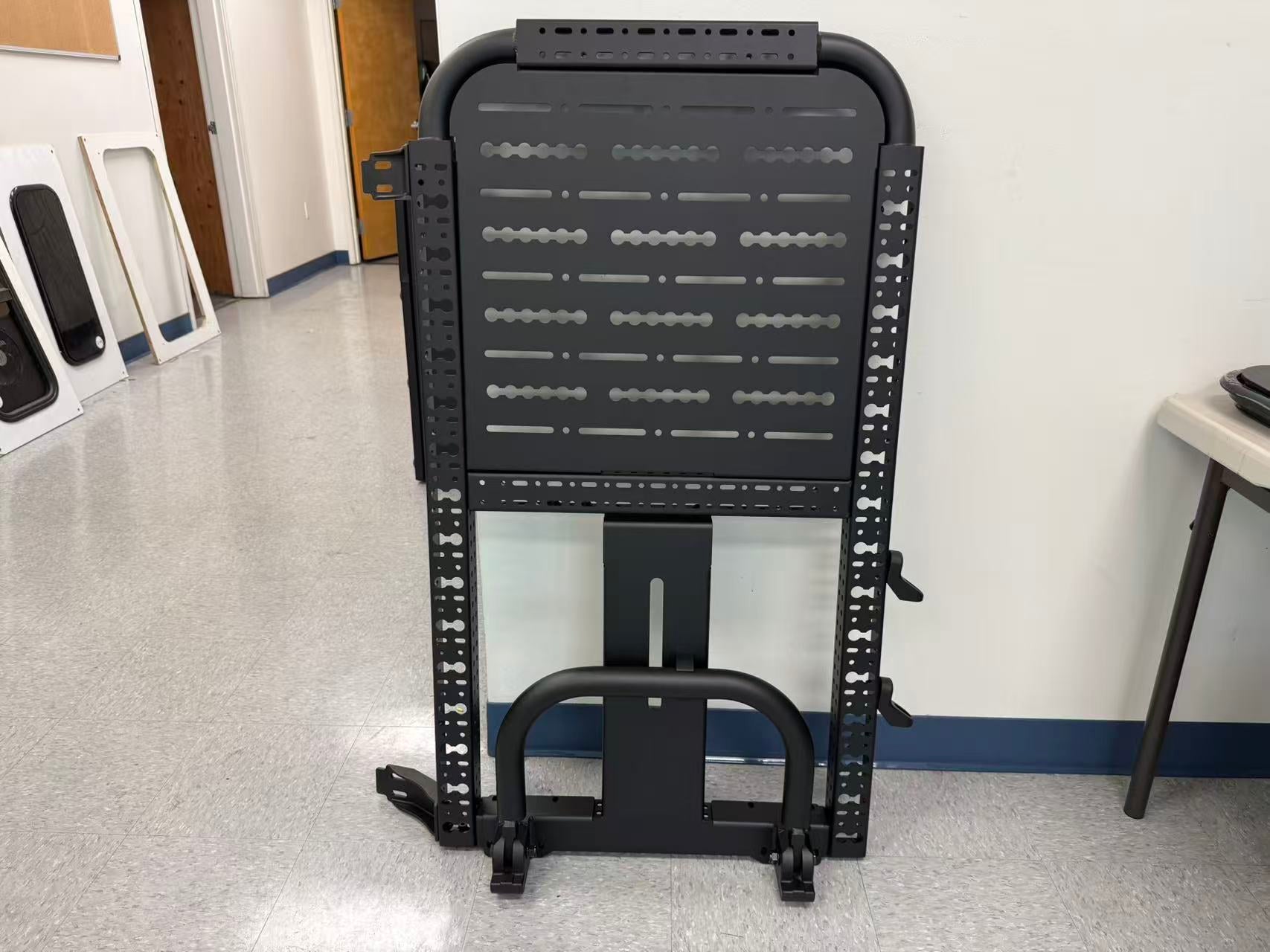

- Modular base rack supports optional top panel and a bottom spare tire carrier
- Adds exterior storage without taking up interior living or roof space
- Provides flexible capability for storage boxes, fuel containers, recovery gear, tools, and other exterior accessories
- Open MOLLE panel design offers multiple mounting points for bolts, straps, brackets, and custom accessories
- Hollow aluminum frame reduces unnecessary weight without sacrificing mounting space

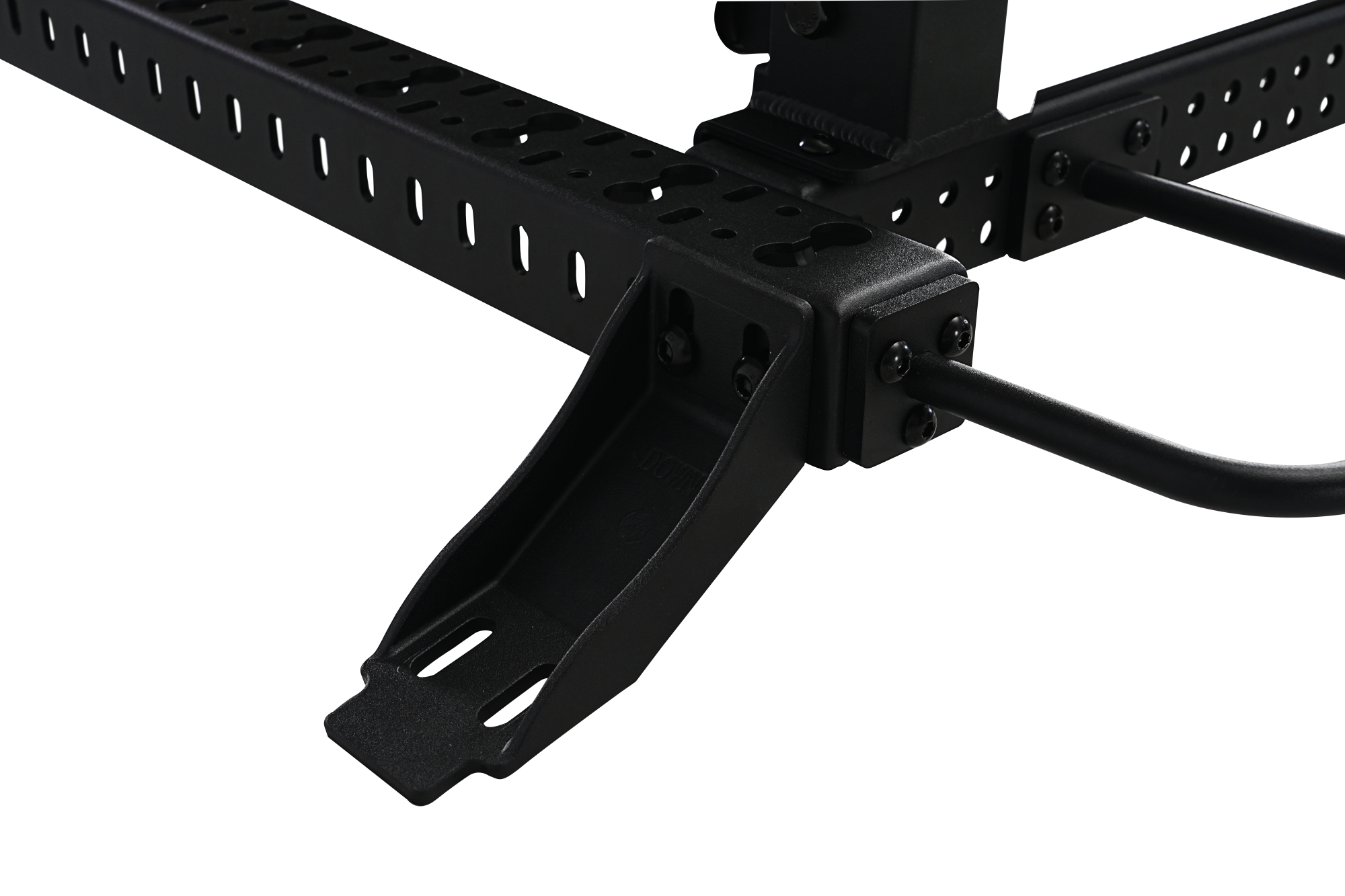

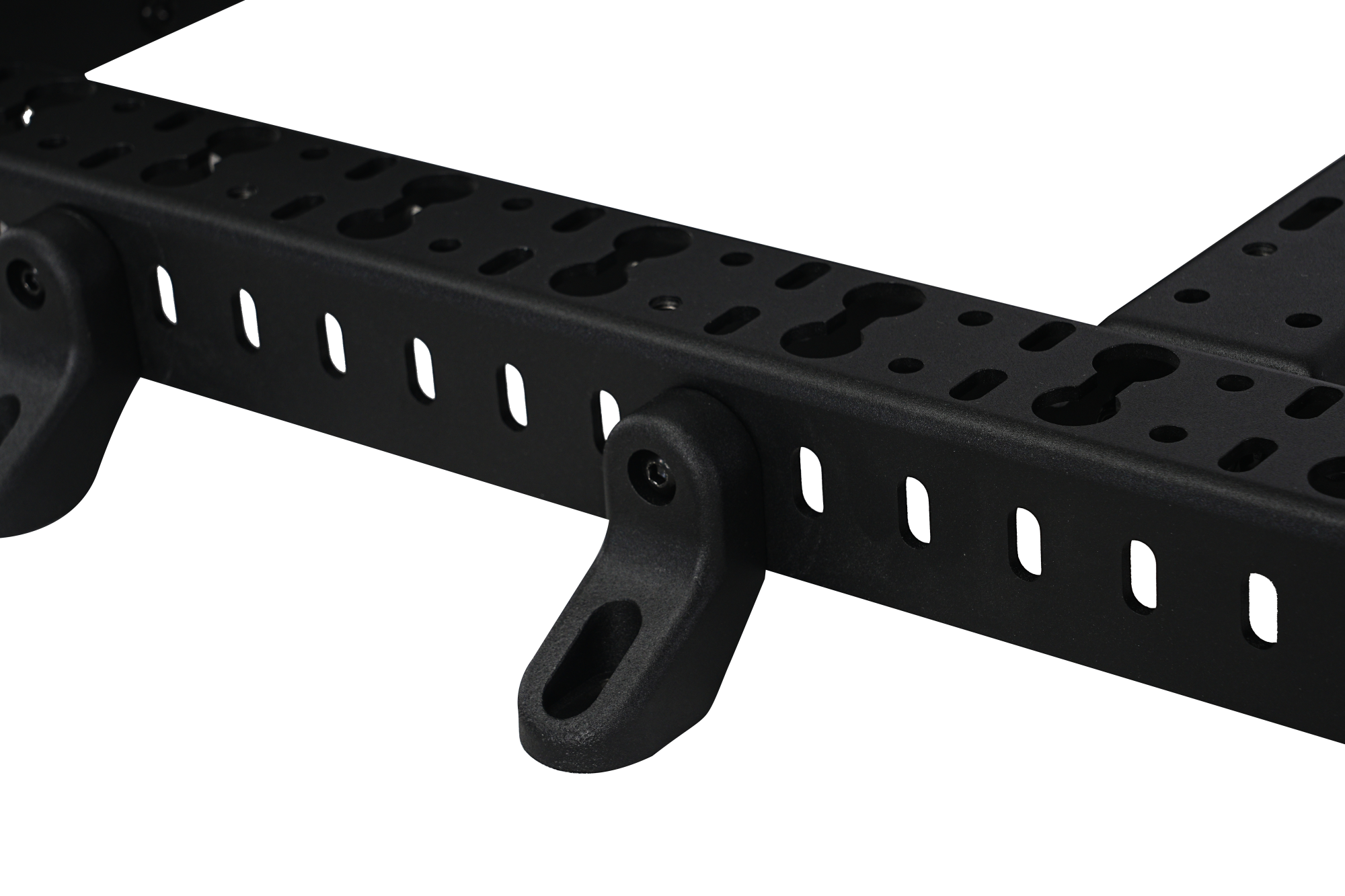

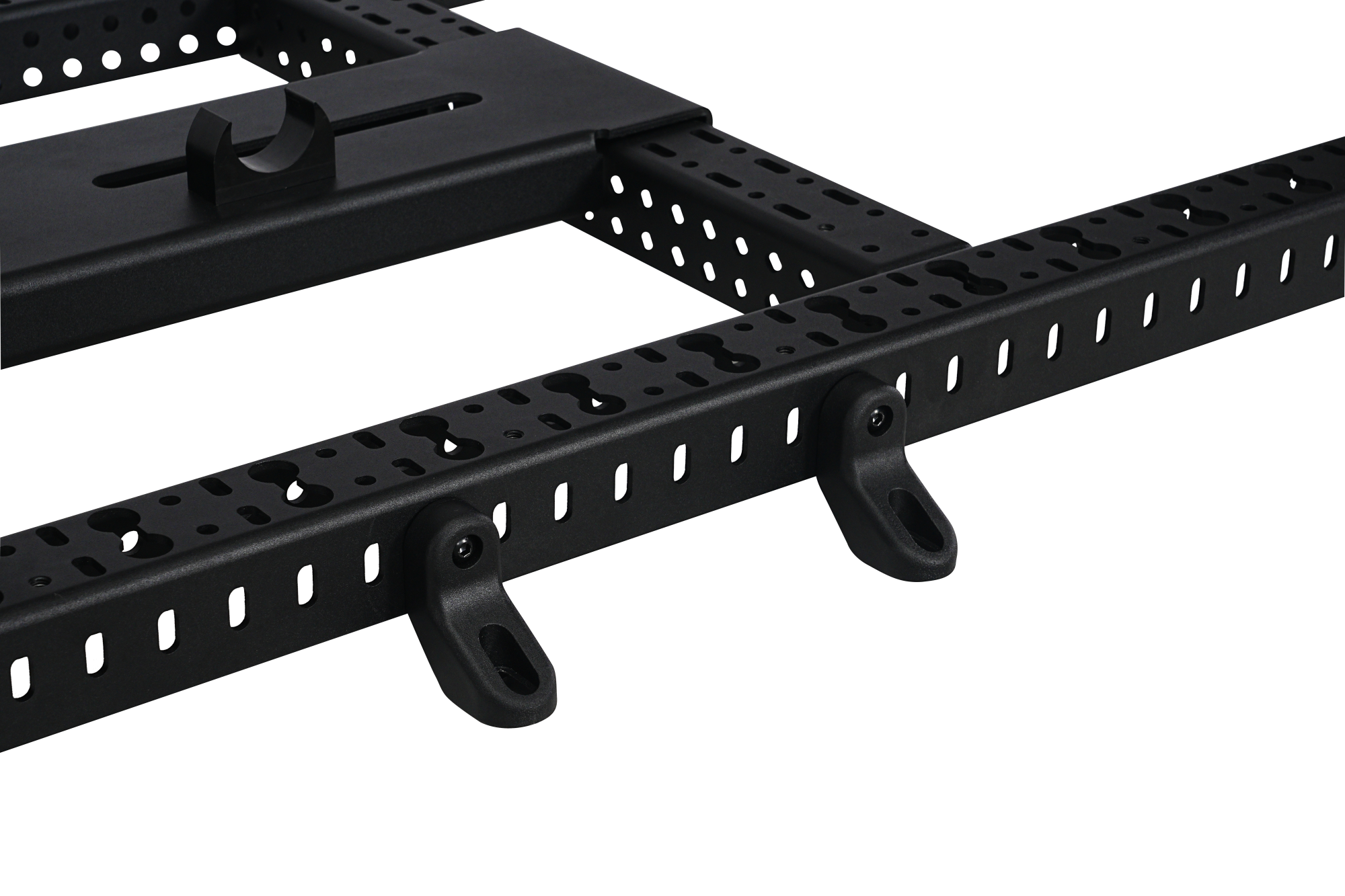

- Mounts to the factory rear door hinges on the left side, with drilling required on the right side
- Constructed from lightweight aluminum with the base rack weighing just 19.5 lbs
- Mounting hardware included
Measurements:
- Height: 49.2" (1250mm)
- Width: 27.6" (700mm)
- Weight: 19.5 lbs (8.85kg)
- Weight with tire carrier: 31.5 lbs (14.3kg)
Description:

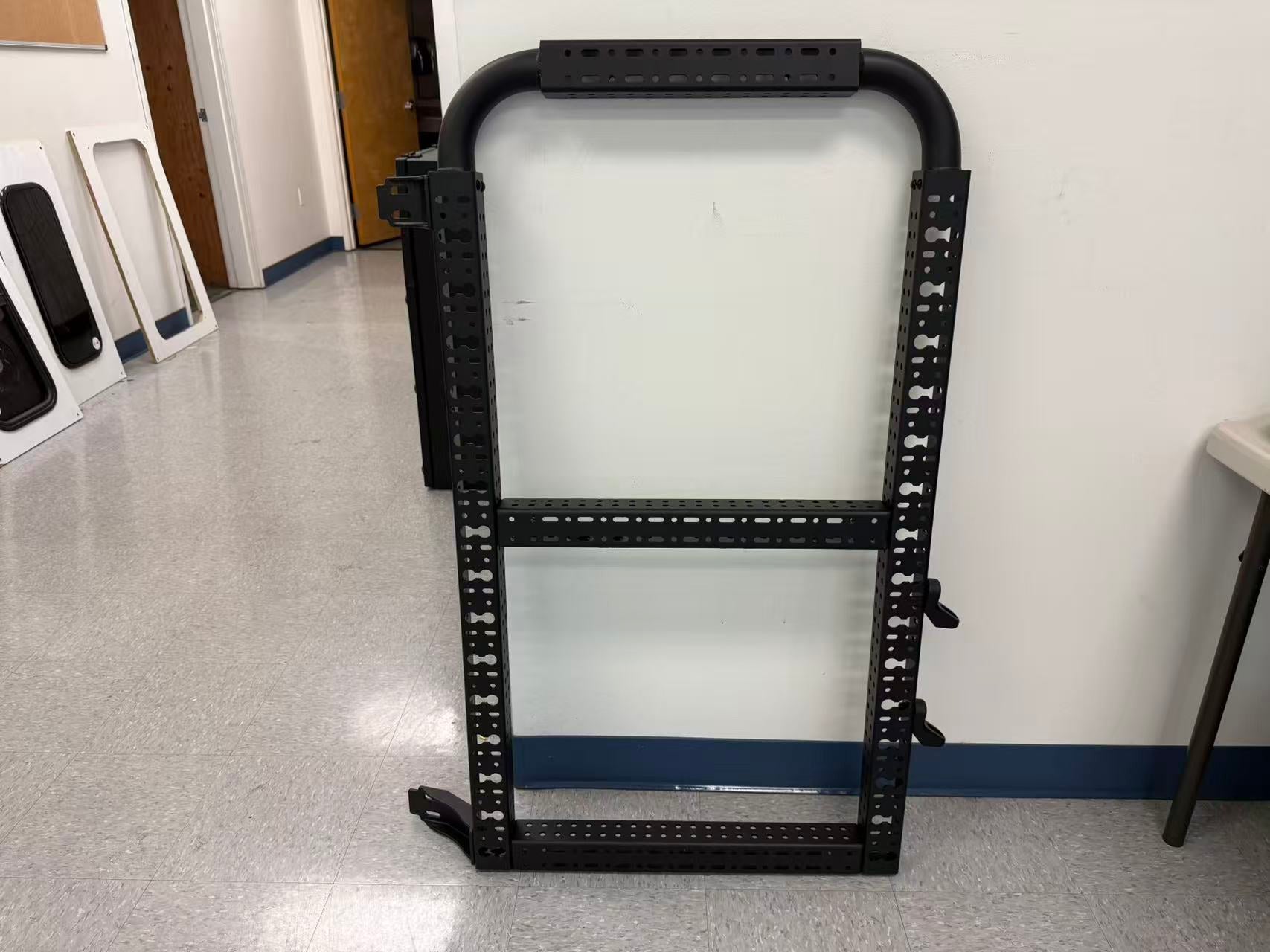

Constructed from lightweight aluminum, this driver side modular gear rack is designed for 2019+ Sprinter models equipped with 180° rear door hinges. The wider driver side rack design provides increased mounting capacity for exterior accessories, making it a practical mounting platform for storage boxes, fuel containers, recovery gear, tools, and other equipment without taking up interior living space or roof space. The rack can be used as a standalone base platform or expanded with optional accessories including a top panel and spare tire carrier.
The rack uses an open MOLLE panel design with multiple mounting points for bolts, straps, brackets, and custom accessories. Its hollow aluminum frame keeps overall weight down while maintaining a broad usable mounting surface, giving you flexible placement options for different gear setups.
Installation mounts the left side of the rack to the factory rear door hinge points, with drilling required on the right side for secure attachment. Mounting hardware is included, and the rack is designed to provide a stable exterior gear platform for everyday travel, camping, and overland use.
FAQ:
1. Does this rear door gear rack work with both 180° and 270° rear door hinges, or only the 180° hinge version?
This rack is designed for vehicles equipped with 180° rear door hinges only. Vehicles with 270° hinges can be converted by replacing the hinges using parts available from Mercedes-Benz dealers.
2. Can this gear rack be installed by one person? How long does installation typically take?
One person can complete the installation, though having two people makes the process easier. Typical installation time is around one hour.
3. Will adding gear to the rear door affect hinge durability, door sag, or the door’s ability to open and close normally?
When installed correctly and kept within the stated load limit, the rack should not negatively affect hinge function or door alignment. Always verify that the rack and mounted accessories are secure before driving.
4. Can the rear doors open fully with accessories mounted, and are there any interference concerns with the secondary door, ladders, the rear camera, or rear parking sensors?
The rear doors can still open normally when the rack is installed correctly. Clearance should always be checked based on the accessories being mounted, especially if other rear door accessories are already installed.
5. Are there any clearance considerations when mounting storage boxes, fuel containers, or other accessories—specifically around taillights, hinges, or body panels?
Yes. Clearance should be checked based on the size and position of the accessories being installed to ensure taillights remain visible, sensors are unobstructed, and the rear doors can open and close properly.
6. Can this gear rack be installed on the passenger side or is it driver side only?
Driver side only, This rack cannot be mounted on the passenger side.
7. Can the crossbeam be installed anywhere along the frame?
For the base kit, the crossbeam can be positioned anywhere along the frame. When used together with the tire carrier however, the crossbeam must be installed in the fixed position shown in the product photo.
