Roof Rack / Rail Solar Panel Mounting Bracket (Set of 4)

Secure your solar setup with these heavy duty 1/4" aluminum mounting brackets, designed to bolt solar panels directly to your vehicle's roof rack or rail system.

- Free shipping to the lower 48 states on orders $150.00 or more.

Key Features:

• Constructed from 1/4 inch high strength aluminum
• Finished with powder coating to resist rust and UV damage
• Designed to be compatible with roof rails and roof racks
• Set includes four brackets for custom configuration
• Mounting hardware included

Description:

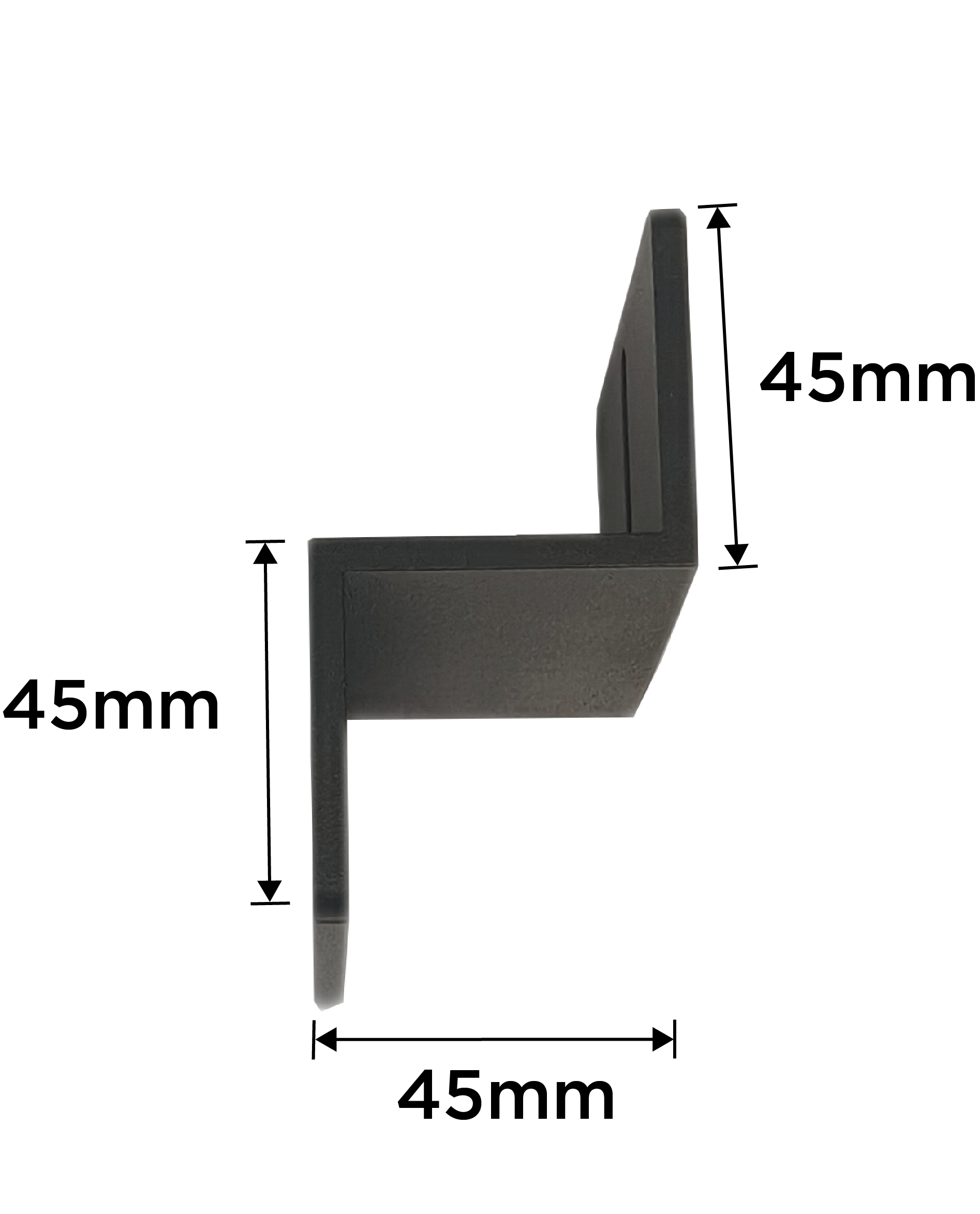

This kit includes four high strength aluminum mounting brackets for securing solar panels to roof racks or roof rails. Each bracket is made from 1/4" powder coated aluminum for durability and corrosion resistance.

Slotted mounting holes allow for straightforward alignment and compatibility with both our roof rack and roof rail channels. Bolts and screws are included.

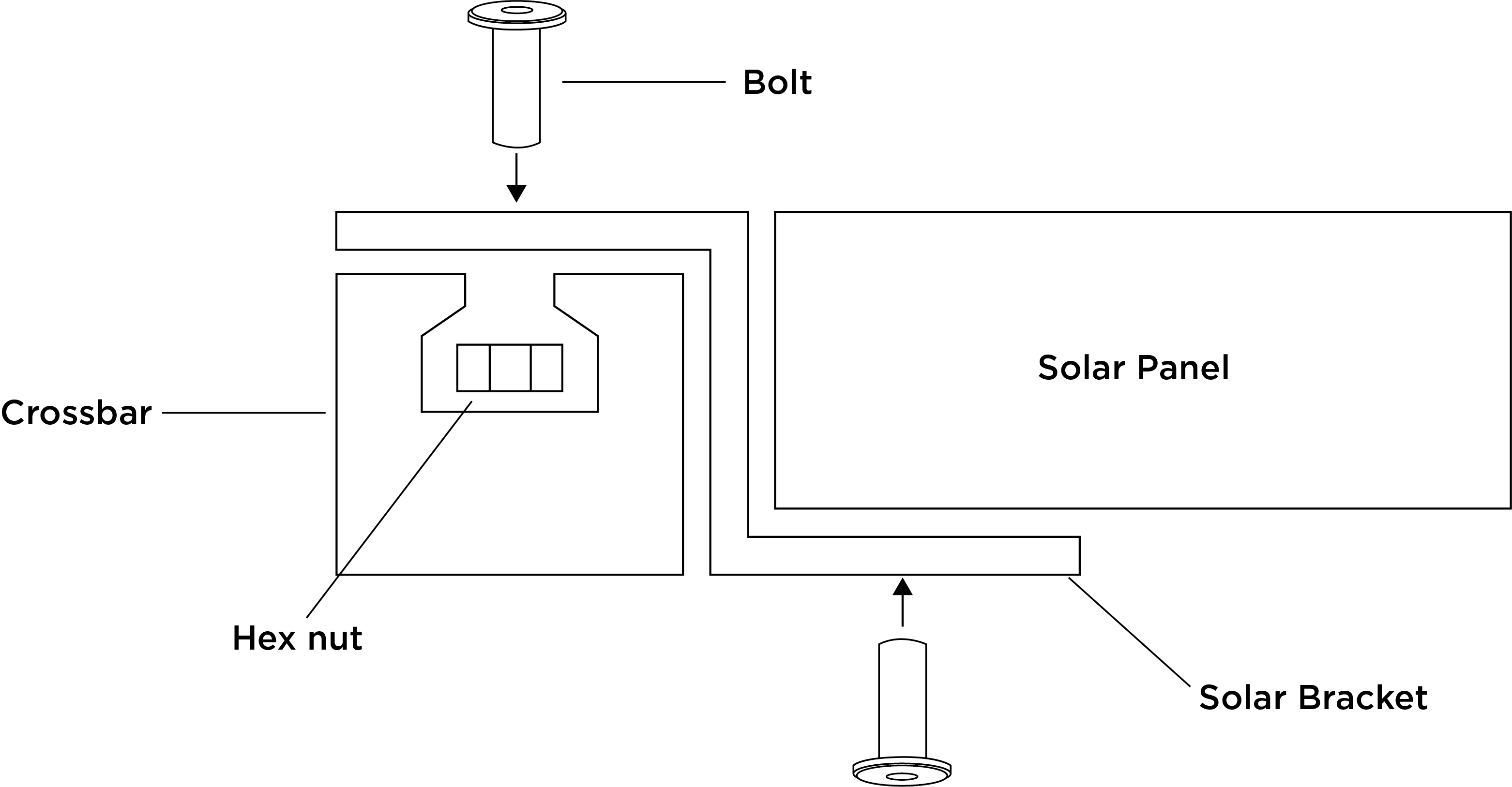

Installation Process:

1. Slide the T nut into the crossbar
2. Align the bottom side of bracket with the bottom of the solar panel, bolt and tighten
3. Align the top side of the bracket over the crossbar, bolt and tighten

Repeat the above process for each bracket.

FAQ:

Does it matter which side faces up?

No, either side works. We recommend using the single opening flange as the top side.

What is included in the package?

Four brackets, eight M6 * 16 bolts and eight 3030 series T nuts.
